Podzespoły jednorazowe

Jednorazowe zespoły transferu płynów

WMArchitect^TM jednorazowe zespoły transferu płynów optymalizują transfer płynu między urządzeniami i etapami procesu.

Nasz zespół specjalistów opracował gamę standardowych, gotowych do użycia zespołów, wszystkich zapewniających identyfikację węży i podzespołów na poziomie serii. Są produkowane, montowane i pakowane przez Watson-Marlow w pokojach czystych klasy 7 według normy ISO 14644-1.

Gotowe zespoły dostępne są z różnymi przyłączami i można je wybrać spośród listy poddanych walidacji podzespołów.

Standardowe zespoły transferu płynu obejmują:

Przedłużone elementy LoadSure

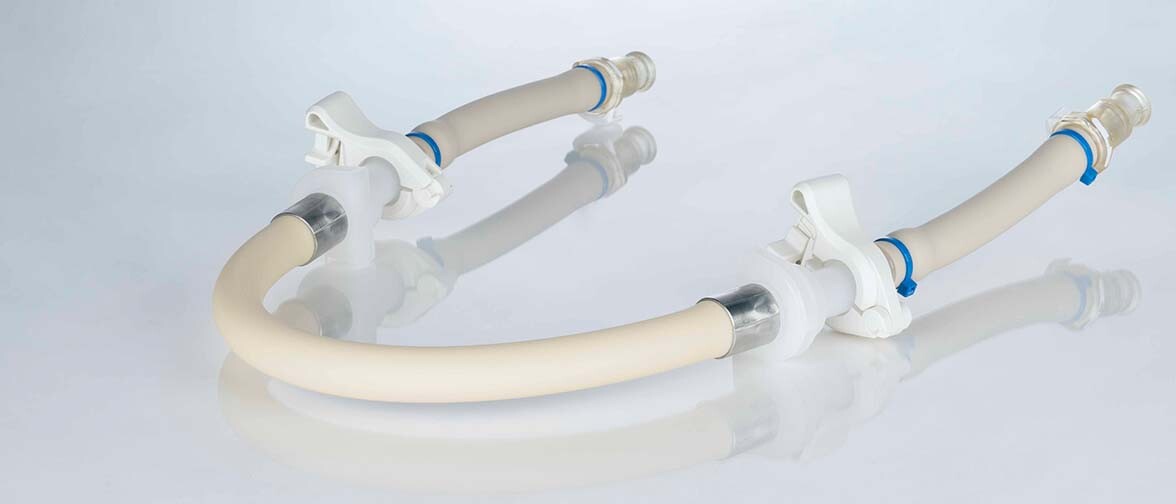

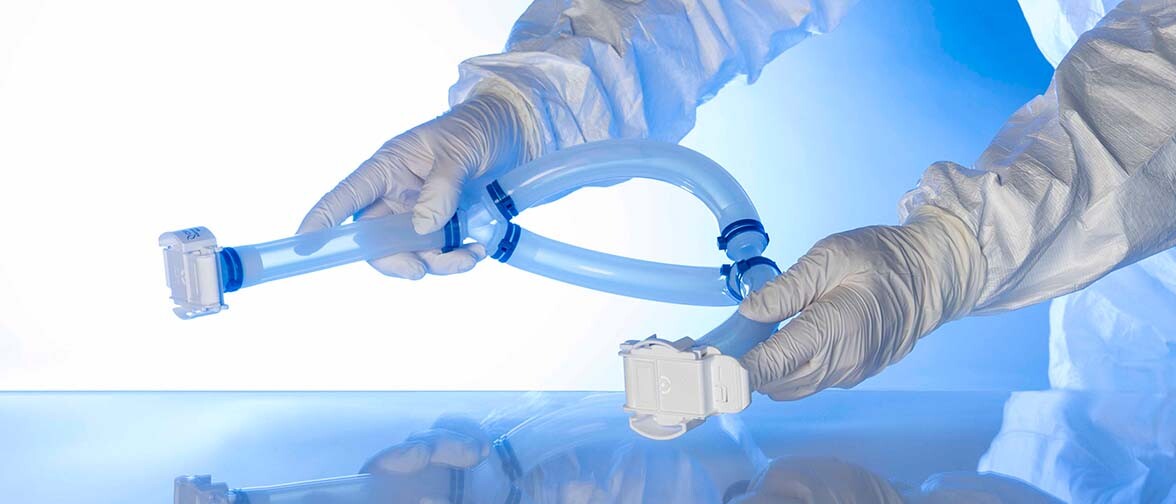

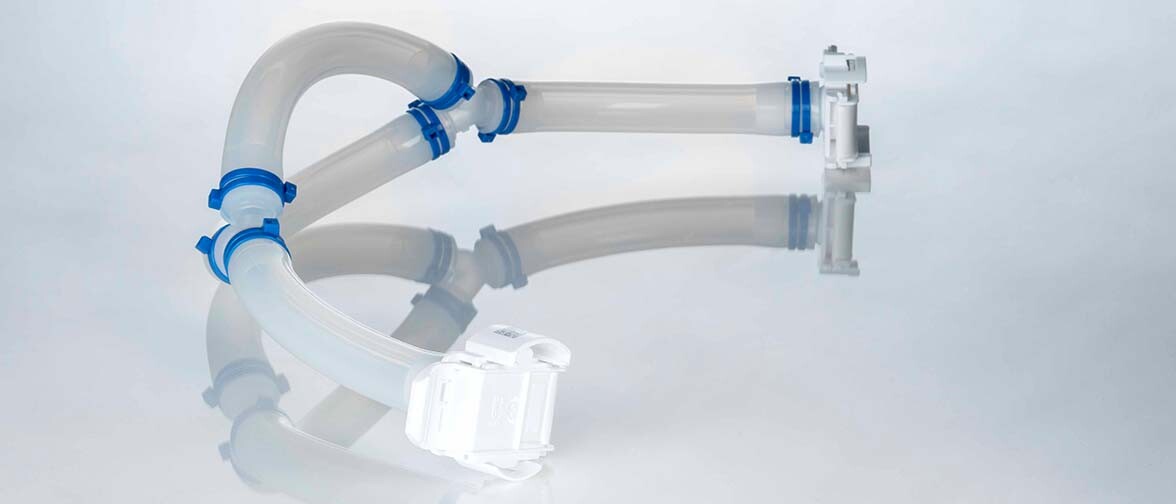

Przedłużone elementy z podwójnym Y

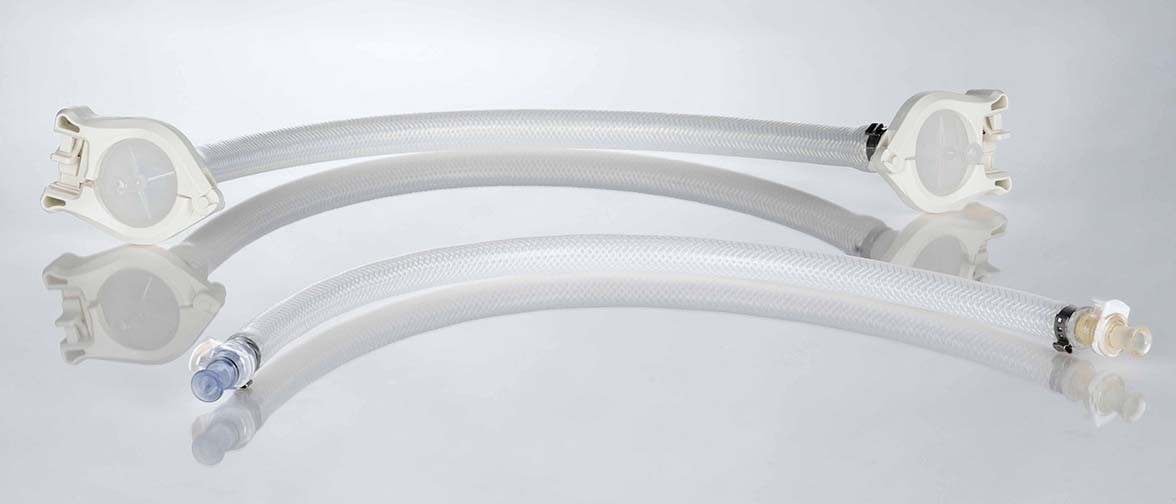

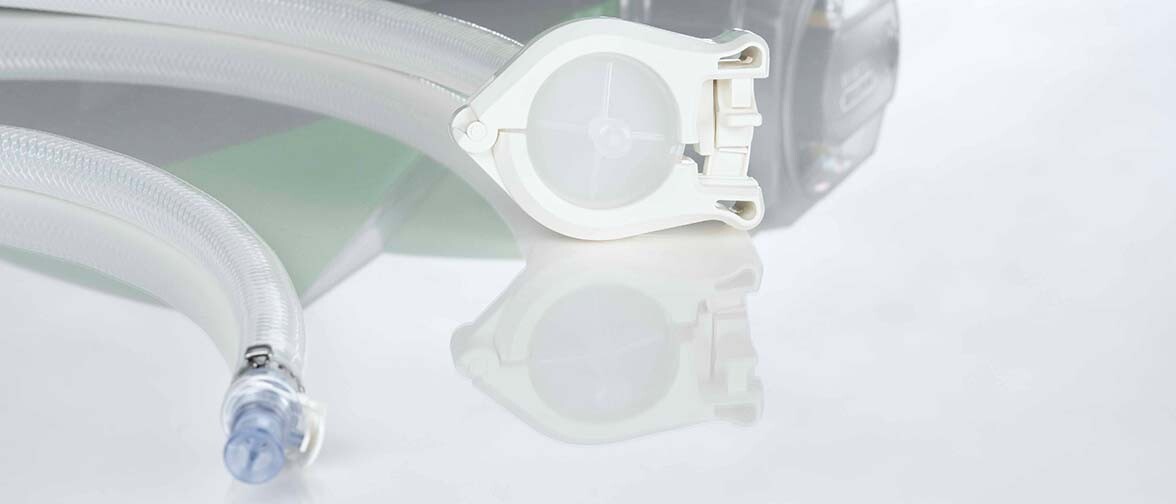

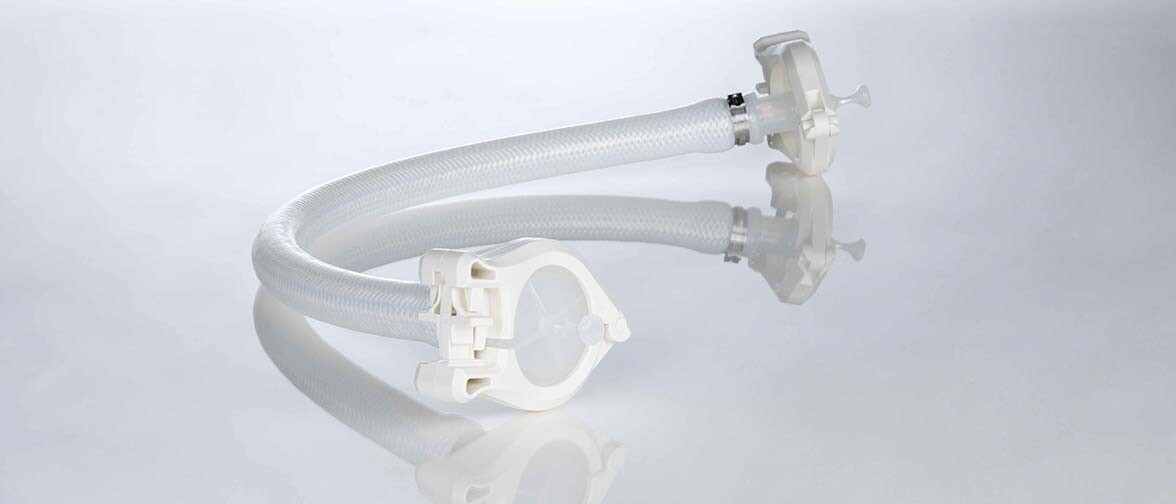

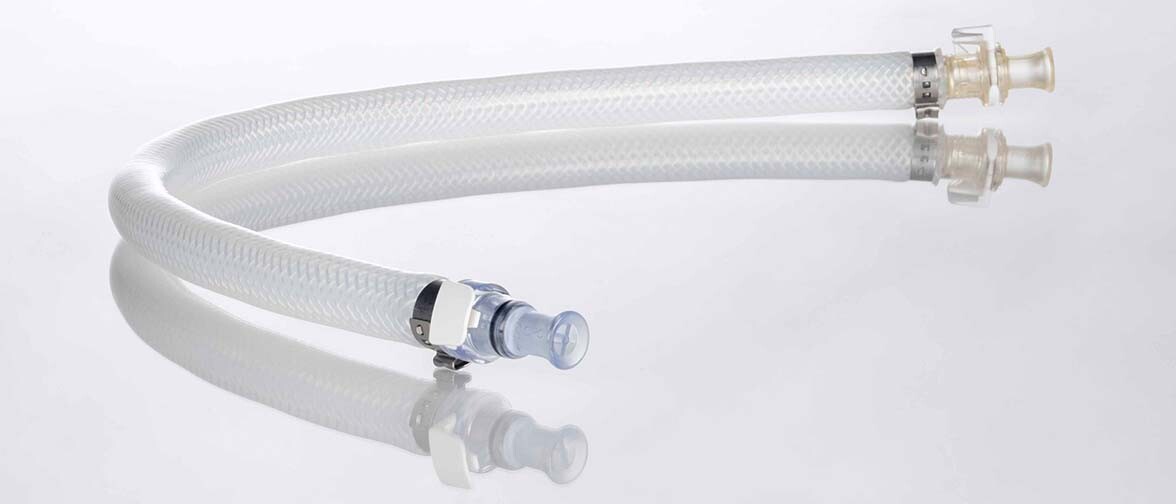

Komplety rur i węży

Zespoły oferują SAL (poziom gwarancji jałowości)^-6 , dwuletni okres jałowości podczas przechowywania i są poddawane próbom zgodnie z metodologią maks. 25 według ANSI/AAMI/ISO 11137 VD .

Cechy i korzyści

Pełna identyfikowalność produktu
Szeroka gama dostępnych podzespołów
Wsparcie dla wewnętrznych procedur walidacji
Dostępne standardowe konfiguracje pozwalające ograniczyć czasy realizacji
Standardowe zespoły sprzedawane w wersjach: nie napromieniowanej, napromieniowanej i jałowej, wedle życzenia.
Elastyczna integracja, dzięki podejściu opartemu na otwartej architekturze
Przeznaczone do wykorzystania z pompami perystaltycznymi Watson-Marlow w celu zapewnienia kompleksowego rozwiązania do obsługi płynów
Bezpieczeństwo dostaw, dzięki globalnej sieci produkcji i dostawców Watson-Marlow

Podsumowanie techniczne

Certyfikaty i zgodność

ADCF, ISO 10993, USP <788>, USP <85>, USP klasa VI

Tabela Podsumowanie techniczne zawiera listę funkcji dostępnych w gamie. Informacje dotyczące konkretnego modelu można znaleźć w zakładce „Dane techniczne”.

Specyfikacja techniczna

	Transfer płynu - komplety węży	Transfer płynu - przedłużone elementy typu podwójny Y	Transfer płynu - przedłużone elementy LoadSure
Certyfikaty i zgodność	ADCF, ISO 10993, USP <788>, USP <85>, USP klasa VI	ADCF, ISO 10993, USP <788>, USP <85>, USP klasa VI	ADCF, ISO 10993, USP <788>, USP <85>, USP klasa VI

Węże	Elastomer termoplastyczny, SEBS, Silikon
Materiał złącza	Poliwęglan (PC), Polypropylene (polipropylen), Polysulfone (UDEL 1700), PVDF

Broszury

WMArchitect Brochure (EN).pdf
PDF - 931,3kb

Arkusz danych

WMArchitect Single-Use Fluid Transfer Tubing and Hose Sets datasheets.pdf
PDF - 402kb
WMArchitect Single-Use Fluid Transfer Double-Y Elements datasheet.pdf
PDF - 365,1kb
WMArchitect Single-Use Fluid Transfer Loadsure Elements datasheet.pdf
PDF - 354,9kb

Kody produktu

Part Number	Part Name (Description)	Pumps	Pumphead
33-0913-211112	Pumpsil Kit - 3.2x1.6mm - .3m long w/TC-NON	500 Series	520R
33-0913-211113	Pumpsil Kit - 3.2x1.6mm - .3m long w/MPC-NON	500 Series	520R
33-0913-211114	Pumpsil Kit - 3.2x1.6mm - .3m long w/Aseptiquik-NON	500 Series	520R
33-0913-211122	Pumpsil Kit - 6.4x1.6mm - .3m long w/TC-NON	Transfer use only
33-0913-211123	Pumpsil Kit - 6.4x1.6mm - .3m long w/MPC-NON	Transfer use only
33-0913-211124	Pumpsil Kit - 6.4x1.6mm - .3m long w/Aseptiquik-NON	Transfer use only
33-0913-211212	Pumpsil Kit - 3.2x1.6mm - 1m long w/TC-NON	500 Series	520R
33-0913-211213	Pumpsil Kit - 3.2x1.6mm - 1m long w/MPC-NON	500 Series	520R
33-0913-211214	Pumpsil Kit - 3.2x1.6mm - 1m long w/Aseptiquik-NON	500 Series	520R
33-0913-211222	Pumpsil Kit - 6.4x1.6mm - 1m long w/TC-NON	500 Series	520R
33-0913-211223	Pumpsil Kit - 6.4x1.6mm - 1m long w/MPC-NON	500 Series	520R
33-0913-211224	Pumpsil Kit - 6.4x1.6mm - 1m long w/Aseptiquik-NON	500 Series	520R
33-0913-211232	Pumpsil Kit - 9.6x3.2mm - 1m long w/TC-NON	600 Series	620R
33-0913-211233	Pumpsil Kit - 9.6x3.2mm - 1m long w/MPC-NON	600 Series	620R
33-0913-211234	Pumpsil Kit - 9.6x3.2mm - 1m long w/Aseptiquik-NON	600 Series	620R
33-0913-211242	Pumpsil Kit - 12.7x3.2mm - 1m long w/TC-NON	600 Series	620R
33-0913-211243	Pumpsil Kit - 12.7x3.2mm - 1m long w/MPC-NON	600 Series	620R
33-0913-211244	Pumpsil Kit - 12.7x3.2mm - 1m long w/Aseptiquik-NON	600 Series	620R
33-0913-211252	Pumpsil Kit - 19x4.8mm - 1m long w/TC-NON	700 Series	720R
33-0913-211253	Pumpsil Kit - 19x4.8mm - 1m long w/MPC-NON	700 Series	720R
33-0913-211254	Pumpsil Kit - 19x4.8mm - 1m long w/Aseptiquik-NON	700 Series	720R
33-0913-211312	Pumpsil Kit - 3.2x1.6mm - 2.5m long w/TC-NON	500 Series	520R
33-0913-211313	Pumpsil Kit - 3.2x1.6mm - 2.5m long w/MPC-NON	500 Series	520R
33-0913-211314	Pumpsil Kit - 3.2x1.6mm - 2.5m long w/Aseptiquik-NON	500 Series	520R
33-0913-211322	Pumpsil Kit - 6.4x1.6mm - 2.5m long w/TC-NON	500 Series	520R
33-0913-211323	Pumpsil Kit - 6.4x1.6mm - 2.5m long w/MPC-NON	500 Series	520R
33-0913-211324	Pumpsil Kit - 6.4x1.6mm - 2.5m long w/Aseptiquik-NON	500 Series	520R
33-0913-211332	Pumpsil Kit - 9.6x3.2mm - 2.5m long w/TC-NON	600 Series	620R
33-0913-211333	Pumpsil Kit - 9.6x3.2mm - 2.5m long w/MPC-NON	600 Series	620R
33-0913-211334	Pumpsil Kit - 9.6x3.2mm - 2.5m long w/Aseptiquik-NON	600 Series	620R
33-0913-211342	Pumpsil Kit - 12.7x3.2mm - 2.5m long w/TC-NON	600 Series	620R
33-0913-211343	Pumpsil Kit - 12.7x3.2mm - 2.5m long w/MPC-NON	600 Series	620R
33-0913-211344	Pumpsil Kit - 12.7x3.2mm - 2.5m long w/Aseptiquik-NON	600 Series	620R
33-0913-211352	Pumpsil Kit - 19x4.8mm - 2.5m long w/TC-NON	700 Series	720R
33-0913-211353	Pumpsil Kit - 19x4.8mm - 2.5m long w/MPC-NON	700 Series	720R
33-0913-211354	Pumpsil Kit - 19x4.8mm - 2.5m long w/Aseptiquik-NON	700 Series	720R
33-0913-211432	Pumpsil Kit - 9.6x3.2mm - 5m long w/TC-NON	600 Series	620R
33-0913-211433	Pumpsil Kit - 9.6x3.2mm - 5m long w/MPC-NON	600 Series	620R
33-0913-211434	Pumpsil Kit - 9.6x3.2mm - 5m long w/Aseptiquik-NON	600 Series	620R
33-0913-211442	Pumpsil Kit - 12.7x3.2mm - 5m long w/TC-NON	600 Series	620R
33-0913-211443	Pumpsil Kit - 12.7x3.2mm - 5m long w/MPC-NON	600 Series	620R
33-0913-211444	Pumpsil Kit - 12.7x3.2mm - 5m long w/Aseptiquik-NON	600 Series	620R
33-0913-211452	Pumpsil Kit - 19x4.8mm - 5m long w/TC-NON	700 Series	720R
33-0913-211453	Pumpsil Kit - 19x4.8mm - 5m long w/MPC-NON	700 Series	720R
33-0913-211454	Pumpsil Kit - 19x4.8mm - 5m long w/Aseptiquik-NON	700 Series	720R
33-0933-211113	Bioprene Kit - 3.2x1.6mm - .3m long w/MPC-NON	Transfer use only
33-0933-211114	Bioprene Kit - 3.2x1.6mm - .3m long w/Aseptiquik-NON	Transfer use only
33-0933-211122	Bioprene Kit - 6.4x1.6mm - .3m long w/TC-NON	Transfer use only
33-0933-211123	Bioprene Kit - 6.4x1.6mm - .3m long w/MPC-NON	Transfer use only
33-0933-211124	Bioprene Kit - 6.4x1.6mm - .3m long w/Aseptiquik-NON	Transfer use only
33-0933-211213	Bioprene Kit - 3.2x1.6mm - 1m long w/MPC-NON	500 Series	520R
33-0933-211214	Bioprene Kit - 3.2x1.6mm - 1m long w/Aseptiquik-NON	500 Series	520R
33-0933-211222	Bioprene Kit - 6.4x1.6mm - 1m long w/TC-NON	500 Series	520R
33-0933-211223	Bioprene Kit - 6.4x1.6mm - 1m long w/MPC-NON	500 Series	520R
33-0933-211224	Bioprene Kit - 6.4x1.6mm - 1m long w/Aseptiquik-NON	500 Series	520R
33-0933-211232	Bioprene Kit - 9.6x3.2mm - 1m long w/TC-NON	600 Series	620R
33-0933-211233	Bioprene Kit - 9.6x3.2mm - 1m long w/MPC-NON	600 Series	620R
33-0933-211234	Bioprene Kit - 9.6x3.2mm - 1m long w/Aseptiquik-NON	600 Series	620R
33-0933-211242	Bioprene Kit - 12.7x3.2mm - 1m long w/TC-NON	600 Series	620R
33-0933-211243	Bioprene Kit - 12.7x3.2mm - 1m long w/MPC-NON	600 Series	620R
33-0933-211244	Bioprene Kit - 12.7x3.2mm - 1m long w/Aseptiquik-NON	600 Series	620R
33-0933-211252	Bioprene Kit - 19x4.8mm - 1m long w/TC-NON	700 Series	720R
33-0933-211253	Bioprene Kit - 19x4.8mm - 1m long w/MPC-NON	700 Series	720R
33-0933-211254	Bioprene Kit - 19x4.8mm - 1m long w/Aseptiquik-NON	700 Series	720R
33-0933-211313	Bioprene Kit - 3.2x1.6mm - 2.5m long w/MPC-NON	500 Series	520R
33-0933-211314	Bioprene Kit - 3.2x1.6mm - 2.5m long w/Aseptiquik-NON	500 Series	520R
33-0933-211322	Bioprene Kit - 6.4x1.6mm - 2.5m long w/TC-NON	500 Series	520R
33-0933-211323	Bioprene Kit - 6.4x1.6mm - 2.5m long w/MPC-NON	500 Series	520R
33-0933-211324	Bioprene Kit - 6.4x1.6mm - 2.5m long w/Aseptiquik-NON	500 Series	520R
33-0933-211332	Bioprene Kit - 9.6x3.2mm - 2.5m long w/TC-NON	600 Series	620R
33-0933-211333	Bioprene Kit - 9.6x3.2mm - 2.5m long w/MPC-NON	600 Series	620R
33-0933-211334	Bioprene Kit - 9.6x3.2mm - 2.5m long w/Aseptiquik-NON	600 Series	620R
33-0933-211342	Bioprene Kit - 12.7x3.2mm - 2.5m long w/TC-NON	600 Series	620R
33-0933-211343	Bioprene Kit - 12.7x3.2mm - 2.5m long w/MPC-NON	600 Series	620R
33-0933-211344	Bioprene Kit - 12.7x3.2mm - 2.5m long w/Aseptiquik-NON	600 Series	620R
33-0933-211352	Bioprene Kit - 19x4.8mm - 2.5m long w/TC-NON	700 Series	720R
33-0933-211353	Bioprene Kit - 19x4.8mm - 2.5m long w/MPC-NON	700 Series	720R
33-0933-211354	Bioprene Kit - 19x4.8mm - 2.5m long w/Aseptiquik-NON	700 Series	720R
33-0933-211432	Bioprene Kit - 9.6x3.2mm - 5m long w/TC-NON	600 Series	620R
33-0933-211433	Bioprene Kit - 9.6x3.2mm - 5m long w/MPC-NON	600 Series	620R
33-0933-211434	Bioprene Kit - 9.6x3.2mm - 5m long w/Aseptiquik-NON	600 Series	620R
33-0933-211442	Bioprene Kit - 12.7x3.2mm - 5m long w/TC-NON	600 Series	620R
33-0933-211443	Bioprene Kit - 12.7x3.2mm - 5m long w/MPC-NON	600 Series	620R
33-0933-211444	Bioprene Kit - 12.7x3.2mm - 5m long w/Aseptiquik-NON	600 Series	620R
33-0933-211452	Bioprene Kit - 19x4.8mm - 5m long w/TC-NON	700 Series	720R
33-0933-211453	Bioprene Kit - 19x4.8mm - 5m long w/MPC-NON	700 Series	720R
33-0933-211454	Bioprene Kit - 19x4.8mm - 5m long w/Aseptiquik-NON	700 Series	720R
33-0942-211112	Pureweld Kit - 3.2x1.6mm - .3m long w/TC-NON	Transfer use only
33-0942-211113	Pureweld Kit - 3.2x1.6mm - .3m long w/MPC-NON	Transfer use only
33-0942-211114	Pureweld Kit - 3.2x1.6mm - .3m long w/Aseptiquik-NON	Transfer use only
33-0942-211122	Pureweld Kit - 6.4x1.6mm - .3m long w/TC-NON	Transfer use only
33-0942-211123	Pureweld Kit - 6.4x1.6mm - .3m long w/MPC-NON	Transfer use only
33-0942-211124	Pureweld Kit - 6.4x1.6mm - .3m long w/Aseptiquik-NON	Transfer use only
33-0942-211212	Pureweld Kit - 3.2x1.6mm - 1m long w/TC-NON	500 Series	520R
33-0942-211213	Pureweld Kit - 3.2x1.6mm - 1m long w/MPC-NON	500 Series	520R
33-0942-211214	Pureweld Kit - 3.2x1.6mm - 1m long w/Aseptiquik-NON	500 Series	520R
33-0942-211222	Pureweld Kit - 6.4x1.6mm - 1m long w/TC-NON	500 Series	520R
33-0942-211223	Pureweld Kit - 6.4x1.6mm - 1m long w/MPC-NON	500 Series	520R
33-0942-211224	Pureweld Kit - 6.4x1.6mm - 1m long w/Aseptiquik-NON	500 Series	520R
33-0942-211232	Pureweld Kit - 9.6x3.2mm - 1m long w/TC-NON	600 Series	620R
33-0942-211233	Pureweld Kit - 9.6x3.2mm - 1m long w/MPC-NON	600 Series	620R
33-0942-211234	Pureweld Kit - 9.6x3.2mm - 1m long w/Aseptiquik-NON	600 Series	620R
33-0942-211242	Pureweld Kit - 12.7x3.2mm - 1m long w/TC-NON	600 Series	620R
33-0942-211243	Pureweld Kit - 12.7x3.2mm - 1m long w/MPC-NON	600 Series	620R
33-0942-211244	Pureweld Kit - 12.7x3.2mm - 1m long w/Aseptiquik-NON	600 Series	620R
33-0942-211252	Pureweld Kit - 19x4.8mm - 1m long w/TC-NON	700 Series	720R
33-0942-211253	Pureweld Kit - 19x4.8mm - 1m long w/MPC-NON	700 Series	720R
33-0942-211254	Pureweld Kit - 19x4.8mm - 1m long w/Aseptiquik-NON	700 Series	720R
33-0942-211312	Pureweld Kit - 3.2x1.6mm - 2.5m long w/TC-NON	500 Series	520R
33-0942-211313	Pureweld Kit - 3.2x1.6mm - 2.5m long w/MPC-NON	500 Series	520R
33-0942-211314	Pureweld Kit - 3.2x1.6mm - 2.5m long w/Aseptiquik-NON	500 Series	520R
33-0942-211322	Pureweld Kit - 6.4x1.6mm - 2.5m long w/TC-NON	500 Series	520R
33-0942-211323	Pureweld Kit - 6.4x1.6mm - 2.5m long w/MPC-NON	500 Series	520R
33-0942-211324	Pureweld Kit - 6.4x1.6mm - 2.5m long w/Aseptiquik-NON	500 Series	520R
33-0942-211332	Pureweld Kit - 9.6x3.2mm - 2.5m long w/TC-NON	600 Series	620R
33-0942-211333	Pureweld Kit - 9.6x3.2mm - 2.5m long w/MPC-NON	600 Series	620R
33-0942-211334	Pureweld Kit - 9.6x3.2mm - 2.5m long w/Aseptiquik-NON	600 Series	620R
33-0942-211342	Pureweld Kit - 12.7x3.2mm - 2.5m long w/TC-NON	600 Series	620R
33-0942-211343	Pureweld Kit - 12.7x3.2mm - 2.5m long w/MPC-NON	600 Series	620R
33-0942-211344	Pureweld Kit - 12.7x3.2mm - 2.5m long w/Aseptiquik-NON	600 Series	620R
33-0942-211352	Pureweld Kit - 19x4.8mm - 2.5m long w/TC-NON	700 Series	720R
33-0942-211353	Pureweld Kit - 19x4.8mm - 2.5m long w/MPC-NON	700 Series	720R
33-0942-211354	Pureweld Kit - 19x4.8mm - 2.5m long w/Aseptiquik-NON	700 Series	720R
33-0942-211432	Pureweld Kit - 9.6x3.2mm - 5m long w/TC-NON	600 Series	620R
33-0942-211433	Pureweld Kit - 9.6x3.2mm - 5m long w/MPC-NON	600 Series	620R
33-0942-211434	Pureweld Kit - 9.6x3.2mm - 5m long w/Aseptiquik-NON	600 Series	620R
33-0942-211442	Pureweld Kit - 12.7x3.2mm - 5m long w/TC-NON	600 Series	620R
33-0942-211443	Pureweld Kit - 12.7x3.2mm - 5m long w/MPC-NON	600 Series	620R
33-0942-211444	Pureweld Kit - 12.7x3.2mm - 5m long w/Aseptiquik-NON	600 Series	620R
33-0942-211452	Pureweld Kit - 19x4.8mm - 5m long w/TC-NON	700 Series	720R
33-0942-211453	Pureweld Kit - 19x4.8mm - 5m long w/MPC-NON	700 Series	720R
33-0942-211454	Pureweld Kit - 19x4.8mm - 5m long w/Aseptiquik-NON	700 Series	720R
33-BSHP-211214	Braided Hose Kit-3/8""ID-1m long-TC-NON	Transfer use only
33-BSHP-211222	Braided Hose Kit-3/8""ID-1m long-Aseptiquik-NON	Transfer use only
33-BSHP-211224	Braided Hose Kit-1/2""ID-1m long-TC-NON	Transfer use only
33-BSHP-211232	Braided Hose Kit-1/2""ID-1m long-Aseptiquik-NON	Transfer use only
33-BSHP-211234	Braided Hose Kit-3/4""ID-1m long-TC-NON	Transfer use only
33-BSHP-211242	Braided Hose Kit-3/4""ID-1m long-Aseptiquik-NON	Transfer use only
33-BSHP-211244	Braided Hose Kit-1""ID-1m long-TC-NON	Transfer use only
33-BSHP-211312	Braided Hose Kit-1""ID-1m long-Aseptiquik-NON	Transfer use only
33-BSHP-211314	Braided Hose Kit-3/8""ID-2.5m long-TC-NON	Transfer use only
33-BSHP-211322	Braided Hose Kit-3/8""ID-2.5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211324	Braided Hose Kit-1/2""ID-2.5m long-TC-NON	Transfer use only
33-BSHP-211332	Braided Hose Kit-1/2""ID-2.5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211334	Braided Hose Kit-3/4""ID-2.5m long-TC-NON	Transfer use only
33-BSHP-211342	Braided Hose Kit-3/4""ID-2.5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211344	Braided Hose Kit-1""ID-2.5m long-TC-NON	Transfer use only
33-BSHP-211412	Braided Hose Kit-1""ID-2.5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211414	Braided Hose Kit-3/8""ID-5m long-TC-NON	Transfer use only
33-BSHP-211422	Braided Hose Kit-3/8""ID-5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211424	Braided Hose Kit-1/2""ID-5m long-TC-NON	Transfer use only
33-BSHP-211432	Braided Hose Kit-1/2""ID-5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211434	Braided Hose Kit-3/4""ID-5m long-TC-NON	Transfer use only
33-BSHP-211442	Braided Hose Kit-3/4""ID-5m long-Aseptiquik-NON	Transfer use only
33-BSHP-211444	Braided Hose Kit-1""ID-5m long-TC-NON	Transfer use only

Standard configurations have been designed based on the most used components. Assemblies listed are non-irradiated. Triclamp fittings are uncapped and standard size. Detailed drawings with bill of materials available upon request. For any modifications to length, fitting size/type or irradiation requirement please contact your local Watson-Marlow representative.

Part Number	Part Name (Description)	Pump	Pump-head
33-0913-111221	Pumpsil Y-Element : 3.2x2.4mm-1m ends w/open-NON	500 series	505L
33-0913-111222	Pumpsil Y-Element : 3.2x2.4mm -1m ends w/TC-NON	500 series	505L
33-0913-111223	Pumpsil Y-Element : 3.2x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0913-111224	Pumpsil Y-Element : 3.2x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0913-111231	Pumpsil Y-Element : 4.8x2.4mm-1m ends w/open-NON	500 series	505L
33-0913-111232	Pumpsil Y-Element : 4.8x2.4mm-1m ends w/TC-NON	500 series	505L
33-0913-111233	Pumpsil Y-Element : 4.8x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0913-111234	Pumpsil Y-Element : 4.8x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0913-111241	Pumpsil Y-Element : 6.4x2.4mm-1m ends w/open-NON	500 series	505L
33-0913-111242	Pumpsil Y-Element : 6.4x2.4mm-1m ends w/TC-NON	500 series	505L
33-0913-111243	Pumpsil Y-Element : 6.4x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0913-111244	Pumpsil Y-Element : 6.4x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0913-111251	Pumpsil Y-Element : 8.0x2.4mm-1m ends w/open-NON	500 series	505L
33-0913-111252	Pumpsil Y-Element : 8.0x2.4mm-1m ends w/TC-NON	500 series	505L
33-0913-111253	Pumpsil Y-Element : 8.0x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0913-111254	Pumpsil Y-Element : 8.0x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0913-111261	Pumpsil Y-Element : 9.6x2.4mm-1m ends w/open-NON	500 series	505L
33-0913-111262	Pumpsil Y-Element : 9.6x2.4mm-1m ends w/TC-NON	500 series	505L
33-0913-111263	Pumpsil Y-Element : 9.6x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0913-111264	Pumpsil Y-Element : 9.6x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0913-111271	Pumpsil Y-Element : 8x4mm-1m ends w/open-NON	600 series	620L
33-0913-111272	Pumpsil Y-Element : 8x4mm-1m ends w/TC-NON	600 series	620L
33-0913-111273	Pumpsil Y-Element : 8x4mm-1m ends w/MPC-NON	600 series	620L
33-0913-111274	Pumpsil Y-Element : 8x4mm-1m ends w/Aseptiquik-NON	600 series	620L
33-0933-111221	Bioprene Y-Element : 3.2x2.4mm-1m ends w/open-NON	500 series	505L
33-0933-111222	Bioprene Y-Element : 3.2x2.4mm-1m ends w/TC-NON	500 series	505L
33-0933-111223	Bioprene Y-Element : 3.2x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0933-111224	Bioprene Y-Element : 3.2x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0933-111231	Bioprene Y-Element : 4.8x2.4mm-1m ends w/open-NON	500 series	505L
33-0933-111232	Bioprene Y-Element : 4.8x2.4mm-1m ends w/TC-NON	500 series	505L
33-0933-111233	Bioprene Y-Element : 4.8x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0933-111234	Bioprene Y-Element : 4.8x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0933-111241	Bioprene Y-Element : 6.4x2.4mm-1m ends w/open-NON	500 series	505L
33-0933-111242	Bioprene Y-Element : 6.4x2.4mm-1m ends w/TC-NON	500 series	505L
33-0933-111243	Bioprene Y-Element : 6.4x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0933-111244	Bioprene Y-Element : 6.4x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0933-111261	Bioprene Y-Element : 9.6x2.4mm-1m ends w/open-NON	500 series	505L
33-0933-111262	Bioprene Y-Element : 9.6x2.4mm-1m ends w/TC-NON	500 series	505L
33-0933-111263	Bioprene Y-Element : 9.6x2.4mm-1m ends w/MPC-NON	500 series	505L
33-0933-111264	Bioprene Y-Element : 9.6x2.4mm-1m ends w/Aseptiquik-NON	500 series	505L
33-0933-111271	Bioprene Y-Element : 8x4mm-1m ends w/open-NON	600 series	620L
33-0933-111272	Bioprene Y-Element : 8x4mm-1m ends w/TC-NON	600 series	620L
33-0933-111273	Bioprene Y-Element : 8x4mm-1m ends w/MPC-NON	600 series	620L
33-0933-111274	Bioprene Y-Element : 8x4mm-1m ends w/Aseptiquik-NON	600 series	620L

Standard configurations have been designed based on the most used components. Assemblies listed are non-irradiated with 1-meter-long extended ends on each side of the corresponding Double-Y element. Triclamp fittings are uncapped and standard size. Detailed drawings with bill of materials available upon request. For any modifications to length, fitting size/type or irradiation requirement please contact your local Watson-Marlow Representative.

Part Number	Part Name (Description)	Pump	Pump-head
33-0913-311261	Pumpsil Loadsure : 12.7mm bore-1m ends w/open-NON	700 series	720RE
33-0913-311262	Pumpsil Loadsure : 12.7mm bore-1m ends w/TC-NON	700 series	720RE
33-0913-311263	Pumpsil Loadsure : 12.7mm bore-1m ends w/MPC-NON	700 series	720RE
33-0913-311264	Pumpsil Loadsure : 12.7mm bore-1m ends w/Aseptiquik-NON	700 series	720RE
33-0913-311281	Pumpsil Loadsure : 19mm bore-1m ends w/open-NON	700 series	720RE
33-0913-311282	Pumpsil Loadsure : 19mm bore-1m ends w/TC-NON	700 series	720RE
33-0913-311283	Pumpsil Loadsure : 19mm bore-1m ends w/MPC-NON	700 series	720RE
33-0913-311284	Pumpsil Loadsure : 19mm bore-1m ends w/Aseptiquik-NON	700 series	720RE
33-0913-311291	Pumpsil Loadsure : 25.4mm bore-1m ends w/open-NON	700 series	720RE
33-0913-311292	Pumpsil Loadsure : 25.4mm bore-1m ends w/TC-NON	700 series	720RE
33-0913-311293	Pumpsil Loadsure : 25.4mm bore-1m ends w/MPC-NON	700 series	720RE
33-0913-311294	Pumpsil Loadsure : 25.4mm bore-1m ends w/Aseptiquik-NON	700 series	720RE
33-0933-311281	Bioprene Loadsure : 19mm bore-1m ends w/open-NON	700 series	720RE
33-0933-311282	Bioprene Loadsure : 19mm bore-1m ends w/TC-NON	700 series	720RE
33-0933-311283	Bioprene Loadsure : 19mm bore-1m ends w/MPC-NON	700 series	720RE
33-0933-311284	Bioprene Loadsure : 19mm bore-1m ends w/Aseptiquik-NON	700 series	720RE
33-0933-311291	Bioprene Loadsure : 25.4mm bore-1m ends w/open-NON	700 series	720RE
33-0933-311292	Bioprene Loadsure : 25.4mm bore-1m ends w/TC-NON	700 series	720RE
33-0933-311293	Bioprene Loadsure : 25.4mm bore-1m ends w/MPC-NON	700 series	720RE
33-0933-311294	Bioprene Loadsure : 25.4mm bore-1m ends w/Aseptiquik-NON	700 series	720RE

Standard configurations have been designed based on the most used components. Assemblies listed are non-irradiated with 1-meter-long extended ends on each side of the corresponding Loadsure element. Triclamp fittings are uncapped and standard size. Detailed drawings with bill of materials available upon request. For any modifications to length, fitting size/type or irradiation requirement please contact your local Watson-Marlow representative.

Rekomendowane produkty

pompy procesowe 530

Natężenia przepływu do 3,5 l/min (55 gal. USA/h) i ciśnienia do 7 bar (100 psi). Precyzyjny zakres regulacji prędkości 2200:1.

Pompy - pompy z osłoną

Powiązane produkty

Konstrukcje dostosowane - zespoły jednorazowe

Zoptymalizuj proces z jednorazowymi zespołami WMArchitectTM zaprojektowanymi pod kątem spełnienia indywidualnych wymagań.

Podzespoły jednorazowe
Jednorazowe zespoły napełniania/zamykania

Zespoły jednorazowe napełniania/zamykania WMArchitectTM chronią środek leczniczy podczas procesu napełniania poprzez szeroką gamę konfiguracji montażowych gwarantujących sterylność.

Podzespoły jednorazowe
Testy walidacyjne

Jednorazowe rozwiązania WMArchitectTM objęte są pełnym wsparciem ze strony naszych doświadczonych specjalistów ds. testów walidacyjnych

Podzespoły jednorazowe
