Pumpheads

500 series pumpheads

Arrange a demo
Arrange a demo

Overview

500 series high-flow pumpheads

520R pumphead

  • 520R pumpheads feature two sprung rollers and transparent cover so you can see the pump running easily. Pumpheads accept eight sizes of continuous tubing up to 9.6 mm bore, without need for adjustment. There are versions for 1.6 mm wall and 2.4 mm wall thickness tubing for higher pressure or higher viscosities.

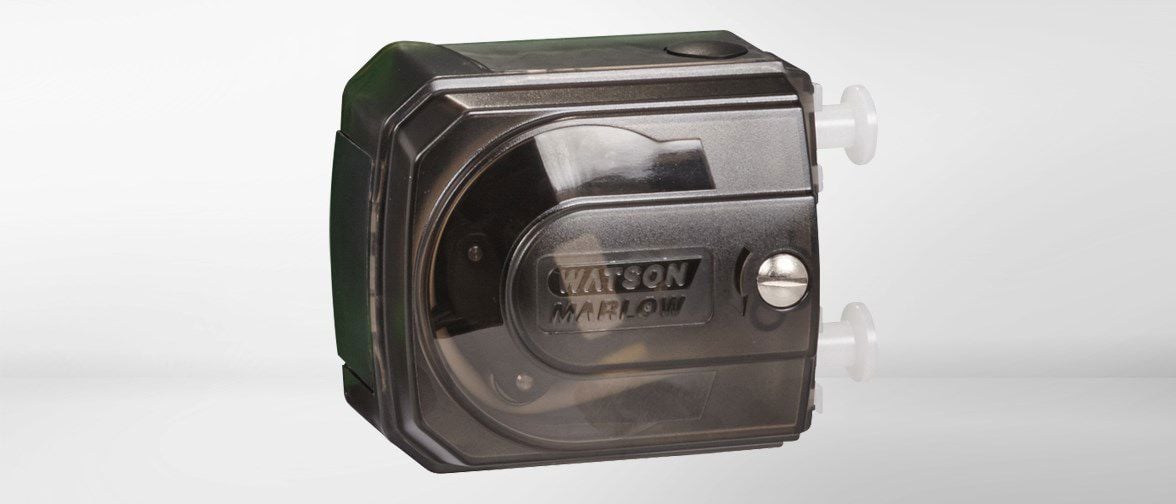

  • 520RE LoadSure® element pumpheads guarantee perfect tube loading and one-minute maintenance and pressure up to 7 bar (dependant on the choice of drive).

REL—LoadSure® elements for 0 bar to 2 bar operation

REM—LoadSure® Elements for 2 bar to 4 bar operation

REH—LoadSure® Elements for 4 bar to 7 bar operation

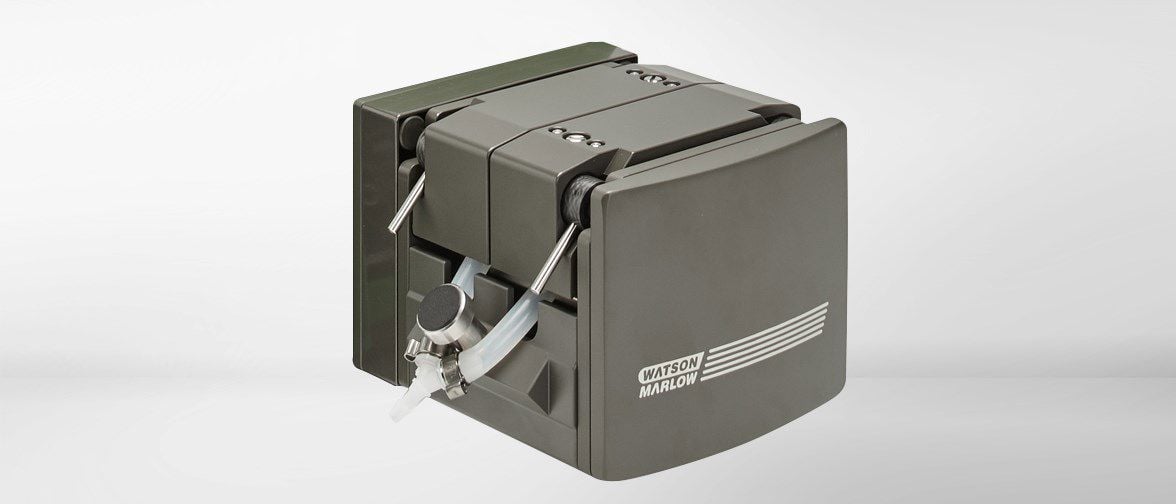

505L pumphead

Virtually pulse-free flow with its 'double-Y' twin tube design. Flow rates to 4,375 ml/min. 505LX extension pumphead can be used to increase flows or channels. For a two-channel set-up, use the additional 505LTC tube clamp set.

Technical summary

Max. flow rate continuous 4375 ml/min
Max. flow rate continuous69.35 USGPH
Pump typeCased, Panel mount
Weight1.1 - 6.2 kg

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

520R pumphead performance

520R twin sprung roller pumpheads for continuous 1.6 mm wall thickness tubing— Tube bore and flow rates — ml/min (USGPH)
Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm 0.004-9.5 (0–0.15) 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) NA
Marprene®, Bioprene®, PureWeld XL® 0.1–220rpm 0.004-9.0 (0–0.14) 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) NA
520R2 twin sprung roller pumpheads for continuous 2.4 mm wall thickness tubing— Tube bore and flow rates — ml/min (USGPH)
Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm NA 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) 1.60-3500 (0.03–55.5)
Marprene®/Bioprene®, PureWeld XL® 0.1–220rpm NA 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) 1.50-3300 (0.02–52.3)

520REL element pumphead performance

520REL twin-roller pumphead for LoadSure® element tubing — flow rates — ml/min (USGPH)
Tube material Speed 3.2mm 6.4mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8) 1.60-3500 (0.03–55.5)
Marprene® TL, Bioprene® TL 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8) 1.50-3300 (0.02–52.3)

520REM element pumphead performance

520REM twin-roller pumpheads for LoadSure® element tubing — flow rates — ml/min (USGPH)
Tube material Speed 3.2mm 6.4mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8)
Marprene® TM, Bioprene® TM 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8)

520REH element pumphead performance

520REH twin-roller pumpheads for LoadSure® element tubing — flow rates — ml/min (USGPH)
Tube material Speed rpm 3.2mm
Marprene® TH, Bioprene® TH, GORE® STA-PURE® Pump Tubing – Series PCS 0.1 to 220 0.20-450 (0–7.13)

520RET element pumphead for Maxthane Elements performance

520RET twin-roller pumpheads for Maxthane® LoadSure® elements tubing — flow rates — ml/min (USGPH)
Tube material Speed 3.2 mm 6.4 mm 9.6 mm
Maxthane® 0.1-220 rpm 0.24-520 (0-8.24) 0.75-1600 (0.01-25.4) 1.3-2900 (0.02-46)

505L pumphead performance

Tube bore and flow rates (ml/min)
Min Max Ratio Speed rpm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
0.1 220 2200:01 0.1-220 0.04-95 0.23-500 0.42-930 0.70-1500 0.90-2000 1.3-2800
0.1 350 3500:01 0.1-350 0.04-150 0.23-800 0.42-1500 0.70-2500 0.90-3200 1.3-4375*

*9.6mm bore through pumphead and to delivery; 12.7mm bore to source, using 913.AH96.K24

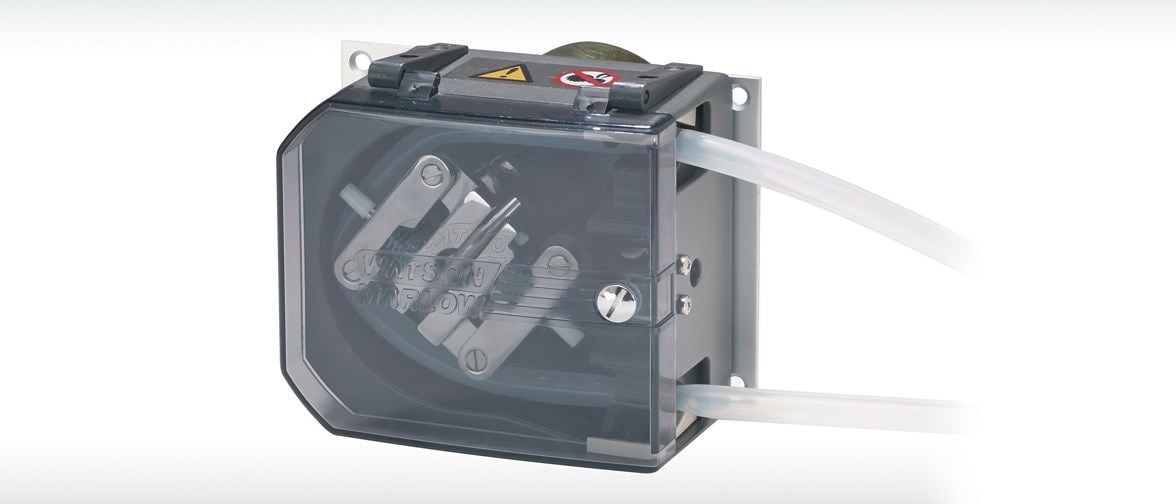

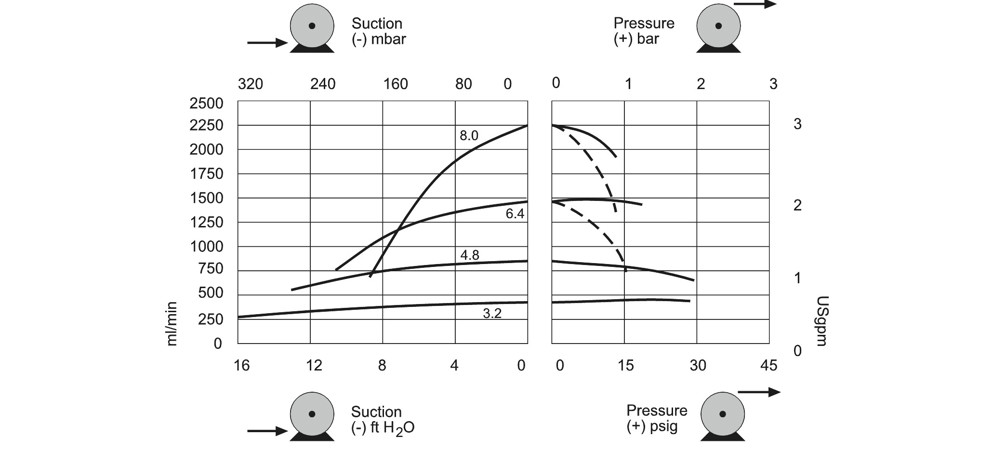

501RL pumphead performance

Tube bore and flow rates (ml/min)
Tube bore (mm) 0.5 0.8 1.6 3.2 4.8 6.4 8.0
Flow rate (ml/rev) 0.04 0.12 0.43 1.86 4.05 6.35 10
Max continuous flow rate (ml/min) 12 36 129 558 1215 1905 3000
Tube life (hours) for 501RL pumphead: Clockwise rotation. No pressure. 6.4mm bore tubing, except Marprene which was 4.8mm bore
Bioprene TL/Marprene TL 10000
STA-PURE 1500
Pumpsil 200
Tube life (hours) for 501RL pumphead: Anticlockwise rotation. 1 bar (15psi). 6.4mm bore tubing, except Marprene which was 4.8mm bore
Bioprene TL/Marprene TL 6000
STA-PURE 1100
Pumpsil 50

505CA pumphead performance

    Tube bore and flow rates (ml/min)
  Speed (rpm) 0.13 mm 0.19 mm 0.25 mm 0.38 mm 0.50 mm
530S,530U 0.1 - 55 0.0006 - 0.061 0.0009 - 0.09 0.0014 - 0.16 0.0024 - 0.27 0.004 - 0.44
Max permissible speed 170 0.19 0.29 0.44 1.22 1.90
  Speed (rpm) 0.63 mm 0.76 mm 0.88 mm 1.02 mm 1.14 mm
530S,530U 0.1 - 55 0.008 - 0.79 0.010 - 1.16 0.014 - 1.54 0.020 - 2.04 0.022 - 2.51
Max permissible speed 170 2.82 3.81 5.51 7.11 8.84
  Speed (rpm) 1.29 mm 1.42 mm 1.47 mm 1.52 mm 1.65 mm
530S,530U 0.1 - 55 0.030 - 3.22 0.034 - 3.32 0.038 - 4.14 0.040 - 4.37 0.046 - 5.05
Max permissible speed 170 11.2 13.6   14.5 17.4
  Speed (rpm) 1.85 mm 2.05 mm 2.38 mm 2.54 mm 2.79 mm
530S,530U 0.1 - 55 0.060 - 6.31 0.070 - 7.6 0.090 - 9.84 0.11 - 11 0.12 - 12.8
Max permissible speed 170 21.4 26 31.2 36.5 41.6

Specifications

Technical specifications

520R pumphead520R2 pumphead520REL element pumphead520REM element pumphead520REH element pumphead520RET element pumphead for Maxthane Elements505L pumphead501RL pumphead505CA pumphead
Number of channels1 1 1 1 1 1 1 4, 8, 12, 16
Number of rollers2 2 2 2 2 2 8
Max. flow rate continuous 2400 ml/min3500 ml/min3500 ml/min1500 ml/min450 ml/min2900 ml/min4375 ml/min3000 ml/min42 ml/min
Max. flow rate continuous38.04 USGPH55.48 USGPH55.48 USGPH23.78 USGPH7.13 USGPH46 USGPH69.35 USGPH47.55 USGPH0.067 USGPH
Operating temperature range 5 °C to 40 °C
Operating temperature range 41 °F to 104 °F
Pump typeCased, Panel mount Cased, Panel mount Cased, Panel mount Cased, Panel mount Cased, Panel mount Cased Cased, Panel mount Cased, Panel mount Cased
Accuracy0.5 %
StandardsBS EN (IP31), BS EN 50082-1, BS EN 61010-1, CE
Weight2.5 kg1.1 kg2.7 - 6.2 kg
Weight1.38 - 31.69 lbs
Compatible tubing bore size 0.5, 1.6, 3.2, 4.8, 6.4, 8 mm1.6, 3.2, 4.8, 6.4, 8, 9.6 mm3.2, 6.4, 9.6 mm3.2, 6.4 mm3.2 mm3.2, 6.4, 9.6 mm1.6, 3.2, 4.8, 6.4, 8, 9.6 mm0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8 mm0.13, 0.19, 0.25, 0.38, 0.5, 0.63, 0.76, 0.88, 1.02, 1.14, 1.29, 1.42, 1.47, 1.52, 1.65, 1.85, 2.05, 2.38, 2.54, 2.79 mm
Compatible tubing wall thickness 1.6 mm2.4 mm2.4 mm1.6 mm

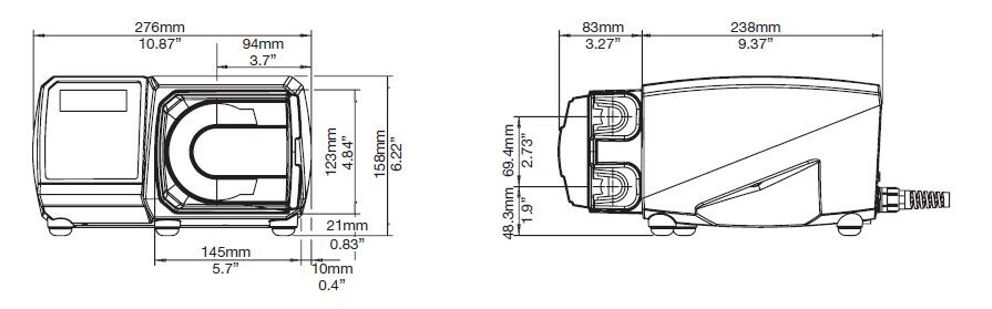

520R pumphead dimensions

505L pumphead dimensions

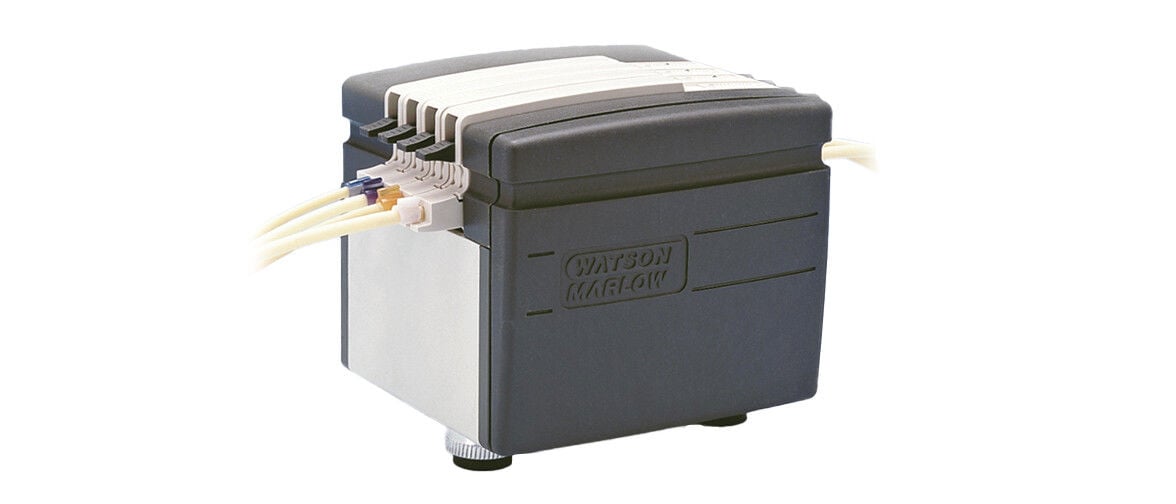

505CA pumphead dimensions

Materials of construction

Pumphead body assemblyAcetal, Aluminium, Aluminium alloy, Brass, Polycarbonate (PC), Polyphenylene sulphide (PPS), Verton
Pumphead guardPolycarbonate (PC), Verton
Pumphead trackAluminium, Polyphenylene sulphide (PPS)
Pumphead roller assemblyCarbon steel, Delrin, MoS2 filled Nylon 6 (Nylatron), Polyphenylene sulphide (PPS), Stainless steel, Stainless steel 316
Pumphead rotor assemblyAluminium, Mazak, chromium plated, Polyphenylene sulphide (PPS), Stainless steel, Stainless steel 316
Tube clamp assemblyAcetal copolymer (Kematal)

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

Literature

Datasheet

  1. 520REH element pumphead datasheet (EN).pdf
    PDF - 864.3kb
  2. 520RET element pumphead datasheet (EN).pdf
    PDF - 1007kb
  3. 505L pumphead datasheet (EN).pdf
    PDF - 584.5kb
  4. 501RL pumphead datasheet (EN).pdf
    PDF - 539.2kb
  5. 520R pumphead datasheet (EN).pdf
    PDF - 1.1mb
  6. 520REM element pumphead datasheet (EN).pdf
    PDF - 967.3kb
  7. 505CA datasheet (EN).pdf
    PDF - 623.3kb
  8. 520REL element pumphead datasheet (EN).pdf
    PDF - 1003.3kb
  9. 520R2 pumphead datasheet (EN).pdf
    PDF - 1.1mb

Manuals

  1. 505CA Pumphead Manual (EN).pdf
    PDF - 3.7mb
  2. 505L pumphead manual (EN).pdf
    PDF - 384.4kb
  3. 501RL pumpheads ATEX Directive (2014-34-EU) (EN).pdf
    PDF - 415.4kb
  4. 501RL pumpheads manual (EN).pdf
    PDF - 517.3kb

Order Information

Product codes

520R pumphead product codes

Description Part code
520R Pumphead 1.6 wall for continuous tubing 053.1011.100
Tubing 1.6 mm wall thickness tubing for 520R
Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene®
0.5mm (1/50in) 112 913.A005.016 942.0005.016 933.0005.016 902.0005.016
0.8mm (1/32in) 13 913.A008.016 942.0008.016 933.0008.016 902.0008.016
1.6mm (1/16in) 14 913.A016.016 942.0016.016 933.0016.016 961.0016.016 966.0016.016 902.0016.016
3.2mm (1/8in) 16 913.A032.016 942.0032.016 933.0032.016 961.0032.016 966.0032.016 902.0032.016
4.8mm (3/16in) 25 913.A048.016 942.0048.016 933.0048.016 961.0048.016 966.0048.016 902.0048.016
6.4mm (1/4in) 17 913.A064.016 942.0064.016 933.0064.016 961.0064.016 966.0064.016 902.0064.016
8.0mm (5/16in) 18 913.A080.016 942.0800.016 933.0080.016 961.0080.016 966.0080.016 902.0080.016

520R2 pumphead product codes

Description Part code
520R2 Pumphead 053.1011.2L0
Tubing 1.6 mm wall thickness tubing for 520R
Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene®
0.5mm (1/50in) 112 913.A005.016 942.0005.016 933.0005.016 902.0005.016
0.8mm (1/32in) 13 913.A008.016 942.0008.016 933.0008.016 902.0008.016
1.6mm (1/16in) 14 913.A016.016 942.0016.016 933.0016.016 961.0016.016 966.0016.016 902.0016.016
3.2mm (1/8in) 16 913.A032.016 942.0032.016 933.0032.016 961.0032.016 966.0032.016 902.0032.016
4.8mm (3/16in) 25 913.A048.016 942.0048.016 933.0048.016 961.0048.016 966.0048.016 902.0048.016
6.4mm (1/4in) 17 913.A064.016 942.0064.016 933.0064.016 961.0064.016 966.0064.016 902.0064.016
8.0mm (5/16in) 18 913.A080.016 942.0800.016 933.0080.016 961.0080.016 966.0080.016 902.0080.016

520REL element pumphead product codes

Description Part code
520REL element pumphead 053.1011.EL0
Element product codes for 520REL
Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 6.4mm 9.6mm 3.2mm 6.4mm 9.6mm
Pumpsil® 913.A032.PFQ 913.A064.PFQ 913.A096.PFQ 913.A032.PFT 913.A064.PFT 913.A096.PFT
Bioprene® TL 933.0032.PFT 933.0064.PFT 933.0096.PFT
Marprene® TL 902.0032.PFQ 902.0064.PFQ 902.0096.PFQ
STA-PURE® Series PCS 961.0032.PFT 961.0064.PFT 961.0096.PFT
STA-PURE® Series PFL 966.0032.PFQ 966.0064.PFQ 966.0096.PFQ 966.0032.PFT 966.0064.PFT 966.0096.PFT

520REM element pumphead product codes

Description Part code
520REM element pumphead 053.1011.EM0
Element product codes for 520REM
Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 6.4mm 3.2mm 6.4mm
Bioprene® TM 933.P032.PFT 933.P064.PFT
Marprene® TM 902.P032.PFQ 902.P064.PFQ
STA-PURE® Series PCS 961.M032.PFT 961.M064.PFT
STA-PURE® Series PFL 966.M032.PFQ 966.M064.PFQ 966.M032.PFT 966.M064.PFT

520REH element pumphead product codes

Description Part code
520REH element pumphead 053.1011.EH0
Element product codes for 520REH
Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 3.2mm
Bioprene® TH 933.H032.PFT
Marprene® TH 902.H032.PFQ
STA-PURE® Series PCS 961.H032.PFQ 961.H032.PFT

520RET element pumphead for Maxthane Elements product codes

Description Part code
520RET Element Pumphead for Maxthane Element 053.1011.ET0
Element product codes for 520RET
Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2 mm 6.4 mm 9.6 mm
Maxthane® 0-2 bar (0-30 psi) - - 945.0096.PFT
Maxthane® 0-4 bar (0-60 psi) - 945.0064.PFT -
Maxthane® 0-7 bar (0-100 psi) 945.0032.PFT - -

505L pumphead product codes

Description Description Part code
505L Only pumphead for 2.4mm wall tube 053.4001.000
505LX Extension pumphead only for 2.4mm wall tube 053.4011.020
505LG Pumphead only for STA-PURE for 2.4mm wall tube 053.4010.00G
505LTC Tube clamp set 059.4001.000



Tube ordering codes - Double ‘Y’ tubing elements
Tube bore (mm) Marprene STA-PURE PFL® STA-PURE PCS® Pumpsil Bioprene
1.6 / 2.4 902.E016.K24 966.E016.K24 961.E016.K24 913.AE16.K24 933.E016.K24
3.2 / 2.4 902.E032.K24 966.E032.K24 961.E032.K24 913.AE32.K24 933.E032.K24
4.8 / 2.4 902.E048.K24 966.E048.K24 961.E048.K24 913.AE48.K24 933.E048.K24
6.4 / 2.4 902.E064.K24 966.E064.K24 961.E064.K24 913.AE64.K24 933.E064.K24
8.0 / 2.4 902.E080.K24 966.E080.K24 961.E080.K24 913.AE80.K24 933.E080.K24
9.6 / 2.4 902.E096.K24 913.AE96.K24 933.E096.K24



Transmission tube
Tube bore (mm) Marprene Pumpsil
1.6 / 2.4 902.0016.024 913.A016.024
3.2 / 2.4 902.0032.024 913.A032.024
4.8 / 2.4 902.0048.024 913.A048.024
6.4 / 2.4 902.0064.024 913.A064.024
8.0 / 2.4 902.0080.024 913.A080.024
9.6 / 2.4 902.0096.024 913.A096.024

501RL pumphead product codes

Description Part code
501RL Single channel pumphead for 1.6mm wall tube 053.0001.L00
501RL2 Single channel pumphead for 2.4mm wall tube 053.0001.L20



Tubing 1.6mm wall thickness tubing for 501RL
Tube bore Tube Bioprene Marprene Pumpsil STA-PURE® PCS
0.5mm 1/50” 112 933.0005.016 902.0005.016 913.A005.016
0.8mm 1/32” 13 933.0008.016 902.0008.016 913.A008.016
1.6mm 1/16” 14 933.0016.016 902.0016.016 913.A016.016 961.0016.016
3.2mm 1/8” 16 933.0032.016 902.0032.016 913.A032.016 961.0032.016
4.8mm 3/16” 25 933.0048.016 902.0048.016 913.A048.016 961.0048.016
6.4mm 1/4” 17 933.0064.016 902.0064.016 913.A064.016 961.0064.016
8.0mm 5/16” 18 933.0080.016 902.0080.016 913.A080.016 961.0080.016



Tubing 2.4mm wall thickness for 501RL2
Tube bore Tube Bioprene Marprene Pumpsil STA-PURE® PCS STA-PURE® PFL
1.6mm 1/16” 119 933.0016.024 902.0016.024 913.A016.024 961.0016.024 966.0016.024
3.2mm 1/8” 120 933.0032.024 902.0032.024 913.A032.024 961.0032.024 966.0032.024
4.8mm 3/16” 15 933.0048.024 902.0048.024 913.A048.024 961.0048.024 966.0048.024
6.4mm 1/4” 24 933.0064.024 902.0064.024 913.A064.024 961.0064.024 966.0064.024
8.0mm 5/16” 121 933.0080.024 902.0080.024 913.A080.024 961.0080.024 966.0080.024

505CA pumphead product codes

Description Description Part code
505CA4 505CA4 4 Channel Cassette Pumphead 053.4202.000
505CA8 505CA8 8 Channel Cassette Pumphead 053.4222.020
505CA12 505CA12 12 Channel Cassette Pumphead 053.4242.000
505CA16 505CA16 16 Channel Cassette Pumphead 053.4262.000
505CAX12 505CAX12 12 Channel Extension Cassette Pumphead 053.3442.000
505CAX16 505CAX16 16 Channel Extension Cassette Pumphead 053.3462.000



Tubing ordering codes
Colour code Tube Marprene Autoclavable Marprene PVC Silicone
Orange/black 0.13 980.0013.000
Orange/red 0.19 980.0019.000
Orange/blue 0.25 978.0025.000 978.0025.00+ 980.0025.000
Orange/green 0.38 978.0038.000 978.0038.00+ 980.0038.000
Orange/yellow 0.5 978.0050.000 978.0050.00+ 980.0050.000
Orange/white 0.63 978.0063.000 978.0063.00+ 980.0063.000 982.0063.000
Black/black 0.76 978.0076.000 978.0076.00+ 980.0076.000 982.0076.000
Orange/orange 0.88 978.0088.000 978.0088.00+ 980.0088.000 982.0088.000
White/white 1.02 978.0102.000 978.0102.00+ 980.0102.000 982.0102.000
Red/red 1.14 978.0114.000 978.0114.00+ 980.0114.000 982.0114.000
Grey/grey 1.29 978.0129.000 978.0129.00+ 980.0129.000 982.0129.000
Yellow/yellow 1.42 978.0142.000 978.0142.00+ 980.0142.000 982.0142.000
Yellow/blue 1.52 978.0152.000 978.0152.00+ 980.0152.000 982.0152.000
Blue/blue 1.65 978.0165.000 978.0165.00+ 980.0165.000 982.0165.000
Green/green 1.85 978.0185.000 978.0182.00+ 980.0185.000 982.0185.000
Purple/purple 2.05 978.0205.000 978.0205.00+ 980.0205.000 982.0205.000
Purple/black 2.29 978.0229.000 978.0229.00+ 980.0229.000 982.0229.000
Purple/orange 2.54 978.0254.000 978.0254.00+ 980.0254.000 982.0254.000
Purple/white 2.79 978.0279.000 978.0279.00+ 980.0279.000 982.0279.000

Case studies

Recommended Products

  1. 500 series high-flow pumps

    500 series high-flow pumps

    Durable, single channel pumps for high flows to 3,500 ml/min. Supports continuous tubing and Loadsure elements for high pressures.

    Pumps - panel mount pumps

  2. 530 process pumps

    530 process pumps

    Flow rates to 3.5 L/min (55 USGPH) and pressures up to 7 bar (100 psi). Precise 2,200:1 speed control range.

    Pumps - cased pumps

  4. Bioprene: Thermoplastic tubing

    Bioprene: Thermoplastic tubing

    Thermoplastic tubing with long peristaltic life and low permeability. 5 ºC to 80 ºC (23 ºF to 176 ºF).

    Tubing - peristaltic

  5. Pumpsil tubing

    Pumpsil tubing

    Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -20 ºC to 80 ºC (-4 ºF to 176 ºF).

    Tubing - peristaltic

Related Products

  1. 100 series pumpheads

    100 series pumpheads

    Iconic flip-pumps for low flows up to 510 ml/min. Accurate flow performance to medium pressures.

    Pumpheads

  2. 300 series pumpheads

    300 series pumpheads

    Iconic flip-top pumps for medium flows to 2,000 ml/min. Extendable up to 6 channels.

    Pumpheads

  3. 300MC pumpheads

    300MC pumpheads

    High accuracy microcassettes for manifold tubing for flow rates up to 53 ml/min.

    Pumpheads

  5. 400M series pumpheads

    400M series pumpheads

    One to eight channel pumps for medium flows to 200 ml/min. Compact design and Luer connectors for 'fit and forget' applications.

    Pumpheads

Our specialists are here to help you succeed.

To order a product or ask a question

Contact our experts
