100 series cased pump

Arrange a demo
Arrange a demo

Overview

100 series laboratory pumps

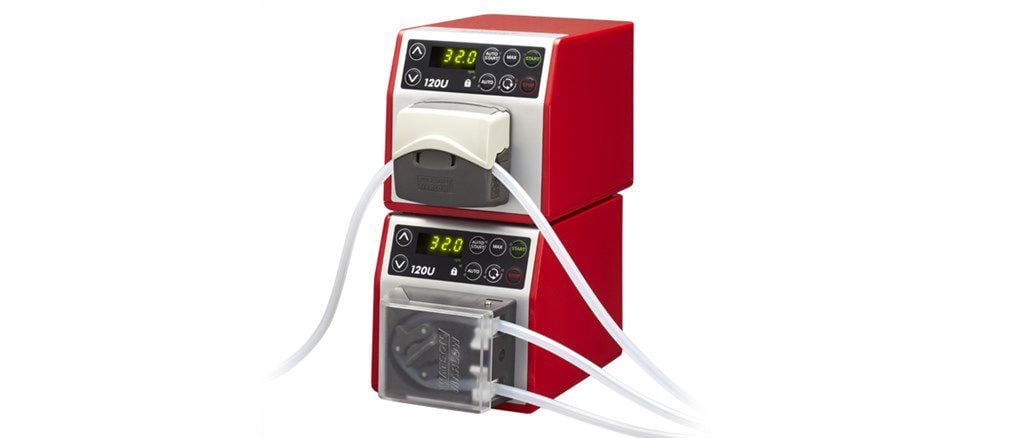

100 series pumps are small and stackable, saving valuable space in cleanroom, LAF and biosafety cabinet installations, capable of flow rates up to 190 ml/min.

The 100 series is the perfect pump for maximising yield in fermentation and cell culture applications. Ultra-compact and stackable for multiple feeds such as pH control, antifoam, nutrient and buffer addition, the 120 offers the ideal combination of size and technology to optimise your process. The 100 series pump is perfectly suited to single-use systems. Error-free tube change takes only seconds.

Biopharmaceutical processes require accurate and repeatable pumping that is easy to validate. With an exceptional 2,000:1 speed range, the 100 series pump delivers the flexibility and purity so vital to drug trials. A keypad lock secures your pumping parameters for consistent and repeatable performance.

Pumphead options available as standard (others available on request):

  • 102R single channel, two roller pumphead for continuous tubing
  • 114DV flip-top single-channel pumphead for continuous tubing
  • 400D1 single-channel pumphead for continuous tubing
  • 400DM2 twin-channel pumphead for manifold tubing
  • 400DM3 three-channel pumphead for manifold tubing

Features and benefits

  • Smooth, wipe down case with no sharp edges to tear gloves and no bug traps. IP31 ingress protection
  • Superior speed control up to 2,000:1, ±1 % set speed accuracy, repeatable flow
  • Efficient and intuitive to use, requiring minimal key presses
  • Compact footprint requires minimal benchtop space
  • Maintenance-free, brushless DC motor
  • Single, twin or three channels of flow
  • Manual, remote or auto control
  • Three-year warranty

Technical summary

Max. flow rate190 ml/min
Min. flow rate 0.0001 ml/min
Max. flow rate3.04 USGPH
Min. flow rate0.00002 USGPH
Max. operating pressure2 bar
Max. operating pressure30 psi
Speed control ratio100:1, 1000:1, 200:1, 2000:1, 32:1, 320:1
Operating temperature range 5 °C to 40 °C
Operating temperature range 40 °F to 104 °F
StandardsCE, cETLus
Drive ingress protectionIP31, NEMA 2
Drive power supplySupplied with 24 V DC mains transformer plug (range 90 V to 264 V AC 47 Hz to 63 Hz) which comes with multi-country adaptors

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

120 Drive with 102R Pumphead performance

102R pumphead for continuous tubing for fixed (120F) speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 3.2mm 4.8mm
Pumpsil (Silicone) 10rpm 0.3 0.5 2.1 8.5 17
17rpm 0.5 0.9 3.6 14 29
31rpm 0.9 1.6 6.5 26 52
102R pumphead for continuous tubing for manual (120S) and auto (120U) variable speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 3.2mm 4.8mm
Pumpsil (Silicone) 1 – 32rpm 0.03-0.9 0.05-1.6 0.21-6.7 0.85-27 1.6-54
0.1 – 32rpm 0.003-0.9 0.005-1.6 0.021-6.7 0.085-27 0.16-54

120 Drive with 114DV Pumphead performance

114DV pumphead for continuous tubing for fixed (120F) speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm 4.8mm
10rpm 0.2 0.4 1.4 2.9 4.7 6.7 8.5
17rpm 0.3 0.7 2.4 4.9 8.0 11 14
31rpm 0.6 1.2 4.3 9.0 15 21 26
52rpm 1.0 2.1 7.3 15 24 35 44
220rpm 4.4 8.8 31 64 100 150 190
114DV pumphead for continuous tubing for manual (120S) and auto (120U) variable speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm 4.8mm
1 - 200rpm 0.02 - 4.0 0.04 - 8.0 0.14 - 28 0.29 - 58 0.47 - 94 0.67 - 130 0.85 - 170
0.1 - 200rpm 0.002 - 4.0 0.004 - 8.0 0.014 - 28 0.029 - 58 0.047 - 94 0.07 - 130 0.085 - 170

120 Drive with 400D1 Pumphead performance

400D1 pumphead for continuous tubing for manual (120S) and auto (120U) variable speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm
120S/D1 1 - 200rpm 0.01 – 2.2 0.03 – 5.8 0.11 – 23 0.24 – 49 0.41 – 81 0.59 – 120
120U/D1 0.1 - 200rpm 0.001 – 2.2 0.003 – 5.8 0.011 – 23 0.024 – 49 0.041 – 81 0.059 - 120

120 Drive with 400DM2 Pumphead performance

400DM2 (twin channel) pumphead for manifold tubing — Tube bore and flow rates per channel (ml/min)
Speed rpm 0.13mm 0.19mm 0.25mm 0.38mm 0.50mm
120S 1 – 100rpm 0.001-0.1 0.002-0.2 0.004-0.4 0.008-0.8 0.014-1.4
120U 0.1 – 100rpm 0.0001-0.1 0.0002-0.2 0.0004-0.4 0.0008-0.8 0.001-1.4
Speed rpm 0.64mm 0.76mm 0.89mm 1.02mm 1.14mm
120S 1 – 100rpm 0.022-2.2 0.031-3.1 0.043-4.3 0.055-5.5 0.070-7.0
120U 0.1 – 100rpm 0.002-2.2 0.003-3.1 0.004-4.3 0.006-5.5 0.007-7.0
Speed rpm 1.30mm 1.42mm 1.52mm 1.65mm 1.85mm
120S 1 – 100rpm 0.089-8.9 0.110-11 0.120-12 0.140-14 0.180-18
120U 0.1 – 100rpm 0.009-8.9 0.011-11 0.012-12 0.014-14 0.018-18
Speed rpm 2.06mm 2.29mm 2.54mm 2.79mm
120S 1 – 100rpm 0.210-21 0.250-25 0.310-31 0.360-36
120U 0.1 – 100rpm 0.021-21 0.025-25 0.031-31 0.036-36

120 Drive with 400DM3 Pumphead performance

400DM3 (three channel) pumphead for manifold tubing — Tube bore and flow rates per channel (ml/min)
Speed rpm 0.13mm 0.19mm 0.25mm 0.38mm 0.50mm
120S 1 – 100rpm 0.001-0.1 0.002-0.2 0.004-0.4 0.008-0.8 0.014-1.4
120U 0.1 – 100rpm 0.0001-0.1 0.0002-0.2 0.0004-0.4 0.0008-0.8 0.001-1.4
Speed rpm 0.64mm 0.76mm 0.89mm 1.02mm 1.14mm
120S 1 – 100rpm 0.022-2.2 0.031-3.1 0.043-4.3 0.055-5.5 0.070-7.0
120U 0.1 – 100rpm 0.002-2.2 0.003-3.1 0.004-4.3 0.006-5.5 0.007-7.0
Speed rpm 1.30mm 1.42mm 1.52mm 1.65mm 1.85mm
120S 1 – 100rpm 0.089-8.9 0.110-11 0.120-12 0.140-14 0.180-18
120U 0.1 – 100rpm 0.009-8.9 0.011-11 0.012-12 0.014-14 0.018-18
Speed rpm 2.06mm 2.29mm 2.54mm 2.79mm
120S 1 – 100rpm 0.210-21 0.250-25 0.310-31 0.360-36
120U 0.1 – 100rpm 0.021-21 0.025-25 0.031-31 0.036-36

Specifications

Technical specifications

120 Drive with 102R Pumphead120 Drive with 114DV Pumphead120 Drive with 400D1 Pumphead120 Drive with 400DM2 Pumphead120 Drive with 400DM3 Pumphead
Pumphead number of rollers2 4
Pumphead number of channels1 1 1 2 3
Flow rate range0.003 ml/min to 54 ml/min0.002 ml/min to 190 ml/min0.001 ml/min to 120 ml/min0.0001 ml/min to 36 ml/min0.0001 ml/min to 36 ml/min
Flow rate range0.00002 USGPH to 3.04 USGPH0.00002 USGPH to 3.04 USGPH0.00002 USGPH to 3.04 USGPH0.00002 USGPH to 3.04 USGPH0.00002 USGPH to 3.04 USGPH
Max. operating pressure2 bar2 bar2 bar2 bar2 bar
Max. operating pressure30 psi30 psi30 psi30 psi30 psi
Speed control ratio32:1, 320:1 200:1, 2000:1 200:1, 2000:1 100:1, 1000:1 100:1, 1000:1
Operating speed range0.1 rpm to 32 rpm0.1 rpm to 220 rpm0.1 rpm to 200 rpm0.1 rpm to 100 rpm0.1 rpm to 100 rpm
Operating temperature range 5 °C to 40 °C5 °C to 40 °C5 °C to 40 °C5 °C to 40 °C5 °C to 40 °C
Operating temperature range 40 °F to 104 °F40 °F to 104 °F40 °F to 104 °F40 °F to 104 °F40 °F to 104 °F
Weight1.55 kg1.5 kg1.65 kg1.7 kg1.7 kg
Weight3.4 lbs3.3 lbs3.6 lbs3.7 lbs3.7 lbs
Control optionsAutomatic variable speed, Fixed speed, Manual variable speed Automatic variable speed, Fixed speed, Manual variable speed Automatic variable speed, Manual variable speed Automatic variable speed, Manual variable speed Automatic variable speed, Manual variable speed
Drive control optionsF, S, U F, S, U S, U S, U S, U
StandardsCE, cETLus CE, cETLus CE, cETLus CE, cETLus CE, cETLus
Drive ingress protectionIP31, NEMA 2 IP31, NEMA 2 IP31, NEMA 2 IP31, NEMA 2 IP31, NEMA 2
Humidity(Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F)
Drive humidity(Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F) (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F)
Noise<60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m
Drive noise<60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m
Max. altitude2000 m2000 m2000 m2000 m2000 m
Drive power supplySupplied with 24 V DC mains transformer plug (range 90 V to 264 V AC 47 Hz to 63 Hz) which comes with multi-country adaptors Supplied with 24 V DC mains transformer plug (range 90 V to 264 V AC 47 Hz to 63 Hz) which comes with multi-country adaptors Supplied with 24 V DC mains transformer plug (range 90 V to 264 V AC 47 Hz to 63 Hz) which comes with multi-country adaptors Supplied with 24 V DC mains transformer plug (range 90 V to 264 V AC 47 Hz to 63 Hz) which comes with multi-country adaptors Supplied with 24 V DC mains transformer plug (range 90 V to 264 V AC 47 Hz to 63 Hz) which comes with multi-country adaptors

120 Drive with 102R Pumphead dimensions

120 Drive with 114DV Pumphead dimensions

120 Drive with 400D1 Pumphead dimensions

120 Drive with 400DM2 Pumphead dimensions

120 Drive with 400DM3 Pumphead dimensions

Materials of construction

BearingsStainless steel
DriveshaftStainless steel
DriveshaftStainless steel
Drive caseworkABS plastic
Drive caseworkABS plastic
Keypad/HMIPolyester
Drive keypad/HMIPolyester
Pumphead body assemblyAcetal copolymer (Kematal), Aluminium (anodised), Grilamid PA12, Polyacrylamide—IXEF (PARA), Polycarbonate (PC), Polyethylene (PETG), PVDF
Pumphead guardPolycarbonate (PC), Polyethylene (PETG)
Pumphead roller assemblyAcetal, MoS2 filled Nylon 6 (Nylatron), PTFE filled PBT
Pumphead rotor assemblyAluminium (anodised), FPM rubber, IXEF (Polyarylamide), Polyacrylamide—IXEF (PARA), PTFE filled PBT, Stainless steel
Pumphead trackAcetal copolymer (Kematal), Aluminium (anodised), Polyacrylamide—IXEF (PARA), PVDF
SpindlesStainless steel
SpringsStainless steel

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTS representative.

Control

Control options

Key to pump drive control
120F 120S 120U
Fixed speed Manual variable speed Auto variable speed
Manual control
Pump drives 120F 120S 120U
Fixed speed (CW direction) ✔
Variable speed 1rpm increments ✔
Variable speed 0.1rpm increments ✔
Numerical speed display ✔ ✔
Direction change ✔ ✔
Max (prime) ✔ ✔
Auto start ✔ ✔
Remote control and feedback
Pump drives 120F 120S 120U
Run/stop, direction change, auto/man toggle, alarm ✔
Analogue control
Pump drives 120F 120S 120U
Variable speed 0.1rpm increments ✔
Analogue speed input; 4-20mA, 0-10V ✔
Tacho speed output; 0-5V ✔
Security
Pump drives 120F 120S 120U
Keypad lock to protect set-up ✔ ✔
Control Ratio
120F 120S 120U
Pumphead N/A 102R 114DV 400D1 400DM2 400DM3 102R 114DV 400D1 400DM2 400DM3
Manual Fixed 1-32 rpm (32:1) 1-200 rpm (200:1) 1-200 rpm (200:1) 1-100 rpm (100:1) 1-100 rpm (100:1) 0.1-32 rpm (320:1) 0.1-200 rpm (2,000:1) 0.1-200 rpm (2,000:1) 0.1-100 rpm (1,000:1) 0.1-100 rpm (1,000:1)
Automatic N/A N/A N/A N/A N/A N/A 0.01-32 rpm (3,200:1) 0.01-200 rpm (20,000:1) 0.01-200 rpm (20,000:1) 0.01-100 rpm (10,000:1) 0.01-100 rpm (10,000:1)

Literature

Datasheet

  1. 120 Drive with 102R Pumphead datasheet (EN).pdf
    PDF - 1.3mb
  2. 120 Drive with 114DV Pumphead datasheet (EN).pdf
    PDF - 1.3mb
  3. 120 Drive with 400DM3 Pumphead datasheet (EN).pdf
    PDF - 1002.5kb
  4. 120 Drive with 400D1 Pumphead datasheet (EN).pdf
    PDF - 984.5kb
  5. 120 Drive with 400DM2 Pumphead datasheet (EN).pdf
    PDF - 977.4kb

Manuals

  1. 120 cased pump manual (EN).pdf
    PDF - 3.9mb

Pumpheads

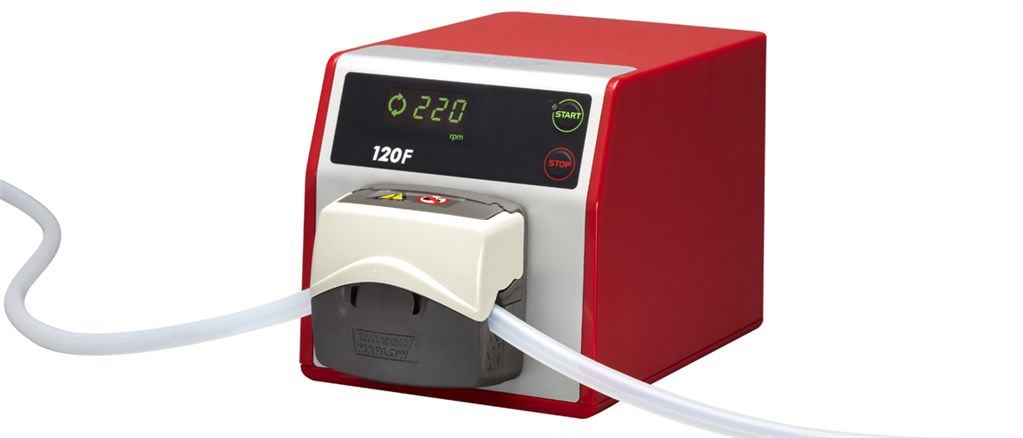

114DV flip-top four roller pumphead

The 114DV single-channel pumphead assures trouble-free continuous tube loading in seconds, high accuracy and repeatable flow. It accepts 1.6 mm wall tubing in bores sizes 0.5 mm to 4.8 mm.

  • Flow rates from 0.002 ml/min to 170 ml/min at 2 bar (30 psi)
  • Single-channel pumphead with four rollers for smooth flow
  • Recommended for continuous duty
  • Models with occlusion settings for standard

102R single-channel two roller pumphead

The 102R single-channel pumphead with two-roller rotor is suitable for continuous silicone tubing. It accepts tubing in bore sizes 0.5 mm to 4.8 mm.

  • Flow rates from 0.003 ml/min to 54 ml/min at 2 bar (30 psi)
  • Single-channel two roller pumphead
  • Sprung rotor to maximise tube life

400DM2 twin-channel pumphead

The twin-channel 400DM2 pumphead uses three-bridge manifold tubing. Ideal for ultra-low-flow metering. Available for 120S and 120U drives.

  • Flow rates from 0.0001 ml/min to 36 ml/min per channel
  • Precision-machined four roller aluminium rotor
  • Smooth, precise flow

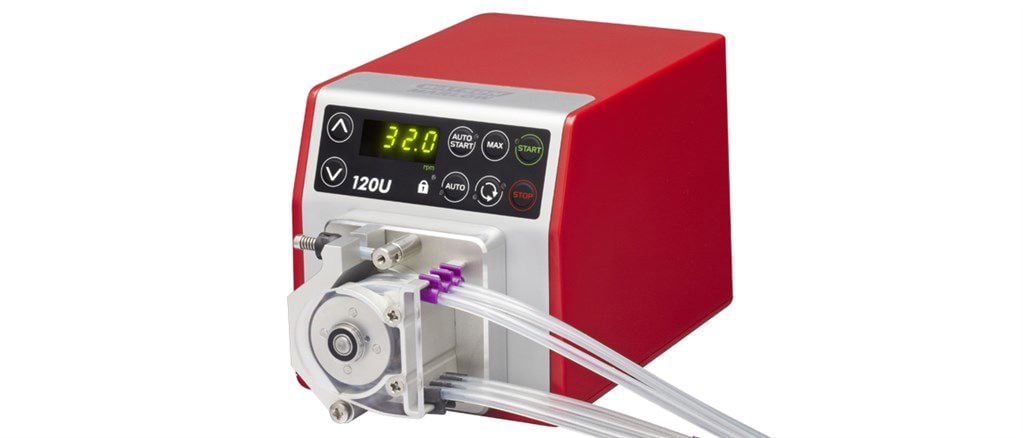

400DM3 three-channel pumphead

The three-channel 400DM3 pumphead uses three-bridge manifold tubing. Ideal for ultra-low-flow metering. Available for 120S and 120U drives.

  • Flow rates from 0.0001 ml/min to 36 ml/min per channel
  • Precision-machined four roller aluminium rotor
  • Smooth, precise flow

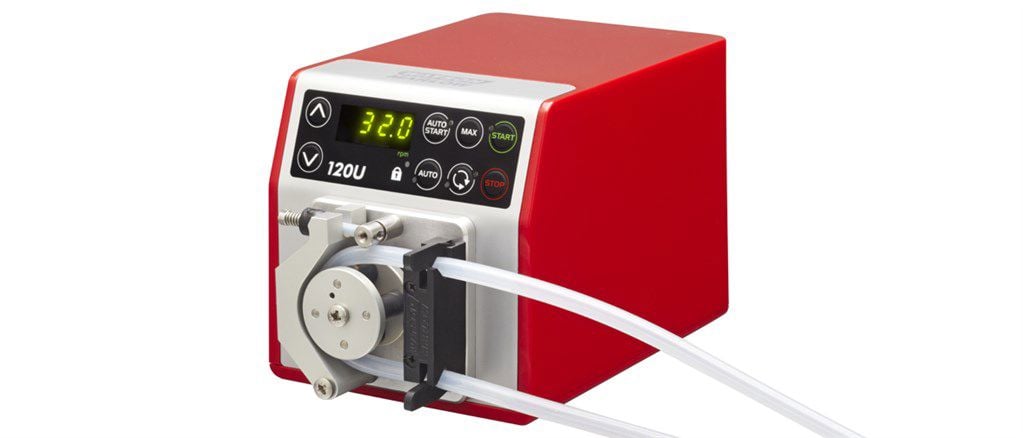

400D1 single-channel pumphead

The single-channel 400D1 pumphead accepts 1.6 mm-wall tubing from 0.5 mm to 4.0 mm.

This metering pumphead is familiar to users replacing older 101 and 400 series pumps with the 120. Suitable for 120S and 120U drives.

  • Flow rates from 0.001 ml/min to 120 ml/min
  • Precision-machined four roller aluminium rotor
  • Quick-release sprung tube clamps
  • Smooth, precise flow

Drives

  • 120U offers 0.1 rpm to 200 rpm manual remote control of the pump in 0.1 rpm increments or automatic control in 0.1 rpm increments via 4-20 mA or 0-10 V inputs. All pumpheads are available.
  • 120S offers 1 rpm to 200 rpm operation in 1 rpm increments. It features speed scrolling, priming and keypad lock. All pumpheads are available.
  • 120F is offered in five fixed flow rate versions: 10, 17, 31, 52 and 220 rpm.

Order Information

Product codes

120 Drive with 102R Pumphead product codes

Pumphead product codes
Model Description Product code
102R 102R single channel pumphead (8mm shaft) 013.7101.000
120 PSU 120V PSU kit 1A MN2634B

Notes:
The pumpheads can only be sold as 120 replacement heads
The pumpheads are not interchangable between drive models as they use different shaft designs

Tubing 1.6mm wall thickness for 102R pumphead
0.5mm 0.8mm 1.6mm 3.2mm 4.8mm
Pumpsil 913.A005.016 913.A008.016 913.A016.016 913.A032.016 913.A048.016

120 Drive with 114DV Pumphead product codes

Pumphead product codes
Model Description Product code
114DV 114DV pumphead 013.5000.00A
120 PSU 120V PSU kit 1A MN2634B

Notes:
The pumpheads can only be sold as 120 replacement heads
The pumpheads are not interchangable between drive models as they use different shaft designs

Tubing 1.6mm wall thickness for 114DV pumphead
0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm 4.8mm
Bioprene 933.0005.016 933.0008.016 933.0016.016 933.0024.016 933.0032.016 933.0040.016 933.0048.016
Pumpsil (Silicone) 913.A005.016 913.A008.016 913.A016.016 913.A024.016 913.A032.016 913.A048.016
STA-PURE® Series PCS 961.0016.016 961.0032.016 961.0048.016
Marprene 902.0005.016 902.0008.016 902.0016.016 902.0024.016 902.0032.016 902.0040.016 902.0048.016
STA-PURE® Series PFL 966.0016.016 966.0032.016 966.0048.016

120 Drive with 400D1 Pumphead product codes

Pumphead product codes
Model Description Product code
400D1 400D1 pumphead kit, 1 channel Not available*
120 PSU 120V PSU kit 1A MN2634B

Note: *Pumphead and drive should be returned to a Watson-Marlow Approved Service Centre, or a replacement pump purchased


Tubing 1.6mm wall thickness for 400D1 pumphead
0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm
Bioprene 933.0005.016 933.0008.016 933.0016.016 933.0024.016 933.0032.016
Pumpsil (Silicone) 913.A005.016 913.A008.016 913.A016.016 913.A024.016 913.A032.016
STA-PURE® Series PCS 961.0016.016 961.0032.016
Marprene 902.0005.016 902.0008.016 902.0016.016 902.0024.016 902.0032.016 902.0040.016
STA-PURE® Series PFL 966.0016.016 966.0032.016

120 Drive with 400DM2 Pumphead product codes

Pumphead product codes
Model Description Product code
400DM2 400DM2 pumphead kit, 2 channel 043.001D.D2C
120 PSU 120V PSU kit 1A MN2634B

Notes:
The pumpheads can only be sold as 120 replacement heads
The pumpheads are not interchangable between drive models as they use different shaft designs

Tubing for DM2 pumphead
Colour code Bore (mm) Pharmed® BPT Tygon® E3603 Tygon® E-LFL
orange/black 0.13 981.A013.072
orange/blue 0.25 979.A025.072 981.A025.072 988.A025.072
orange/green 0.38 979.A038.072 981.A038.072 988.A038.072
green/yellow 0.44 981.A044.072
orange/yellow 0.51 979.A051.072 981.A051.072 988.A051.072
white/yellow 0.57 981.A057.072
orange/white 0.64 979.A064.072 981.A064.072 988.A064.072
black/black 0.76 979.A076.072 981.A076.072 988.A076.072
orange/orange 0.89 979.A089.072 981.A089.072 988.A089.072
white/black 0.95 981.A095.072
white/white 1.02 979.A102.072 981.A102.072 988.A102.072
white/red 1.09 981.A109.072
red/red 1.14 979.A114.072 981.A114.072 988.A114.072
red/grey 1.22 981.A122.072
grey/grey 1.30 981.A130.072 988.A130.072
yellow/yellow 1.42 979.A142.072 981.A142.072 988.A142.072
yellow/blue 1.52 979.A152.072 981.A152.072 988.A152.072
blue/blue 1.65 979.A165.072 981.A165.072 988.A165.072
blue/green 1.75 981.A175.072
green/green 1.85 979.A185.072 981.A185.072 988.A185.072
purple/purple 2.06 979.A206.072 981.A206.072 988.A206.072
purple/black 2.29 979.A229.072 981.A229.072 988.A229.072
purple/orange 2.54 979.A254.072 981.A254.072 988.A254.072
purple/white 2.79 979.A279.072 981.A279.072 988.A279.072

120 Drive with 400DM3 Pumphead product codes

Pumphead product codes
Model Description Product code
400DM3 400DM3 pumphead kit, 3 channel 043.001D.D3C
120 PSU 120V PSU kit 1A MN2634B

Notes:
The pumpheads can only be sold as 120 replacement heads
The pumpheads are not interchangable between drive models as they use different shaft designs

Tubing for DM3 pumphead
Colour code Bore (mm) Pharmed® BPT Tygon® E3603 Tygon® E-LFL
orange/black 0.13 981.A013.072
orange/blue 0.25 979.A025.072 981.A025.072 988.A025.072
orange/green 0.38 979.A038.072 981.A038.072 988.A038.072
green/yellow 0.44 981.A044.072
orange/yellow 0.51 979.A051.072 981.A051.072 988.A051.072
white/yellow 0.57 981.A057.072
orange/white 0.64 979.A064.072 981.A064.072 988.A064.072
black/black 0.76 979.A076.072 981.A076.072 988.A076.072
orange/orange 0.89 979.A089.072 981.A089.072 988.A089.072
white/black 0.95 981.A095.072
white/white 1.02 979.A102.072 981.A102.072 988.A102.072
white/red 1.09 981.A109.072
red/red 1.14 979.A114.072 981.A114.072 988.A114.072
red/grey 1.22 981.A122.072
grey/grey 1.30 981.A130.072 988.A130.072
yellow/yellow 1.42 979.A142.072 981.A142.072 988.A142.072
yellow/blue 1.52 979.A152.072 981.A152.072 988.A152.072
blue/blue 1.65 979.A165.072 981.A165.072 988.A165.072
blue/green 1.75 981.A175.072
green/green 1.85 979.A185.072 981.A185.072 988.A185.072
purple/purple 2.06 979.A206.072 981.A206.072 988.A206.072
purple/black 2.29 979.A229.072 981.A229.072 988.A229.072
purple/orange 2.54 979.A254.072 981.A254.072 988.A254.072
purple/white 2.79 979.A279.072 981.A279.072 988.A279.072

Case studies

Recommended Products

  1. 100 series pumpheads

    100 series pumpheads

    Iconic flip-pumps for low flows up to 510 ml/min. Accurate flow performance to medium pressures.

    Pumpheads

  2. Pumpsil tubing

    Pumpsil tubing

    Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -20 ºC to 80 ºC (-4 ºF to 176 ºF).

    Tubing - peristaltic

  3. Bioprene: Thermoplastic tubing

    Bioprene: Thermoplastic tubing

    Thermoplastic tubing with long peristaltic life and low permeability. 5 ºC to 80 ºC (23 ºF to 176 ºF).

    Tubing - peristaltic

  4. GORE® STA-PURE Series PCS tubing

    GORE® STA-PURE Series PCS tubing

    Reinforced silicone tubing ideal for biopharmaceutical applications. -20 ºC to 80 ºC (-4 ºF to 176 ºF) to 7 bar (100 psi).

    Tubing - peristaltic

Related Products

  1. 300 series cased pump

    300 series cased pump

    Flow rates from 2 μl/min to 2,000 ml/min and pressures up to 2 bar (30 psi). Single or multi channel.

    Pumps - cased pumps

  2. 530 process pumps

    530 process pumps

    Flow rates to 3.5 L/min (55 USGPH) and pressures up to 7 bar (100 psi). Precise 2,200:1 speed control range.

    Pumps - cased pumps

  3. 630 mid-flow process pumps

    630 mid-flow process pumps

    Flow rates to 18 L/min (4.76 USGPM) and pressures up to 4 bar (60 psi). Precise 2,650:1 speed control range.

    Pumps - cased pumps

  4. 730 process pumps

    730 process pumps

    Flow rates to 33 L/min (8.8 USGPM) and pressures up to 2 bar (30 psi). Precise 3,600:1 speed control range.

    Pumps - cased pumps

Our process pump specialists are here to help you succeed.

To order a product or ask a question

Contact our experts
