Pump trolley
Overview

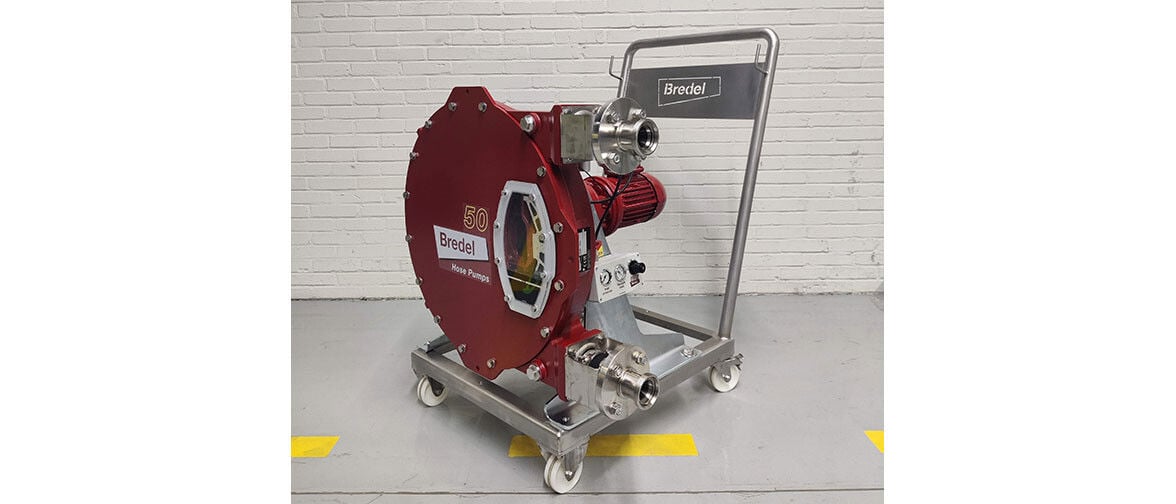

Pump trolley
Simple, robust and lightweight construction ensuring safe and easy transport of pumps in the production area
Features and benefits
- Creating flexibility in the production area
- Simple, robust and lightweight construction
- Safe and easy transport of pumps in the production area
- Robust and easy brake mechanism
- Equipped with mounting plate, earth point and cable hooks
- Ergonomic design: simple, vigorous and lightweight
- Stainless steel frame: hygienic and easy to clean
Technical summary
| Ambient Temperature Range | -30 °C to 85 °C |
Specifications
Technical specifications
| Pump trolley | |
| Weight | 19 - 21 kg |
| Weight | 42 - 46 lbs |
| Max. lifting load | 1000 kg |
| Max. lifting load | 2200 lbs |
| Pump size | A | B | C | D | E | Weight | Max. load |
|---|---|---|---|---|---|---|---|
| Bredel 10-20 | 365 | 281 | 545 | 700 | 183 | 20 [kg] / 44 [lbs] | 1000 [kg] / 2200 [lbs] |
| Bredel 25-32 | 365 | 288 | 618 | 700 | 183 | 20 [kg] / 44 [lbs] | 1000 [kg] / 2200 [lbs] |
| Bredel 40 | 455 | 293 | 723 | 700 | 183 | 19 [kg] / 42 [lbs] | 1000 [kg] / 2200 [lbs] |
| Bredel 50 | 595 | 226 | 180 | 780 | 183 | 21 [kg] / 46 [lbs] | 1000 [kg] / 2200 [lbs] |
| APEX10-20 | 365 | 281 | 545 | 700 | 183 | 20 [kg] / 44 [lbs] | 1000 [kg] / 2200 [lbs] |
| APEX28-35 | 365 | 283 | 613 | 700 | 183 | 20 [kg] / 44 [lbs] | 1000 [kg] / 2200 [lbs] |
Materials of construction
| Baseframe | Stainless steel AISI 304 |
| Wheels | PA6, Stainless steel AISI 304 |
| Mounting plate assembly | Stainless steel AISI 304 |
| Cable hook | Stainless steel AISI 304 |
Literature
Brochures
-
Bredel pumps (EN).pdf
PDF - 2.1mb
Datasheet
-
Pump trolley datasheet (EN).pdf
PDF - 785.2kb
Order Information
Product codes
| Trolley size | Article code |
|---|---|
| Bredel 10-32 / APEX10-35 | 28-1007090 |
| Bredel 40 | 28-1007091 |
| Bredel 50 | 28-1007092 |
