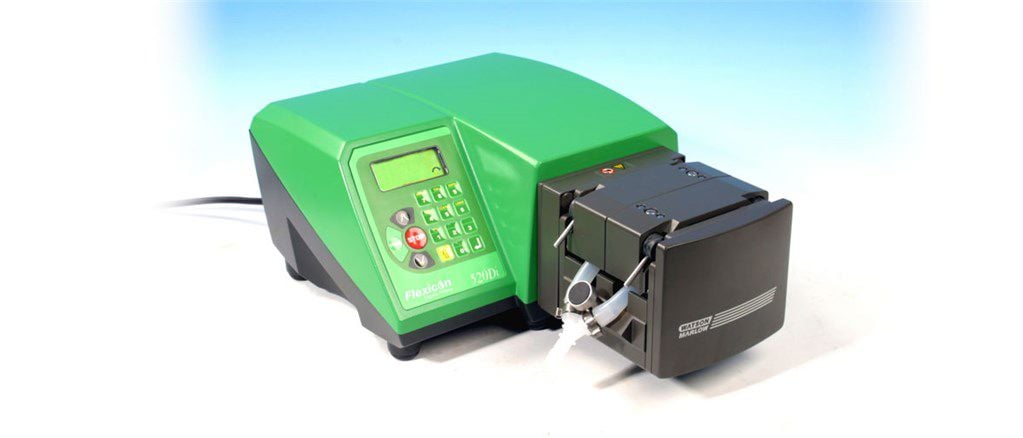

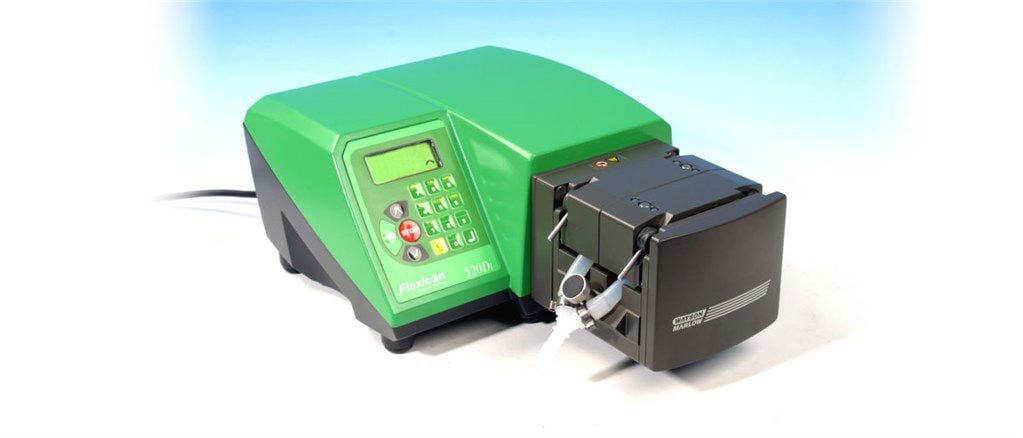

520Di dispensing pumps

520Di pumps combine industrial power and durability with unrivalled precision, pumping up to 3.5 L/min and achieving pressures up to 2 bar. The pump can store up to 50 dispensing programs using the simple screen-keypad interface. The pump outputs batch records for cGMP requirements.

  • Accurate, fast dispensing for ultimate batch consistency. Dispenses 50 ml in 2 seconds with ±0.5 % accuracy.

Features and benefits

  • Fully automated aseptic fill/finish in biopharmaceutical and pharmaceutical drug manufacturing
  • Benchtop media or reagent preparation in laboratory suites – filling or inoculating bottles, vials, Petri dishes and media bags
  • Five-year warranty NEMA2 and NEMA4X (IP66 and IP31) enclosure for high-pressure washdown environments
  • Addition of colours, dyes, flavours, vitamins, and other ingredients in food production

Technical summary

Accuracy±0.5 %

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

520Di and 520DiN performance

505L pumphead — Flow rates (ml/min)
Tube Material Speed 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing-Series PCS, GORE® STA-PURE® Pump Tubing - Series PFL 0.1-350rpm 0.04-150 0.23-800 0.42-1500 0.70-2500 0.90-3200 NA
Marprene®, Bioprene® 0.1-350rpm 0.04-130 0.17-500 0.38-830 0.67-2000 1.10-3200 NA
505L pumphead recommended dose sizes
Tube bore 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
maximum speed 350rpm Minimum dose 0.9ml 4.5ml 8.5ml 14ml 18ml 25ml
Maximum dose 15ml 75ml 150ml 250ml 300ml 400ml

Specifications

Technical specifications

520Di and 520DiN
Accuracy±0.5 %
Ingress ProtectionIP31, IP66, NEMA 2, NEMA 4X
Operating temperature range 5 °C to 40 °C
Operating temperature range 40 °F to 104 °F
Speed control ratio2200:1
Humidity(Condensing) 10 to 100 % RH, (Non-condensing) 80 % up to 31 °C (88 °F) decreasing linearly to 50 % at 40 °C (104 °F)
Noise<70dBb(A) at 1m
StandardsCE, cETLus
Power supply110/230 V, 50/60 Hz, Single-phase
Weight9.82 - 10.7 kg
Weight21.63 - 23.56 lbs
Compatible tubing size1.6 mm ID, 3.2 mm ID, 4.8 mm ID, 6.4 mm ID, 8.0 mm ID, 9.6 mm ID

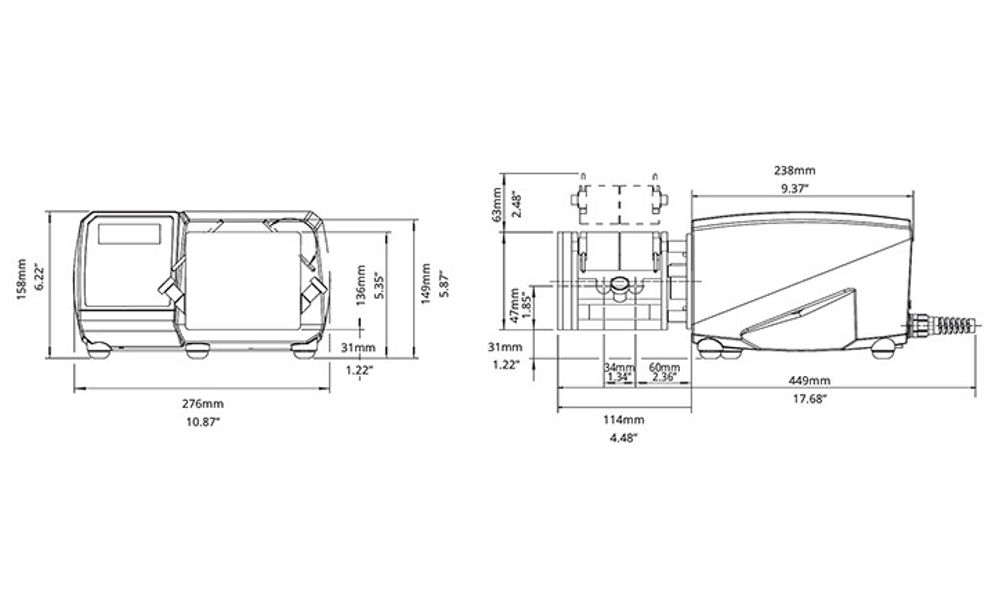

520Di and 520DiN dimensions

Materials of construction

BearingsStainless steel
CaseworkPressure die-cast aluminium LM24
Keypad/HMIPolyester
Pumphead roller assemblyStainless steel 316
SealsPTFE

Control

Control options

Pump drives 520Di 520DiN
Enclosure
Ingress protection rating IP31 IP66
Manual control
Digital speed control with full calibration to display flow ✔ ✔
Choice of flowrate or speed display ✔ ✔
Numerical keypad for entry of speed ✔ ✔
Remote control
Run/Stop, direction change, auto/manual toggle, leak detector input (via contact closure or 5V TTL or 24V industrial logic) ✔ ✔
Remote operation of Dosestart with instantaneous switch ✔ ✔
Four programmable digital status outputs through 24V, 30W relays ✔
Digital communication
Digital network serial control RS232 RS485
Security
Security code to protect set-up, programs and dose parameters ✔ ✔

Literature

Brochures

  1. Dispensing pumps (EN).pdf
    PDF - 707kb

Datasheet

  1. 520Di and 520DiN datasheet (EN).pdf
    PDF - 557.9kb

Manuals

  1. 520 Di-DiN manual (EN).pdf
    PDF - 5.1mb

Order Information

Product codes

520Di/DiN drives and 505L pumpheads

Pump and pumphead product codes
Description Partcode Description Partcode
505L Low pulse twin channel pumphead 053.4001.000 520Di (IP31) drive only 056.7171.000*
505LX Low pulse twin channel extension pumphead 053.4011.000 520DiN (IP66) drive only 056.717N.000**
505LG Low pulse twin channel pumphead for STA-PURE® tubing 053.4010.00G 505LTC Tube clamp set for 505L pumphead 059.4001.000
* Replace last zero with A, E, U, K, R, D, Z or C for 2.8m American, European, United Kingdom, Australian, Argentinian, South African, Chinese or Swiss mains plug. For example - 056.7171.00A is a 520Di drive with American mains lead.** Replace last zero with A, K, R, Z or C plug type.
Tube ordering codes
Double Y tubing elements for 520DiL dispenser
Bore (mm) Bioprene TL Marprene TL Pumpsil Accusil STA-PURE® PCS STA-PURE® PFL
1.6 933.E016.K24 902.E016.K24 913.AE16.K24 84-510-016 961.E016.K24 966.E016.K24
3.2 933.E032.K24 902.E032.K24 913.AE32.K24 84-510-032 961.E032.K24 966.E032.K24
4.8 933.E048.K24 902.E048.K24 913.AE48.K24 84-510-048 961.E048.K24 966.E048.K24
6.4 933.E064.K24 902.E064.K24 913.AE64.K24 84-510-064 961.E064.K24 966.E064.K24
8 933.E080.K24 902.E080.K24 913.AE80.K24 84-510-080 961.E080.K24 966.E080.K24
9.6 933.E096.K24 902.E096.K24 913.AE96.K24 84-510-096

Case studies

Recommended Products

  1. Accusil tubing

    Accusil tubing

    Tubing for accurate filling with excellent dispensing accuracy ± 0.5 %. Eight sizes available.

    Single-use assemblies

  2. Fill/finish single-use assemblies

    Fill/finish single-use assemblies

    WMArchitectTM fill/finish single-use assemblies safeguard your therapeutic during the filling process with a wide range of sterility-assured assembly configurations.

    Single-use assemblies

Related Products

  1. 620Di dispensing pump

    620Di dispensing pump

    Dispensing pump for flow rates to 18 L/min (4.76 USGPM) and pressures up to 4 bar (60 psi).

    Aseptic filling - benchtop fillers

  2. PF22

    PF22

    Tabletop aseptic filling machine for <5 ml to >5000 ml. Accuracy of ±0.5 % on most volumes prevents costly overfilling.

    Aseptic filling - benchtop fillers

  3. PF7/PF7+ table top filler

    PF7/PF7+ table top filler

    Tabletop aseptic filling machine for <0.2 ml to >250 ml. Accuracy of ±0.5 % on most volumes prevents costly overfilling.
