Tubing - peristaltic

Tube elements for panel mount pumps

Order a sample
Order a sample

Overview

Precision tubing for panel mount pumps provides long life and excellent chemical compatibility. Continuous tubing and tube elements are available in seven materials and up to 50 bore/wall thicknesses for the full range of pumps. Our tubing complements our peristaltic pumps and enables our customers to deploy end-to-end solutions for their pumping requirements.

Features and benefits

  • Consistent and accurate flow rates
  • Optimised tube life
  • Tubing elements are optimal fitted to the design of each pump type

Share

Specifications

Technical specifications

400/A tube elements400/D tube elements400/M tube elements400/N tube elements400/DM tube elements400/L tube elements
Bore size0.13 - 2.06 mm0.5 - 3 mm1.6 - 4 mm0.5 - 3 mm0.8 - 4.8 mm
Wall thickness0.85 mm1 mm1.6 mm1 mm1.6 mm
Compatible pumps400/A 400F/D2, 400F/D3 400F/M1 400F/N2 400F/L2

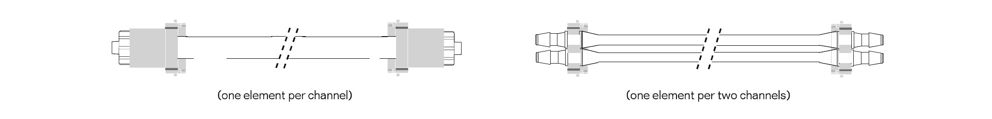

400/A tube elements dimensions

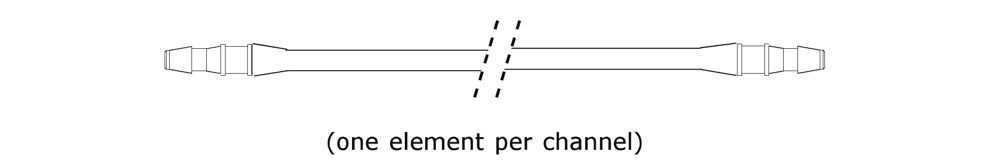

400/D tube elements dimensions

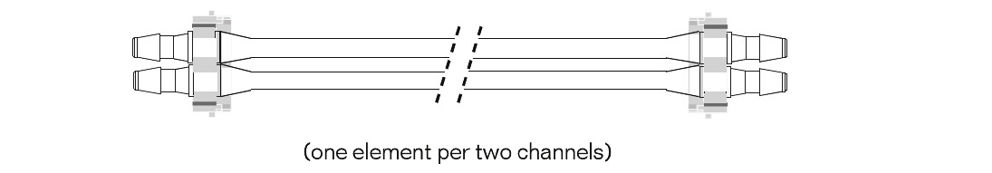

400/M tube elements dimensions

400/N tube elements dimensions

Materials of construction

MaterialPlatinum-cured silicone, PVC, Santoprene, Silicone, Thermoplastic elastomer
TubingPVC, Silicone, Thermoplastic elastomer
Connector materialPolypropylene

Literature

Brochures

  1. Fittings for science and industry (EN).pdf
    PDF - 10,8mb

Datasheet

  1. 400 L tube elements datasheet (EN).pdf
    PDF - 210,1kb
  2. 400A standard tube elements datasheet (EN).pdf
    PDF - 492,7kb
  3. 400 N tube elements datasheet (EN).pdf
    PDF - 280,4kb
  4. 400 VM tube elements datasheet (EN).pdf
    PDF - 518,2kb
  5. 400 D tube elements datasheet (EN).pdf
    PDF - 257,5kb
  6. 400 M tube elements datasheet (EN).pdf
    PDF - 264,7kb
