400/M series panel mount pumps

Overview

400/M, N gangable medium-flow pumps

This simple pump uses tube elements and Luer connectors for easy fitting and replacement, particularly when mounted inside instruments. Tubing is fully enclosed in the housing. Supported by ball bearings, the pump shaft ensures long motor life. It is available as pumpheads only, or with four standard, compact DC motors as well as with stepper motors.

400/M single-channel pump

One channel per pumphead, and up to four pumpheads can be ganged together on the same motor. A maximum of four channels offers great flexibility for multichannel applications.

400/N two-channel pump

Two channels per pumphead, and up to four pumpheads can be ganged together on the same motor, offering eight channels in total.

Features and benefits

  • From one to eight channels in a compact design
  • 400/M works with 1.6 mm wall thickness tubing and Luer connectors
  • 400/N works with 1.0 mm wall thickness tubing and barbed fittings
  • Complete pump with motor, or as pumphead only
  • Pumphead available in PVDF for greater chemical compatibility

Technical summary

Motor typesFixed speed DC motor, Stepper motor, Synchronous AC motor
Pumphead optionsM1, M2, M3, N2, N4, N6

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

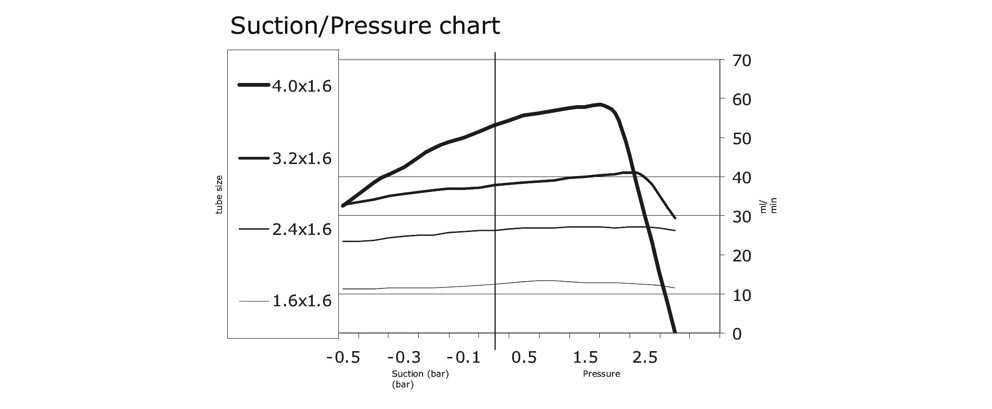

400 FD/M1 pump performance

Flow rates (ml/min) 1.6 mm wall Bioprene tubing
Tube bore (mm) Speed (rpm)
4 5 10 12 20 25 40 70 75 100 160 200 270 350
1.6 0.44 0.55 1.1 1.32 2.2 2.7 4.4 7.66 8.2 11 17.4 22 29 38
2.4 0.96 1.2 2.4 2.9 4.8 6.0 9.6 16.8 18 24 38.3 48 64.8 84
3.2 1.6 2.1 4.1 4.9 8.2 10 16 28.8 31 41 65.4 82 111.4 144
4.0 2.4 3.0 5.9 7.1 11 14 23 41 44 59 94.6 118 160 207

400 FD/M2 pump performance

Tube bore and flow rates (ml/min)
Speed rpm 0.13 mm 0.19 mm 0.25 mm 0.38 mm 0.50 mm 0.63 mm 0.76 mm 0.88 mm 1.02 mm 1.14 mm
4 0.004 0.008 0.016 0.032 0.06 0.09 0.12 0.17 0.22 0.28
5 0.005 0.010 0.020 0.040 0.07 0.11 0.16 0.22 0.28 0.35
10 0.010 0.020 0.040 0.08 0.14 0.22 0.31 0.43 0.55 0.70
12 0.012 0.024 0.048 0.10 0.17 0.26 0.37 0.52 0.66 0.84
15 0.015 0.030 0.06 0.12 0.21 0.33 0.47 0.65 0.83 1.1
20 0.020 0.040 0.08 0.16 0.28 0.44 0.62 0.86 1.1 1.4
25 0.025 0.050 0.10 0.20 0.35 0.55 0.78 1.1 1.4 1.8
40 0.040 0.08 0.16 0.32 0.56 0.88 1.2 1.7 2.2 2.8
50 0.050 0.010 0.20 0.40 0.70 1.1 1.6 2.2 2.8 3.5
75 0.08 0.15 0.30 0.60 1.1 1.7 2.3 3.2 4.1 5.3
100 0.10 0.20 0.40 0.80 1.4 2.2 3.1 4.3 5.5 7.0
Speed rpm 1.29 mm 1.42 mm 1.52 mm 1.65 mm 1.85 mm 2.05 mm 2.29 mm 2.54 mm 2.79 mm
4 0.36 0.44 0.48 0.56 0.72 0.84 1.04 1.24 1.44
5 0.45 0.55 0.60 0.70 0.90 1.05 1.30 1.55 1.80
10 0.89 1.10 1.20 1.40 1.80 2.1 2.6 3.1 3.6
12 1.07 1.32 1.44 1.68 2.2 2.5 3.1 3.7 4.3
15 1.34 1.65 1.80 2.1 2.7 3.2 3.9 4.7 5.4
20 1.78 2.2 2.4 2.8 3.6 4.2 5.2 6.2 7.2
25 2.2 2.8 3.0 3.5 4.5 5.3 6.5 7.8 9.0
40 3.6 4.4 4.8 5.6 7.2 8.4 10 12 14
50 4.5 5.5 6.0 7.0 9.0 11 13 16 18
75 6.7 8.3 9.0 11 14 16 20 23 27
100 8.9 11 12 14 18 21 26 31 36

400 FD/M3 pump performance

Tube bore and flow rates (ml/min)
Speed rpm 0.13 mm 0.19 mm 0.25 mm 0.38 mm 0.50 mm 0.63 mm 0.76 mm 0.88 mm 1.02 mm 1.14 mm
12 0.012 0.024 0.048 0.10 0.17 0.26 0.37 0.52 0.66 0.84
15 0.015 0.030 0.06 0.12 0.21 0.33 0.47 0.65 0.83 1.1
20 0.020 0.040 0.08 0.16 0.28 0.44 0.62 0.86 1.1 1.4
25 0.025 0.050 0.10 0.20 0.35 0.55 0.78 1.1 1.4 1.8
40 0.040 0.08 0.16 0.32 0.56 0.88 1.2 1.7 2.2 2.8
50 0.050 0.010 0.20 0.40 0.70 1.1 1.6 2.2 2.8 3.5
75 0.08 0.15 0.30 0.60 1.1 1.7 2.3 3.2 4.1 5.3
100 0.10 0.20 0.40 0.80 1.4 2.2 3.1 4.3 5.5 7.0
Speed rpm 1.29 mm 1.42 mm 1.52 mm 1.65 mm 1.85 mm 2.05 mm 2.29 mm 2.54 mm 2.79 mm
12 1.07 1.32 1.44 1.68 2.2 2.5 3.1 3.7 4.3
15 1.34 1.65 1.80 2.1 2.7 3.2 3.9 4.7 5.4
20 1.78 2.2 2.4 2.8 3.6 4.2 5.2 6.2 7.2
25 2.2 2.8 3.0 3.5 4.5 5.3 6.5 7.8 9.0
40 3.6 4.4 4.8 5.6 7.2 8.4 10 12 14
50 4.5 5.5 6.0 7.0 9.0 11 13 16 18
75 6.7 8.3 9.0 11 14 16 20 23 27
100 8.9 11 12 14 18 21 26 31 36

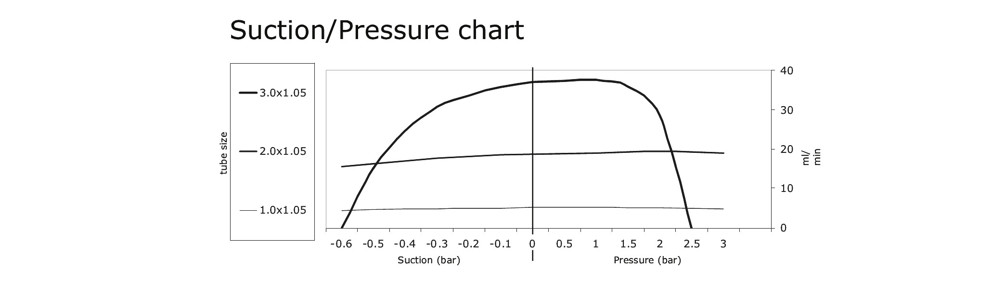

400 FD/N2 pump performance

Flow rates (ml/min) 1.0 mm wall Bioprene tubing
Tube bore (mm) Speed (rpm)
4 5 10 12 20 25 40 70 75 100 160 200 270
0.5 0.05 0.07 0.13 0.16 0.26 0.33 0.52 0.93 1.0 1.3 2.09 2.6 3.58
1.0 0.2 0.25 0.5 0.6 1.0 1.3 2.0 3.54 3.8 5.0 8.0 10 12.8
2.0 0.72 0.9 1.8 2.2 3.6 4.5 7.2 12.2 13 18 28.6 36 48.6
3.0 1.3 1.7 3.3 4.0 6.6 8.3 13 23.2 25 33 52.9 66 88.4

Specifications

Technical specifications

400 FD/M1 pump400 FD/N2 pump400 FD/N4 pump400 FD/N6 pump400 ST/M1 pump400 ST/N2 pump
Motor typesFixed speed DC motor Fixed speed DC motor Fixed speed DC motor Fixed speed DC motor Stepper motor Stepper motor
Pumphead optionsM1 N2 N4 N6 M1 N2
Pumphead number of channels1 2 4 6 1 2
Supply voltage24 V DC 24 V DC 24 V DC 24 V DC
Operating temperature range -10 °C to 45 °C-10 °C to 45 °C-10 °C to 45 °C-10 °C to 45 °C
Power consumption5 W 5 W 5 W 5 W
Gearbox ratioSpur; 30:1, 75:1, 250:1 Spur; 200:1, Spur; 30:1, Spur; 75:1
Compatible tubing bore size 1.6, 2.4, 3.2, 4 mm0.5, 1, 2, 3 mm0.5, 1, 2, 3 mm0.5, 1, 2, 3 mm1.6, 2.4, 3.2, 4 mm0.5, 1, 2, 3 mm
Compatible tubing wall thickness 1.6 mm1 mm1 mm1 mm1.6 mm1 mm

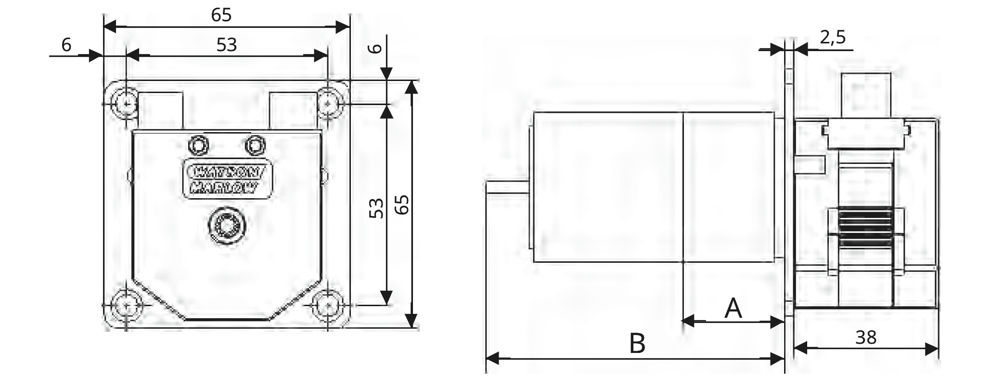

400 FD/M1 pump dimensions

Motor type 400FD/M1 5 W
Dimension A L=26.5 mm x ⌀ 9.6 mm
Dimension B L=85.3 mm* x ⌀ 39.6 mm

*=maximum length behind mounting plate

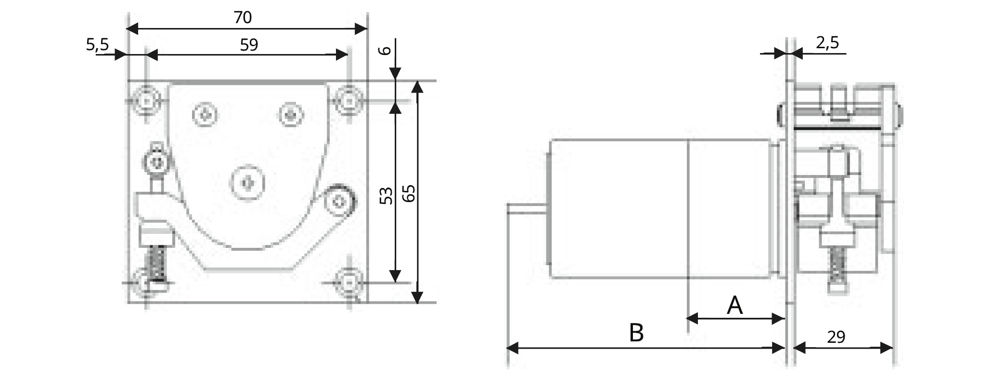

400 FD/M2 pump dimensions

Motor type Standard DC 5 W Economy DC 5 W Brushless DC 5 W
Dimension A L=26.5 mm x ⌀ 39.6 mm L=26.5 mm x ⌀ 39.6 mm L=26.5 mm x ⌀ 39.6 mm
Dimension B L=87.3 mm* x ⌀ 39.6 mm L=81.0 mm* x ⌀ 39.6 mm L=77.0 mm* x ⌀ 39.6 mm

*=maximum length behind mounting plate

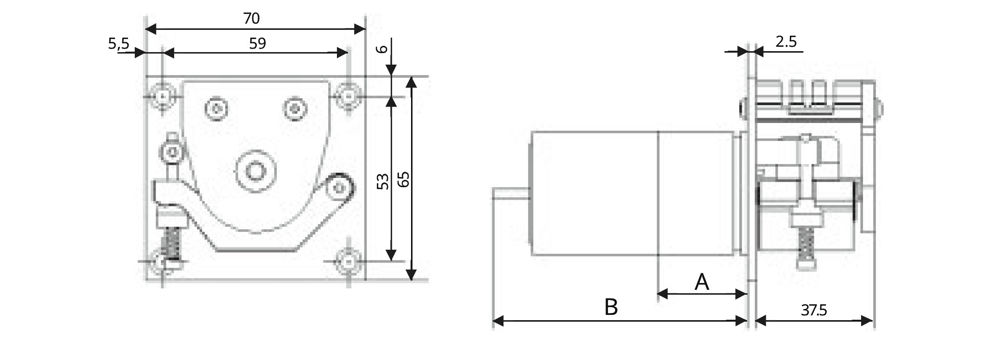

400 FD/M3 pump dimensions

Motor type Standard DC 5 W Economy DC 5 W Brushless DC 5 W
Dimension A L=26.5 mm x ⌀ 39.6 mm L=26.5 mm x ⌀ 39.6 mm L=26.5 mm x ⌀ 39.6 mm
Dimension B L=87.3 mm* x ⌀ 39.6 mm L=81.0 mm* x ⌀ 39.6 mm L=77.0 mm* x ⌀ 39.6 mm

*=maximum length behind mounting plate

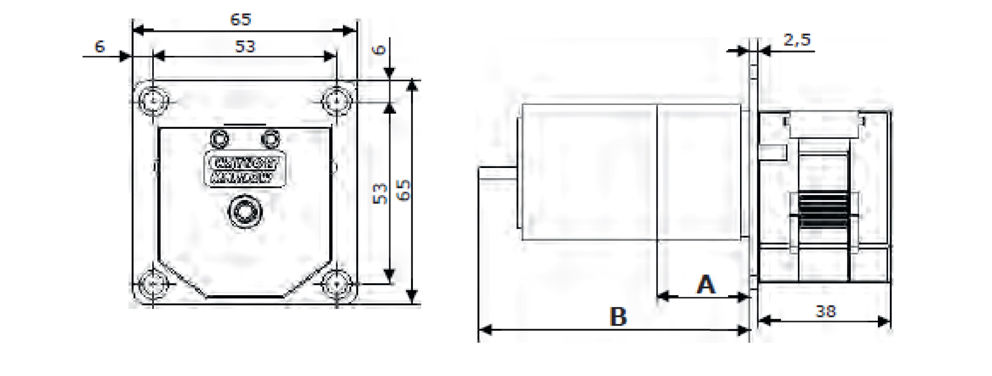

400 FD/N2 pump dimensions

Motor type 400FD/N2 5 W
Dimension A L=26.5 mm x ⌀ 39.6 mm
Dimension B L=85.3 mm* x ⌀ 39.6 mm

*=maximum length behind mounting plate

Materials of construction

Pumphead body assemblyAcetal (grey)
Pumphead rotor assemblyAcetal (black), Stainless steel
Pumphead roller assemblyAcetal (black)
Face plateAnodised aluminium
DriveshaftAcid resistant stainless steel
Tube clamp assemblyAcetal (grey)

Information listed covers the complete range. For detailed specifications of individual models/components refer to product reference manual or contact WMFTS representative.

Literature

Brochures

  1. Medical devices and diagnostics brochure (EN).pdf
    PDF - 1,5mb

Datasheet

  1. 400 FD M2 datasheet (EN).pdf
    PDF - 534,5kb
  2. 400 FD M1 datasheet (EN).pdf
    PDF - 608,7kb
  3. 400 FD N2 datasheet (EN).pdf
    PDF - 720,8kb
  4. 400 FD M3 datasheet (EN).pdf
    PDF - 518,6kb

Order Information

Product codes

400 FD/M1 pump product codes

Pump product codes
Motor type Voltage Speed (rpm) Product code
Economy DC 5 W 24 VDC 350 040.BU1M.E1C
Economy DC 5 W 24 VDC 200 040.BS1M.E1C
Economy DC 5 W 24 VDC 75 040.BN1M.E1C
Economy DC 5 W 24 VDC 25 040.BC1M.E1C
Brushless DC 5 W 24 VDC 270 040.FT1M.E1C
Brushless DC 5 W 24 VDC 160 040.FQ1M.E1C
Brushless DC 5 W 24 VDC 70 040.FK1M.E1C
Brushless DC 5 W 24 VDC 20 040.F91M.E1C

Tubing product codes
Bore/Wall Bioprene Tygon® E-3603 Peroxide cured Silicone Connects to
1.6/1.6 mm 049.EF6M.E16 049.ET6M.E16 049.EH6M.E16 FTLL, see transfer connections below
2.4/1.6 mm 049.EF6M.E24 049.ET6M.E24 049.EH6M.E24 FTLL, see transfer connections below
3.2/1.6 mm 049.EF6M.E32 049.ET6M.E32 049.EH6M.E32 FTLL, see transfer connections below
4.0/1.6 mm 049.EF6M.E40 049.ET6M.E40 049.EH6M.E40 FTLL, see transfer connections below
Transfer connections
Connects to Ordering codes
Tube bore 1.6 FTLL210-6005
Tube bore 2.4 FTLL220-6005
Tube bore 3.2 FTLL230-6005
Tube bore 4.0 FTLL240-6005
Tube bore 4.8 FTLL250-6005

400 FD/M2 pump product codes

Pump product codes
Motor type Voltage Speed (rpm) Product code
Standard DC 5 W 12-15 VDC 40 040.DH1D.M3M
Economy DC 5 W 12 VDC 75 040.AN1D.M3M
Economy DC 5 W 24 VDC 75 040.BN1D.M3M
Economy DC 5 W 12 VDC 25 040.AC1D.M3M
Economy DC 5 W 24 VDC 25 040.BC1D.M3M
Brushless DC 5 W 24 VDC 50 040.FK1D.M3M
Brushless DC 5 W 24 VDC 15 040.F91D.M3M
Syncronous AC 2 W 110 VAC (60 HZ) 25 040.HC1D.M2M
Syncronous AC 2 W 220 VAC (50 HZ) 20 040.JA1D.M2M
Syncronous AC 2 W 110 VAC (60 HZ) 12 040.H81D.M2M
Syncronous AC 2 W 220 VAC (50 HZ) 10 040.J71D.M2M
Syncronous AC 2 W 110 VAC (60 HZ) 5 040.H41D.M2M
Syncronous AC 2 W 220 VAC (60 HZ) 4 040.J31D.M2M

400 FD/M3 pump product codes

Pump product codes
Motor type Voltage Speed (rpm) Product code
Standard DC 5 W 12-15 VDC 40 040.DH1D.M3M
Economy DC 5 W 12 VDC 75 040.AN1D.M3M
Economy DC 5 W 24 VDC 75 040.BN1D.M3M
Economy DC 5 W 12 VDC 25 040.AC1D.M3M
Economy DC 5 W 24 VDC 25 040.BC1D.M3M
Brushless DC 5 W 24 VDC 50 040.FK1D.M3M
Brushless DC 5 W 24 VDC 15 040.F91D.M3M

400 FD/N2 pump product codes

Pump product codes
Motor type Voltage Speed (rpm) Product code
Economy DC 5 W 24 VDC 200 040.BS1N.N2C
Economy DC 5 W 24 VDC 75 040.BN1N.N2C
Economy DC 5 W 24 VDC 25 040.BC1N.N2C
Brushless DC 5 W 24 VDC 270 040.FT1N.N2C
Brushless DC 5 W 24 VDC 160 040.FQ1N.N2C
Brushless DC 5 W 24 VDC 70 040.FK1N.N2C
Brushless DC 5 W 24 VDC 20 040.F91N.N2C

Tubing product codes
Bore/Wall Bioprene Peroxide cured Silicone Connects to
0.5/1.0 mm 049.EF6N.N05 - Tube bore 3.0
1.0/1.0 mm 049.EF6N.N10 049.EH6N.N10 Tube bore 3.0
2.0/1.0 mm 049.EF6N.N20 049.EH6N.N20 Tube bore 3.0
3.0/1.0 mm 049.EF6N.N30 049.EH6N.N30 Tube bore 3.0
