Pumps - panel mount pumps

100 series panel mount pumps

Overview

100 series low-flow pumps

The 100 series combines performance, practicality and design. With its iconic flip-top design it is an industry standard OEM product in medical device, biotechnology and diagnostic applications, and very popular in many other applications too. The 100 series is popular for it’s accurate, repeatable and low-pulse flow rates, attractive design and compact size.

Features

  • High accuracy and repeatable flows for single-channel, continuous tubing applications
  • Flow rates up to 349 mL/min for continuous use and up to 510 mL/min for intermittent use
  • 0.5 – 4.8 mm bore, 1.6 mm wall thickness tubing
  • High accuracy and repeatable flows up to medium pressures
  • Error-free tube change in seconds
  • Four-roller 114 and six-roller 116 for lower pulsation
  • DV version for tube life and DVP for higher pressure
  • Range of colour options
  • Other pumphead options include cover-open sensor, rotation sensor and customised occlusion

Drives

  • 100DriveSure: 12 V to 48 V DC integrated stepper motor with Industrial Ethernet and analogue control options, sealed mounting plate and PC software (WM Connect)
  • 100ST: compact stepper motor for precise, digital speed control
  • 100FD: 12 V and 24 V simple DC motors at a range of speeds
  • 100VDL: brushless DC direct drive with integrated 0-4V analogue control

Technical summary

Motor typesDriveSure brushless DC motor, Fixed speed DC motor, NEMA 17 stepper motor, Stepper motor, Variable speed brushless DC motor
Pumphead options114DV, 114DVP, 116DV, 116DVP
StandardsBS EN 55011-2016+A2-2021, BS EN 61010-1, BS EN IEC 61326-1-2021, CE, CSA C22.2 No. 61010-1-12/AMD1:2018, EN 61010-1:2010/A1:2019, FCC 47CFR (Part 15), IEC 61010-1:2010/AMD1:2016, RoHS, UL 61010-1:2012/R:2019-07

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

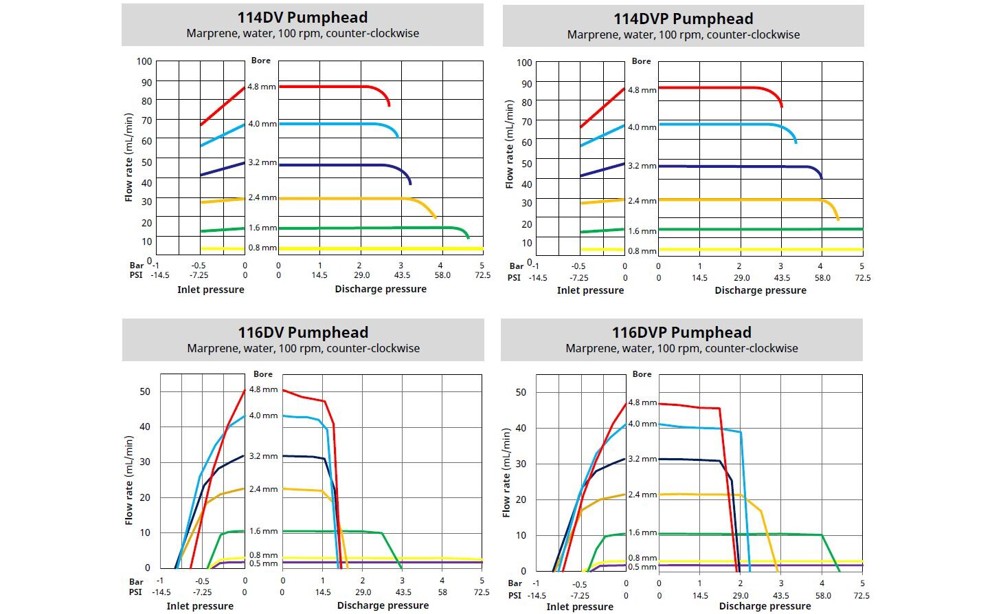

Performance

100 DriveSure ADC/En/Pn performance

Flow Rate (mL/min) by tube bore based on 0.1 rpm (Min) to 410 rpm (Max)
Pumphead 0.5 mm 0.8 mm 1.6 mm 2.4 mm 3.2 mm 4.0 mm 4.8 mm
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
114DV 0.002 9.3 0.004 17.4 0.014 57.4 0.029 118 0.048 195 0.068 277 0.085 349
114DVP 0.002 9.3 0.004 17.4 0.014 57.4 0.029 118 0.048 195 0.068 277 0.085 349
116DV 0.002 7.1 0.003 12.0 0.011 43.4 0.022 90.8 0.032 127 0.043 158 0.048 184
116DVP 0.002 7.2 0.003 12.1 0.010 43.5 0.021 88.1 0.031 127 0.040 152 0.046 167

Performance data is based on a 48 V DC power supply, pumping water, with 0 bar inlet and discharge pressure. Actual performance is dependent on power supply voltage (DriveSure range 12 V to 48 V DC). For further information contact your local Watson-Marlow representative.

100 ST/DV pump performance

Flow rates (ml/min) Tubing 1.6 mm wall
Tube bore (mm) (ml/rev) Speed (rpm)
100 400 600 (intermittent)
0.5 0.02 2.2 9.1 13.5
0.8 0.04 4.3 17 26
1.6 0.14 14 56 84
2.4 0.29 29 115 175
3.2 0.47 47.5 190 285
4.0 0.67 67 270 405
4.8 0.85 85 340 510
Motorcode (P/N) Current A/phase max speed low torque max speed medium torque max speed high torque
Z2 1.2 600* 400* 300*

*Approximate figures, tested with a simple bipolar drive at 24 V DC and at nominal current, using speed ramp

Custom Options
No visible rotation - covered holes
Logic off-switch and rotation sensor
Custom colours
Custom occlusion settings
Flow rates (ml/min) Tubing 1.6 mm wall
Tube bore (mm) (ml/rev) Speed (rpm)
60 190 350*
0.5 0.02 1.4 4.3 8.0
0.8 0.04 2.6 8.2 15
1.6 0.14 8.4 26.5 49
2.4 0.29 17.5 55 100
3.2 0.47 28.5 90.5 165
4.0 0.67 40.5 128 235
4.8 0.85 51 160 300

*Low pressure applications only. Pumpsil up to 4.8 mm bore. Other tubing up to 3.2 mm bore.

Custom options
Drives Encoder, three pulses per motor revolution
Alternative speeds available
Pumpheads No visible rotation - covered holes
Logic off switch and rotation sensor
Custom colours
Models for thin wall tubing
Custom occlusion settings

100DriveSure/DV performance

Flow rates (ml/min) Tubing 1.6 mm wall
Tube bore (mm) Speed (rpm)
8 408
0.5 0.16 8
0.8 0.32 16
1.6 1.10 57
3.2 3.80 194
4.8 6.80 347

Flow rates are for guidance only at 0 bar. Always test pumphead flow capability in the relevant fluid system

Specifications

Technical specifications

100 DriveSure ADC/En/Pn100 ST/DV pump100 FD/DV pump
Motor typesNEMA 17 stepper motor Stepper motor Fixed speed DC motor
Pumphead options114DV, 114DVP, 116DV, 116DVP 114DV 114DV
Number of rollers4, 6 4 4
Number of channels1 1 1
Flow rate range0.002 ml/min to 349 ml/min2.2 ml/min to 510 ml/min1.4 ml/min to 300 ml/min
Operating speed range0.1 rpm to 410 rpm0 rpm to 600 rpm to 350 rpm
Speed Resolution0.1 rpm
Supply voltage12 V to 48 V DC 24 V DC 12 V DC, 24 V DC
Operating temperature range 5 °C to 40 °C-10 °C to 45 °C-10 °C to 45 °C
Operating temperature range 41 °F to 104 °F14 °F to 113 °F14 °F to 113 °F
Rated Power75 W
Power consumption10W 5W
Control options0–10 V, 2–2000 Hz, 4–20 mA, EtherNet/IP™, Fixed speed, Prime speed, PROFINET® Fixed speed
AlarmsCover-open, Hardware fault, Over current, Over temperature, Software fault, Speed, Stall, Under/over voltage
OutputsFault, Tacho
External InputsPrime switch
Weight0.8 - 0.9 kg0.45 kg0.3 kg
Weight1.764 - 1.984 lbs
LocationIndoor, Enclosure Indoor, Enclosure Indoor, Enclosure
Ingress ProtectionIP66 capable panel sealing
Humidity80 % up to 31 °C (88 °F), decreasing linearly to 50 % at 40 °C (104 °F)
Noise<60 dB(A) EMI noise reduction filter
Max. altitude2000 m
Max. altitude6561 ft
Gearbox ratioSpur; 100:1, 30:1, 15:1
StandardsBS EN 55011-2016+A2-2021, BS EN IEC 61326-1-2021, CSA C22.2 No. 61010-1-12/AMD1:2018, EN 61010-1:2010/A1:2019, FCC 47CFR (Part 15), IEC 61010-1:2010/AMD1:2016, UL 61010-1:2012/R:2019-07
Certification and complianceCB Certificate, EMC, NRTL certification
Compatible tubing bore size 0.5, 0.8, 1.6, 2.4, 3.2, 4, 4.8 mm0.5, 0.8, 1.6, 2.4, 3.2, 4, 4.8 mm0.5, 0.8, 1.6, 2.4, 3.2, 4, 4.8 mm
Compatible tubing wall thickness 1.6 mm1.6 mm1.6 mm
DC Resistance/Inductance3.5 ohm/6.4 mH +/-10%
Required DriverBipolar, up to 1.2A
Approximate Motor LifeUp to 3000hrs
Outputs are for ADC version only. Alarms are for EtherNet/IP™ & PROFINET® versions only. For detailed specifications of individual models refer to product reference manual or contact WMFTS representative.

100 DriveSure ADC/En/Pn dimensions

A B C D E F
mm in mm in mm in mm in mm in mm in
73 2.87 74 2.91 98 3.85 128 5.04 73 2.87 89 3.50

100 ST/DV pump dimensions

100 FD/DV pump dimensions

Materials of construction

Pumphead body assemblyGrilamid PA12, Polyacrylamide—IXEF (PARA)
Pumphead rotor assemblyFPM rubber, Polyacrylamide—IXEF (PARA), PTFE filled PBT, Stainless steel
Pumphead roller assemblyPTFE filled PBT
BearingsStainless steel
Adaptor plateIXEF PARA
DriveshaftStainless steel
SpringsStainless steel
MotorAluminium, Plasma nitride coated stainless steel
Controller HousingABS/PC, Aluminium
Mounting plate assemblyAnodised aluminium, Nitrile, Polyacrylamide (PARA)-halogen free, UL94 V-0 rated, Thermoplastic elastomer (TPE)

Information listed covers the complete range. For detailed specifications of individual models/components refer to product reference manual or contact WMFTS representative.

Literature

Datasheet

  1. 100 DriveSure ADCEnPn datasheet (EN).pdf
    PDF - 1,3mb
  2. 100 VDLDV datasheet (EN).pdf
    PDF - 1,2mb
  3. 100 STDV datasheet (EN).pdf
    PDF - 1,2mb
  4. 100 FDDV datasheet (EN).pdf
    PDF - 1,2mb
  5. 100 DSDV datasheet (EN).pdf
    PDF - 837,4kb

Manuals

  1. 114 pumpheads manual (EN).pdf
    PDF - 1,6mb
  2. DriveSure ADC En Pn manual (EN).pdf
    PDF - 4,7mb

Other Resources

  1. 100 DriveSure En.step
    STEP - 25,9mb
  1. GSDML-V2.42-Watson Marlow-WM DrivesurePn-20230427.zip
    ZIP - 3,9kb
  2. WatsonMarlowConnectInstaller-1.16.1.zip
    ZIP - 67mb
  3. WatsonMarlowConnectInstaller-1.17.0.zip
    ZIP - 67mb
  1. drivesure-firmware-1.17.0.bundle
    BUNDLE - 598,2kb
  2. drivesure-firmware-1.16.1.bundle
    BUNDLE - 596,8kb
  1. WM-DrivesureEn-v1-6.eds
    EDS - 84,4kb
  2. WM-DrivesureEn-rev-1-5.eds
    EDS - 84,7kb
  1. 100 panel cutout.stp
    STP - 43,4kb

Videos

Order Information

Product codes

100 DriveSure ADC/En/Pn product codes

A
B
C
D
E
F
Product
Control
Cable length
Pumphead colour
Pumphead
Pressure
0 = Complete pump 4 = ADC 1 = 1 m (3.28 ft) cable 0 = No pumphead 0 = No pumphead 0 = No pumphead
6 = Drive only 8 = En (EtherNet/IPTM) 3 = 3 m (9.84 ft) cable 1 = Standard colour A = 114 S = Standard pressure
9 = Pn (PROFINET®) 2 = Black B = 116 P = Plus pressure
3 = White
Accessories and Spares
Product Product code
100 Series DriveSure Sealed Mounting Plate / Sensor 019.IPMP.DVS
DriveSure cable pack - 24 V power supply/USB-C - trials only * 009.24CP.DVS
DriveSure cable pack - 48 V power supply/USB-C - trials only * 009.48CP.DVS
1 m Power Cable DriveSure ADC/En/Pn 009.1PW.DVS
3 m Power Cable DriveSure ADC/En/Pn 009.3PW.DVS
1 m Control Cable DriveSure ADC 009.1CC.DVS
3 m Control Cable DriveSure ADC 009.3CC.DVS
Ethernet Cable, RJ45 to RJ45, CAT 5e SHIELDED, 3m 059.9123.000
PROFINET® Cable, RJ45 to RJ45, CAT 5e SHIELDED, 3m 059.9128.000

*Cable packs do not include mains power lead. If required, order power leads suitable for your region.

100 ST/DV pump product codes

Pump product codes
Description Supply Speed (rpm) with 114DV with 114DVP
114ST stepper motor drive 24 VDC 0 - 600 010.5Z2S.00A 010.5Z2S.P0A
Tubing product codes for 114DV and 114DVP pumpheads
Bore/wall Pumpsil Marprene Bioprene STA-PURE PFL PVC* STA-PURE PCS
0.5/1.6 mm 913.A005.016 902.0005.016 933.0005.016
0.8/1.6 mm 913.A008.016 902.0008.016 933.0008.016
1.6/1.6 mm 913.A016.016 902.0016.016 933.0016.016 965.0016.016 E3603.016.16 960.0016.016
2.4/1.6 mm 913.A024.016 902.0024.016 933.0024.016
3.2/1.6 mm 913.A032.016 902.0032.016 933.0032.016 965.0032.016 E3603.032.16 960.0032.016
4.0/1.6 mm 933.0040.016 E3603.040.16
4.8/1.6 mm 913.A048.016 902.0048.016 933.0048.016 965.0048.016 E3603.048.16 960.0048.016

*recommended for 114DVP +pressure pumphead only

100 FD/DV pump product codes

Pump product codes
Description Supply Speed (rpm) with 114DV with 114DVP
114FD DC motor drive 12 VDC 60 010.5AM0.00A 010.5AM0.P0A
24 VDC 60 010.5BM0.00A 010.5BM0.P0A
12 VDC 190 010.5AS0.00A 010.5AS0.P0A
24 VDC 190 010.5BS0.00A 010.5BS0.P0A
12 VDC 350 010.5AU0.00A# 010.5AU0.P0A#
24 VDC 350 010.5BU0.00A# 010.5BU0.P0A#

# Low pressure applications only. Pumpsil up to 4.8 mm bore. Other tubing up to 3.2 mm bore

Tubing product codes for 114DV and 114DVP pumpheads
Bore/wall Pumpsil Marprene Bioprene STA-PURE PFL PVC* STA-PURE PCS
0.5/1.6 mm 913.A005.016 902.0005.016 933.0005.016
0.8/1.6 mm 913.A008.016 902.0008.016 933.0008.016
1.6/1.6 mm 913.A016.016 902.0016.016 933.0016.016 965.0016.016 E3603.016.16 960.0016.016
2.4/1.6 mm 913.A024.016 902.0024.016 933.0024.016
3.2/1.6 mm 913.A032.016 902.0032.016 933.0032.016 965.0032.016 E3603.032.16 960.0032.016
4.0/1.6 mm 933.0040.016 E3603.040.16
4.8/1.6 mm 913.A048.016 902.0048.016 933.0048.016 965.0048.016 E3603.048.16 960.0048.016

*recommended for 114DVP +pressure pumphead only

100DriveSure/DV product codes

Pump product codes
Description Motor control Product code
PMD24CV114 0 - 10 V Contact your local Watson-Marlow representative
PMD24CI114 4 - 20 mA Contact your local Watson-Marlow representative

For mounting plate options, test leads and further pumphead configurations, contact your local Watson-Marlow sales representative

Tubing product codes for 114DV and 114DVP pumpheads
Bore/wall Pumpsil Marprene Bioprene STA-PURE PFL PVC* STA-PURE PCS
0.5/1.6 mm 913.A005.016 902.0005.016 933.0005.016
0.8/1.6 mm 913.A008.016 902.0008.016 933.0008.016
1.6/1.6 mm 913.A016.016 902.0016.016 933.0016.016 965.0016.016 E3603.016.16 960.0016.016
2.4/1.6 mm 913.A024.016 902.0024.016 933.0024.016
3.2/1.6 mm 913.A032.016 902.0032.016 933.0032.016 965.0032.016 E3603.032.16 960.0032.016
4.0/1.6 mm 933.0040.016 E3603.040.16
4.8/1.6 mm 913.A048.016 902.0048.016 933.0048.016 965.0048.016 E3603.048.16 960.0048.016

*recommended for 114DVP +pressure pumphead only
