400/A series panel mount pumps

Overview

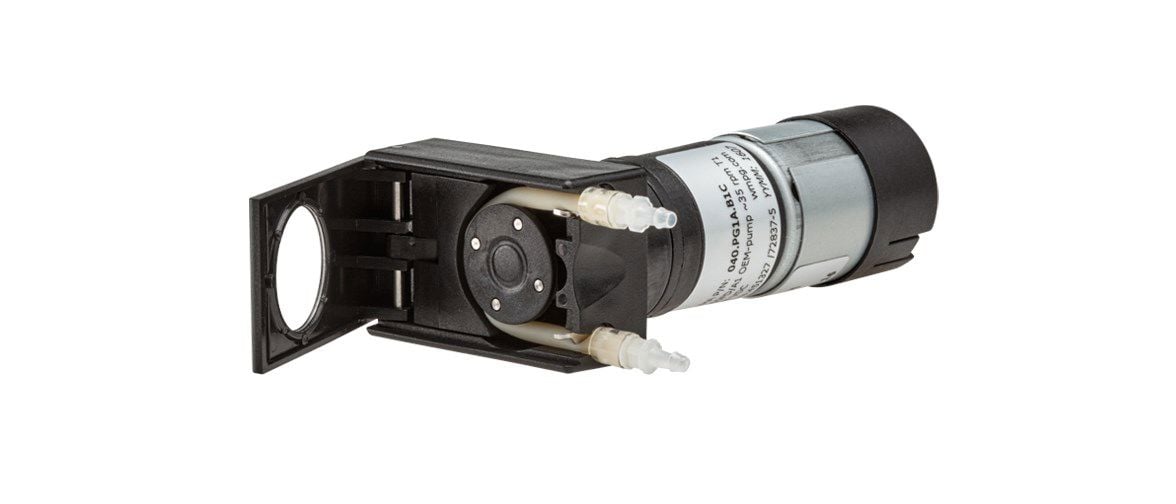

400/A compact micro-flow pumps

For precise control of low flow rates, the 400/A is the smallest pump in our range. There is one version for continuous tubing, and another for tube elements. It is available with a range of simple DC motors as well as a stepper motor for greater speed control. It is available in black and white, or custom colours. Also available as pumpheads only.

Features and benefits

  • Flow rates from µl/min to 30 ml/min
  • Instrument quality in very compact size 31 x 48 mm
  • Spring-loaded track for precision and extended tube life
  • For 0.85 mm and 0.9 mm tube wall thickness
  • Compatible with continuous tubing or tube elements
  • 12 V and 24 V DC drives with a range of maximum speeds
  • Pumphead available in standard or high pressure

Technical summary

Motor typesFixed speed DC motor, Stepper motor
Pumphead options400/A

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

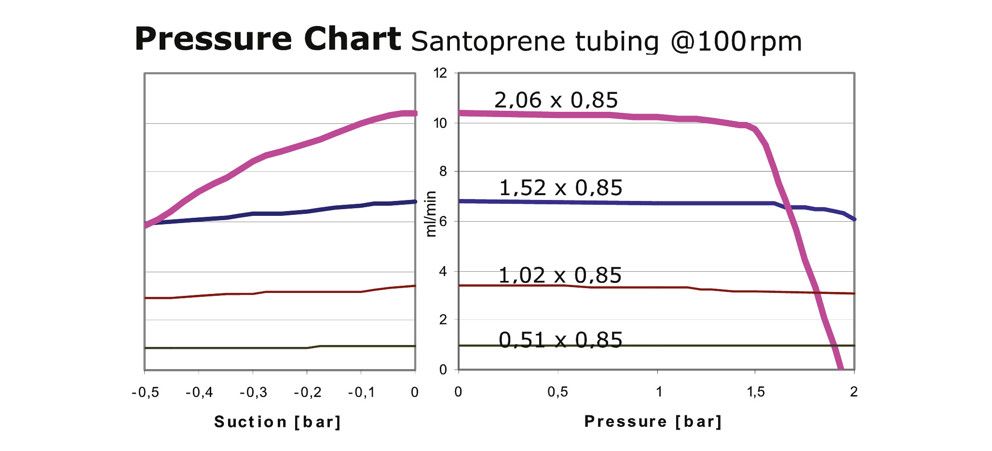

400 FD/A pump performance

Flow rates (ml/min)
Tube bore (mm) (ml/rev) Speed (rpm)
13 26 35 47 74 155 290
0.25 0.0025 0.03 0.07 0.09 0.12 0.19 0.39 0.73
0.51 0.0097 0.13 0.25 0.34 0.46 0.72 1.5 2.8
0.76 0.020 0.26 0.52 0.7 0.94 1.5 3.1 5.8
1.02 0.034 0.44 0.88 1.2 1.6 2.5 5.3 9.9
1.22* 0.046 0.6 1.2 1.6 2.2 3.4 7.1 13
1.52 0.068 0.88 1.8 2.4 3.2 5 11 20
2.06 0.104 1.4 2.7 3.6 4.9 7.7 16 30

Note: Reduced tube life with tube sizes from 1.65mm up to 2.06mm

Santoprene tubing wall 0.85mm, zero pressure and no suction height

All flow figures are nominal and may vary +/-10% depending on tube tolerances

* This dimension is only available in PVC

Specifications

Technical specifications

400 FD/A pump400 ST/A pump
Motor typesFixed speed DC motor Stepper motor
Pumphead options400/A 400/A
Flow rate range0.03 ml/min to 30 ml/min
Operating speed range to 290 rpm0 rpm to 290 rpm
Supply voltage12 V DC, 24 V DC
Weight0.14 kg
Gearbox ratioSpur; 188:1, Spur; 21:1, Spur; 43:1, Spur; 90:1
Compatible tubing bore size 0.25, 0.51, 0.76, 1.02, 1.22, 1.52, 2.06 mm
Compatible tubing wall thickness 0.85 mm0.85 mm

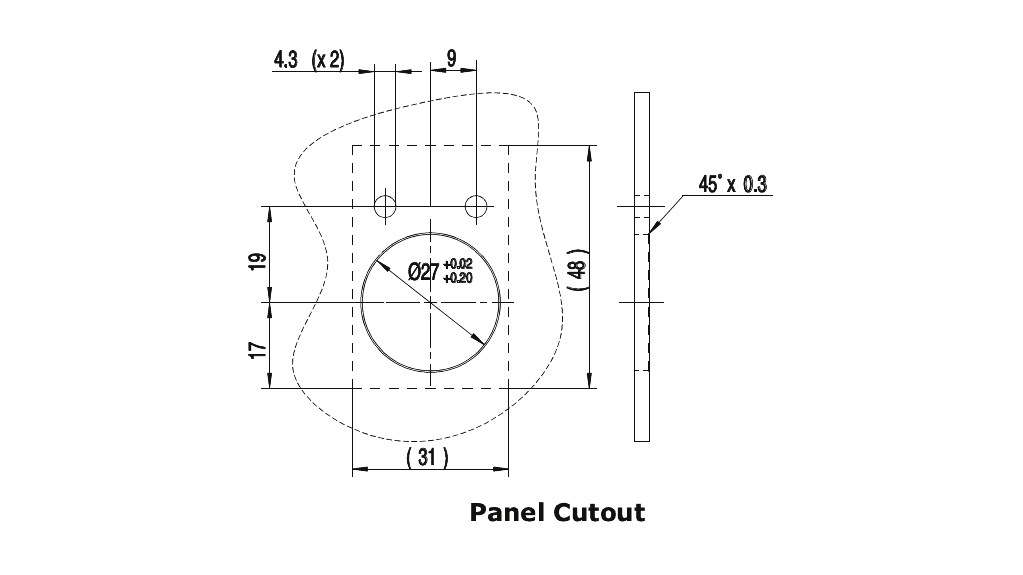

400 FD/A pump dimensions

Materials of construction

Pumphead body assemblyAcetal (black), Polyester resin (PET)
Pumphead rotor assemblyAcetal (black), Stainless steel
Pumphead roller assemblyAcetal (black)
DriveshaftStainless steel
SpringsStainless steel

Information listed covers the complete range. For detailed specifications of individual models/components refer to product reference manual or contact WMFTS representative.

Literature

Datasheet

  1. 400 FD A datasheet (EN).pdf
    PDF - 726,9kb

Order Information

Product codes

400 FD/A pump product codes

12V
Description/Motor type Nominal speed (rpm) Current nominal (mA) Track setting Pumps for continuous tubing Pumps for tube element
L 13 <30 standard 040.K91A.B1C 040.K91A.T1C
+Pressure 040.K91A.B15 040.K91A.T15
L 26 ~35 standard 040.KC1A.B1C 040.KC1A.T1C
+Pressure 040.KC1A.B15 040.KC1A.T15
L 47 ~55 standard 040.KK1A.B1C 040.KK1A.T1C
+Pressure 040.KK1A.B15 040.KK1A.T15
HL 74 ~120 standard 040.KN1A.B1C 040.KN1A.T1C
+Pressure 040.KN1A.B15 040.KN1A.T15
HV 155 ~180 standard 040.QR1A.B1C 040.QR1A.T1C
+Pressure 040.QR1A.B15 040.QR1A.T15
HV 290 ~250 standard 040.QT1A.B1C 040.QT1A.T1C
+Pressure 040.QT1A.B15 040.QT1A.T15



24V
Description/Motor type Nominal speed (rpm) Current nominal (mA) Track setting Pumps for continuous tubing Pumps for tube element
HL 35 <50 standard 040.PG1A.B1C 040.PG1A.T1C
+Pressure 040.PG1A.B15 040.PG1A.T15
HL 74 ~60 standard 040.PN1A.B1C 040.PN1A.T1C
+Pressure 040.PN1A.B15 040.PN1A.T15
HV 155 ~90 standard 040.PR1A.B1C 040.PR1A.T1C
+Pressure 040.PR1A.B15 040.PR1A.T15
HV 290 ~125 standard 040.PT1A.B1C 040.PT1A.T1C
+Pressure 040.PT1A.B15 040.PT1A.T15

+Pressure track recommended with PVC-tubing and with >Ø1.0mm ID Santoprene and Silicone >Ø1.5mm ID tubing.

Some tubing-speed combinations may not be suitable for continuous tubing models

Motor ØD L Description
L 27

13rpm: 47mm

47rpm: 42mm

 Small metal brush DC-motor with Varisto-Disc noise suppression
HL 30 35.74rpm: 71mm Carbon brush DC-motor with Varisto-Disc noise suppression. 3-pulse encoder available
HV 30

155rpm: 71mm

290rpm: 66mm

 Carbon brush DC-motor with Varisto-Disc noise suppression. 3-pulse encoder available

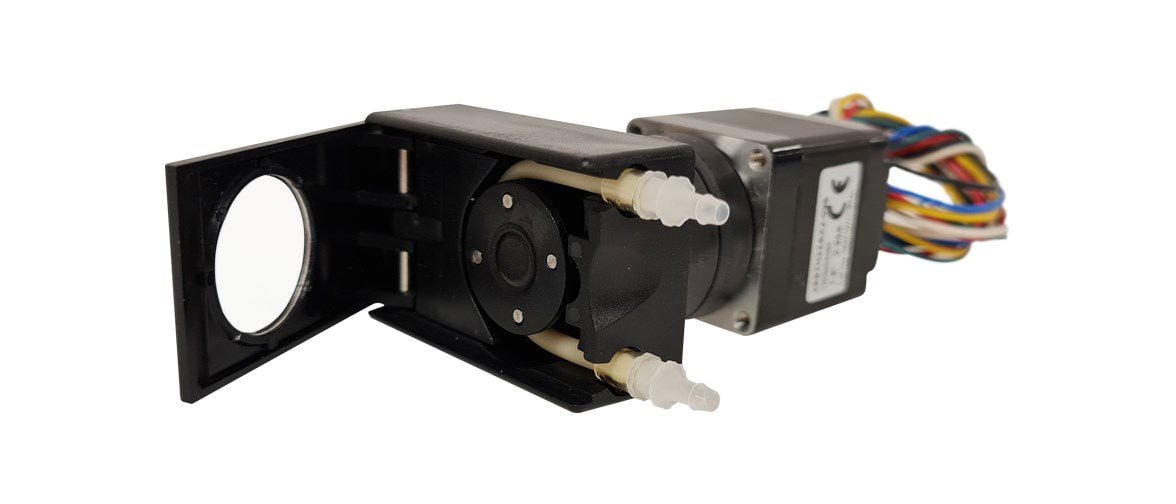

400 ST/A pump product codes

Description Track setting Pumps for continuous tubing Pumps for tube element
400ST/A1 standard 040.V61A.B1C 040.V61A.T1C
+Pressure 040.V61A.B15 040.V61A.T15
