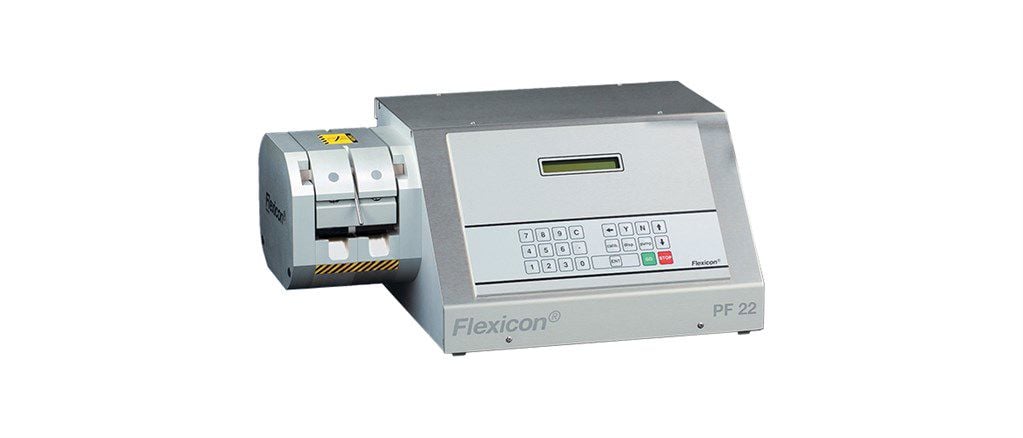

PF22 peristaltic filling machine

PF22 benchtop peristaltic liquid filler

The PF22 is an extremely flexible and reliable tabletop peristaltic filling machine. The peristaltic filling principle delivers the widely recognised advantages of accurate filling, guarantee against contamination and ease of cleaning.

Changing the fluid path can be achieved in less than one minute. The closed fluid path removes the risk of cross-contamination, making the PF22 ideal for contract filling, filling of agar, filling for clinical trials or a production environment where many types of liquids need to be filled in various batch sizes.

The PF22 is designed with the operator in mind. It has large keys and an intuitive menu to make setting—or loading of filling parameters—a simple operation, even for operators wearing gloves, or if the unit is behind a glass panel.

The adjustable fill speed and acceleration feature prevents splashing and foaming during filling. Dripping at the end of the fill is prevented using a back-suction function.

The PF22 can be used as a stand-alone unit for manual filling, or with an automatic bottle handling system for larger batch production to increase productivity.

Features and benefits

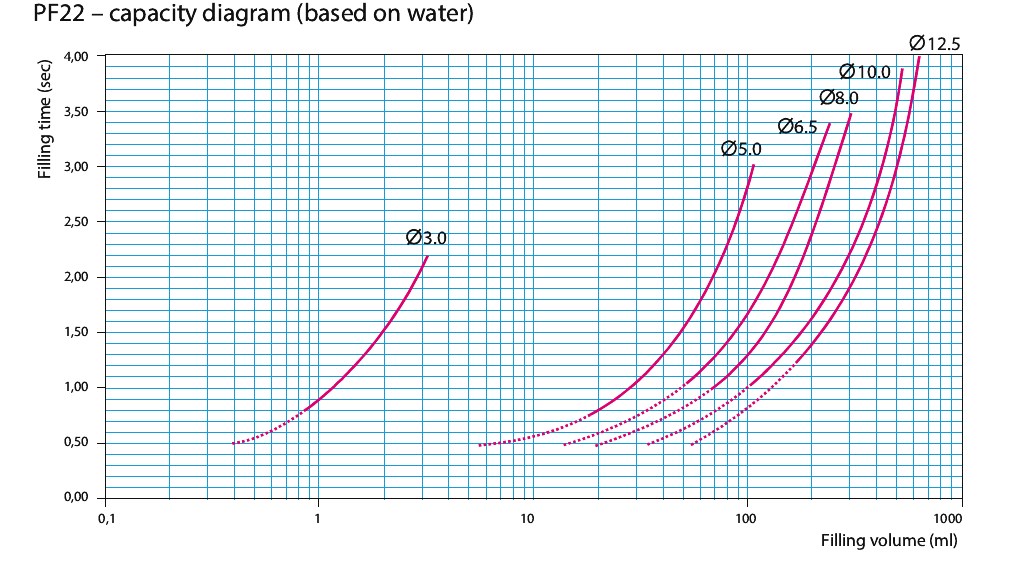

• Fill volumes from 5-5000 ml with ±0.5% accuracy
• Changing the fluid path can be achieved in less than one minute
• Consistent filling accuracy prevents costly overfilling
• No foaming, splashing or dripping between fills
• No cross-contamination

Technical summary

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Brochures

1. PF22 brochure (EN).pdf

   PDF - 365,6kb

Datasheet

1. PF22QC22 datasheet (EN).pdf

   PDF - 1,4mb

Manuals

1. Flexicon PF22 manual (EN).pdf

   PDF - 392,4kb
