Tank valve manual actuators
Overview

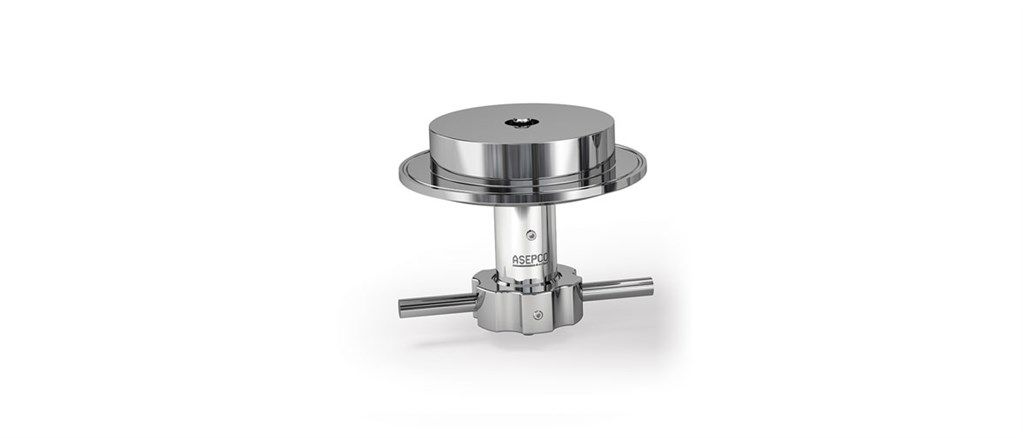

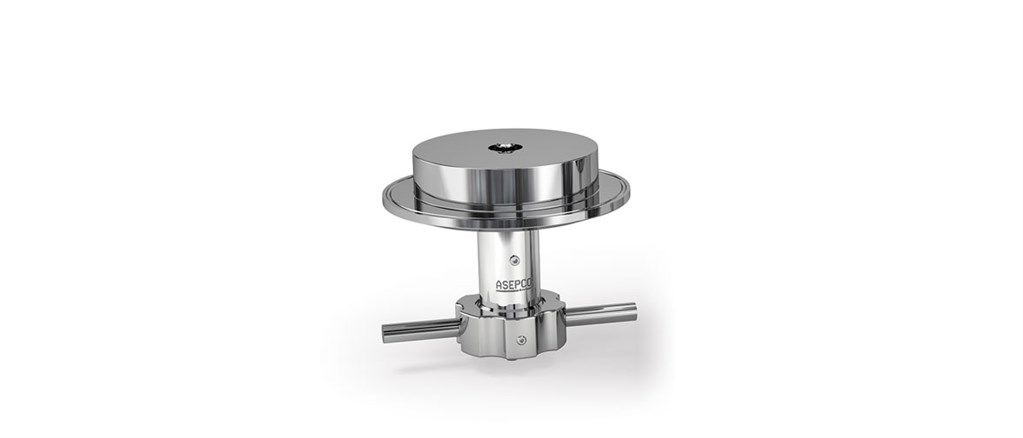

Tank valve manual actuators
Our tank valve manual actuators are available in 2 series; AJS series for heavy-duty applications or the AKS series for lighter weight needs.
The AJS actuator series of heavy-duty actuators is also easy to maintain and ideally suited to applications where stainless is preferred. These actuators are available in 0.5" through 4.0" sizes for our tank valves.
Features and benefits
- Hygienic design with laser-etched serial numbers on the actuator body supports full product traceability and cGMP
- Lightweight stainless steel and plastic construction with 304 SS sleeve and nylon handle
- Manual control options to suit your process needs
- Visual indication of open/closed status
Technical summary
| Max. operating pressure | 10 bar |
| Max. operating pressure | 150 psi |
| Compatible valves | Standard (90 degree) Weirless Radial diaphragm tank valves |
| Certification and compliance | ISO 9001 |
| Standards | 3-A, ASME BPE, CE-PED |
Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.
Specifications
Technical specifications
| AJS Series actuators | AKS Series actuators | |
|---|---|---|
| Sizes | 0.5", 1.0", 1.5", 2.0", 3.0", 4.0" | 0.5", 1.0", 1.5" |
| Position indication | Rising stem | Position indication on manual actuator sleeves |
| Max. operating pressure | 10 bar | 10 bar |
| Max. operating pressure | 150 psi | 150 psi |
| Operating temperature range | to 135 °C | to 135 °C |
| Operating temperature range | to 275 °F | to 275 °F |
| Compatible valves | Standard (90 degree) Weirless Radial diaphragm tank valves | Standard (90 degree) Weirless Radial diaphragm tank valves |
| Certification and compliance | ISO 9001 | ISO 9001 |
| Standards | 3-A, ASME BPE, CE-PED | 3-A, ASME BPE, CE-PED |

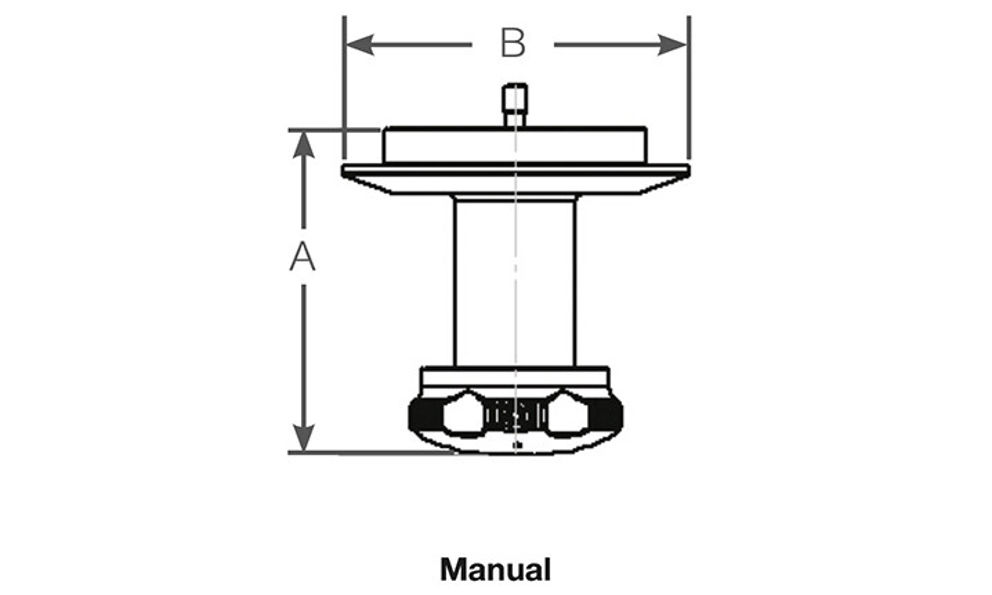

AJS Series actuators dimensions
| Size | A mm (inch) | B mm (inch) | Max travel mm (inch) | Weight (with plastic handle) kg (lb) | Clearance required for removal mm (inch) |
|---|---|---|---|---|---|
| 0.5 | 61.0 (2.4) | 50.8 (2.0) | 5.6 (0.2) | 0.5 (1.1) | 86.4 (3.4) |
| 1.0 | 71.1 (2.8) | 76.2 (3.0) | 7.9 (0.3) | 1.0 (2.2) | 104.1 (4.1) |
| 1.5 | 99.1 (3.9) | 76.2 (3.0) | 14.2 (0.6) | 1.1 (2.4) | 142.2 (5.6) |
| 2.0 | 111.8 (4.4) | 119.4 (4.7) | 14.2 (0.6) | 2.1 (4.7) | 142.2 (5.6) |
| 3.0 | 111.8 (4.4) | 119.4 (4.7) | 19.8 (0.8) | 2.1 (4.7) | 193.0 (7.6) |
| 4.0 | 139.7 (5.5) | 165.1 (6.5) | 25.4 (1.0) | 6.2 (13.7) | 246.4 (9.7) |

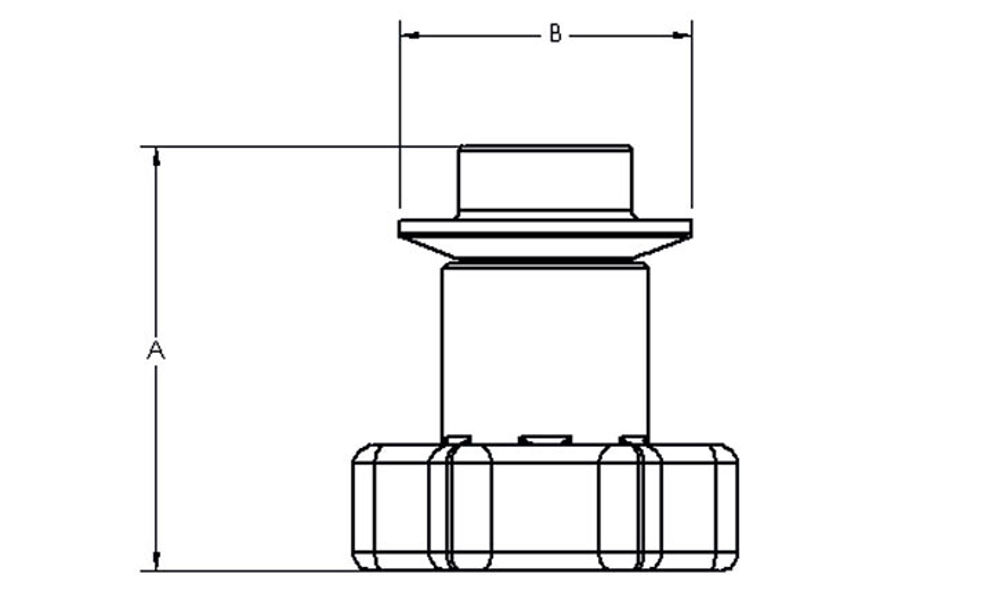

AKS Series actuators dimensions
| Size | A mm (inch) | B mm (inch) | Max travel mm (inch) | Weight (with plastic handle) kg (lb) | Clearance required for removal mm (inch) |
|---|---|---|---|---|---|
| 0.5 | 73.0 (2.9) | 50.4 (2.0) | 4.4 (0.2) | 0.4 (0.8) | 124.5 (4.9) |
| 1.0 | 80.4 (3.2) | 75.8 (3.0) | 5.1 (0.2) | 0.7 (1.5) | 157.5 (6.2) |
| 1.5 | 80.4 (3.2) | 75.8 (3.0) | 8.4 (0.3) | 0.7 (1.5) | 157.5 (6.2) |
Materials of construction
| Housing | Black anodised aluminium, Nylon, Stainless steel 304 |
| Actuator shaft | Gall-Tough® stainless steel, Nitronic 60 stainless steel, Stainless steel 304 |
| O-ring | EPDM |
| Seals | EPDM |
| Bearings | Nylon, Stainless steel |
Literature
Brochures
-
ASEPCO weirless radial diaphragm valves (EN).pdf
PDF - 600,3kb
Datasheet
-
AKS Manual Actuator datasheet (EN).pdf
PDF - 292,9kb -
AJS Manual Actuator datasheet (EN).pdf
PDF - 283kb
Order Information
Product codes
AJS Series actuators product codes
| Product number | Product description |
|---|---|
| MN05 | 0.5" Weirless Radial tank valve AJS manual actuator |
| MN10 | 1.0" Weirless Radial tank valve AJS manual actuator |
| MN17 | 1.5" Weirless Radial tank valve AJS manual actuator |
| MN20 | 2.0" Weirless Radial tank valve AJS manual actuator |
| MN30 | 3.0" Weirless Radial tank valve AJS manual actuator |
| MN40 | 4.0" Weirless Radial tank valve AJS manual actuator |
AKS Series actuators product codes
| Product number | Product description |
|---|---|
| MN05-01 | 0.5" Weirless Radial tank valve AKS manual actuator |
| MN10-01 | 1.0" Weirless Radial tank valve AKS manual actuator |
| MN17-01 | 1.5" Weirless Radial tank valve AKS manual actuator |
