FP50 aseptic liquid filling system
Overview

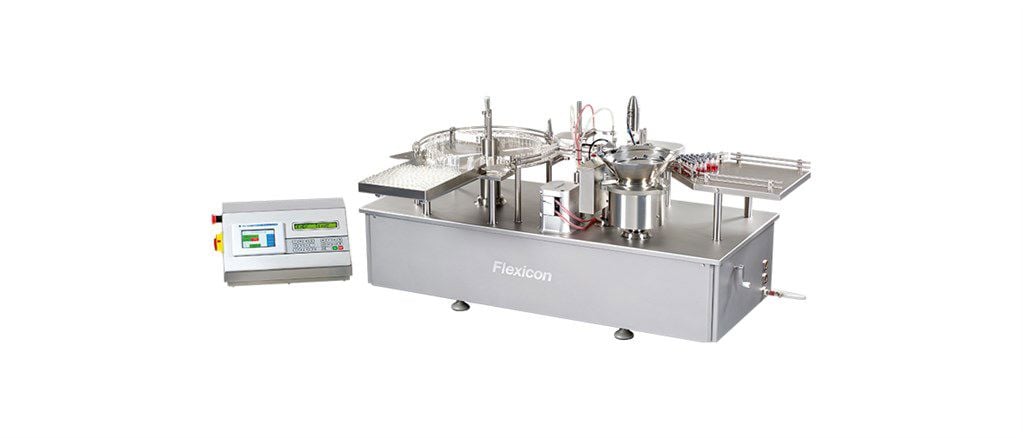

FP50 liquid filling and stoppering system
FP50 is a compact aseptic liquid filling system ideal for small-to-medium sized batches within the biotechnology and pharmaceutical industries.

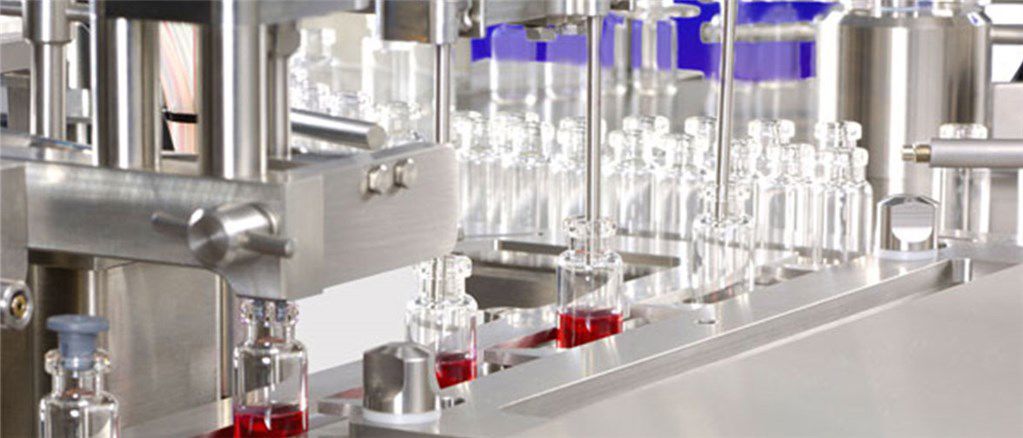

Filling is done by the integrated, highly accurate peristaltic dispenser, which can give an optimum filling accuracy for volumes from micro-volumes - preventing costly overfilling of expensive liquids. Automatic gas purging can be programmed before, during and after the liquid filling process.
A complete change-over between different liquids, vials or stoppers can be done by the operator within five minutes, without any technical support from outside the cleanroom. This represents an excellent return on investment.
Short and reliable delivery time reduces project costs.
The FP50 can be customized to fit different sizes of trays at the infeed and the outfeed. The infeed tray can also be positioned on the front of the FP50 or the left side of the unit.
Features and benefits
- Ideal for flexible small batch production
- No costly overfilling – fill accuracy better than ±0.5 %
- Handling of vials from 2R to 100H with full or partial stoppering
- Universal format parts for ISO standard or Lyo, 13 mm and 20 mm stoppers

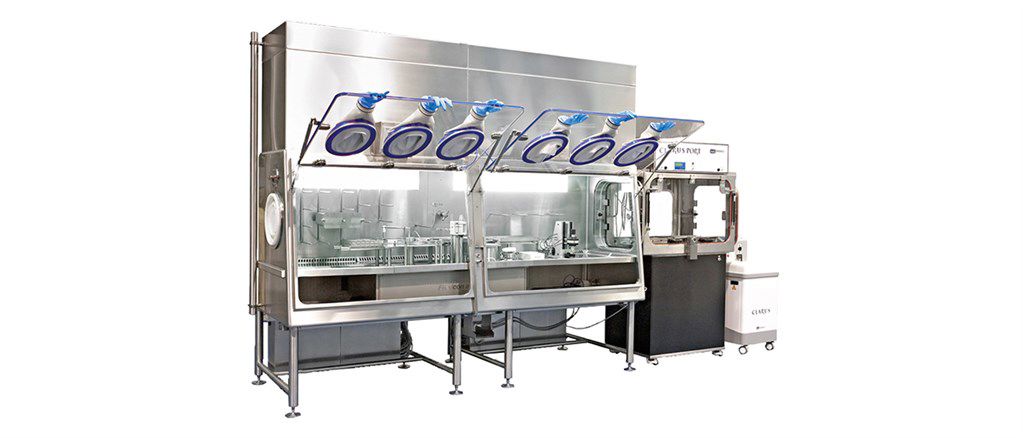

- Small footprint for LAF bench or RABS installations
- No extra format parts for different vial sizes
- Up to 25 vials per minute
Technical summary
| Filling volume range | 0.1-100 ml |
| Accuracy | ±1.0 % |
| Capacity | 1500 units/hour |
| Stoppers | ISO standard or Lyo, 13 mm and 20 mm |
Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.
Specifications
Technical specifications
| FP50 | |
|---|---|
| Filling volume range | 0.1-100 ml |
| Accuracy | ±1.0 % |
| Capacity | 1500 units/hour |
| Power supply | 110/230 V AC, 50/60 Hz |
| Power consumption | Max 500 W |
| Air supply/pneumatic connection | 5 bar clean and dry air |
| Air consumption | Max 25 L/min |
| Interface | 2 x RS232 serial communication for balance and/or printer 1 x 24 V output signal for gas purge valve |
| Weight | 150 kg |
| Vial Size | ISO 2R - 100H |
| Stoppers | ISO standard or Lyo, 13 mm and 20 mm |

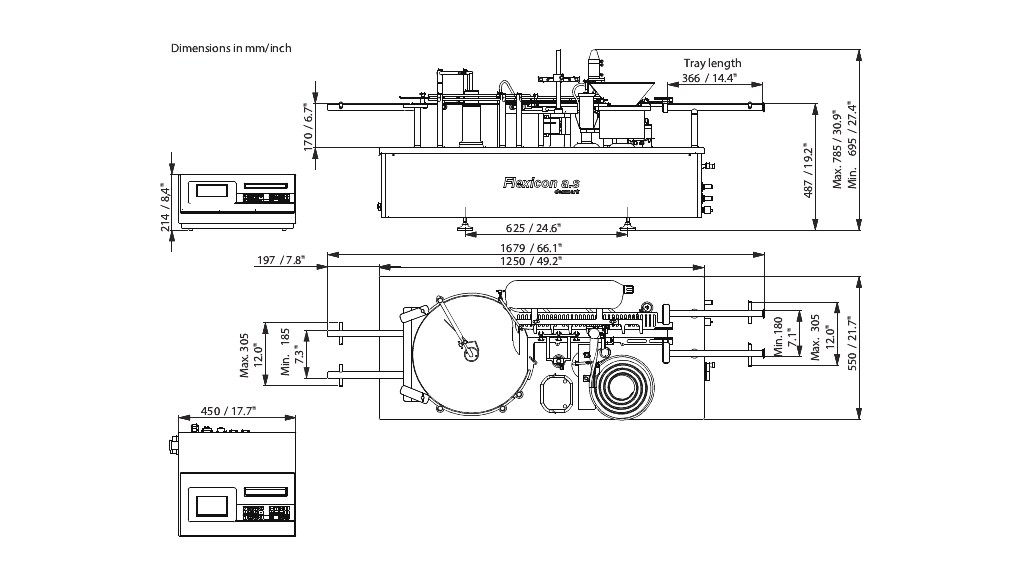

FP50 dimensions
Materials of construction
| Material | Anodised aluminium, Stainless steel, Stainless steel AISI 316L |
