EPDM gaskets
Overview

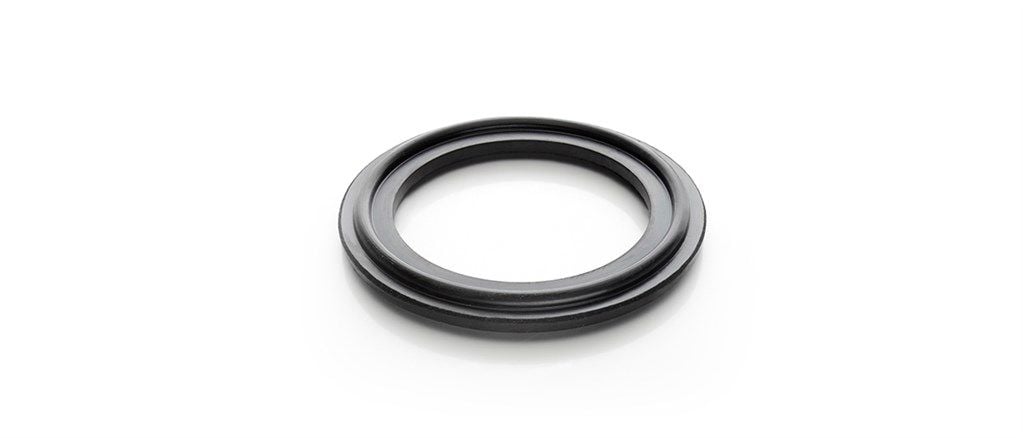

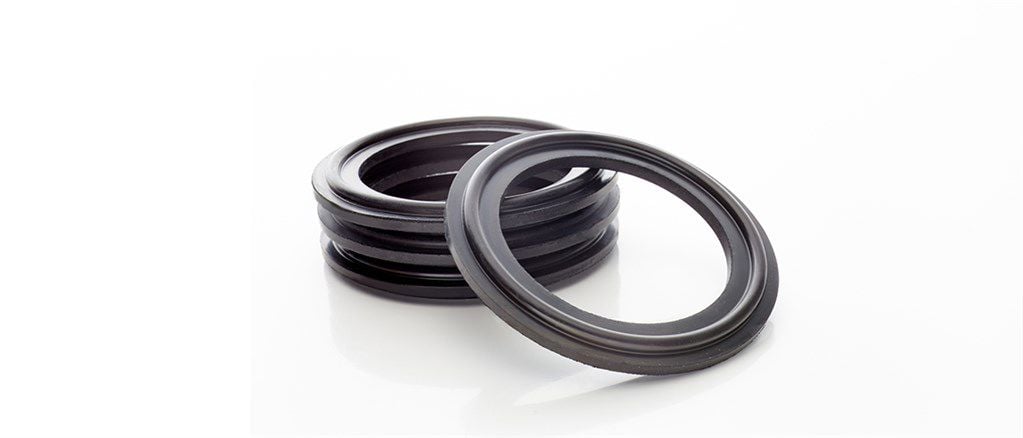

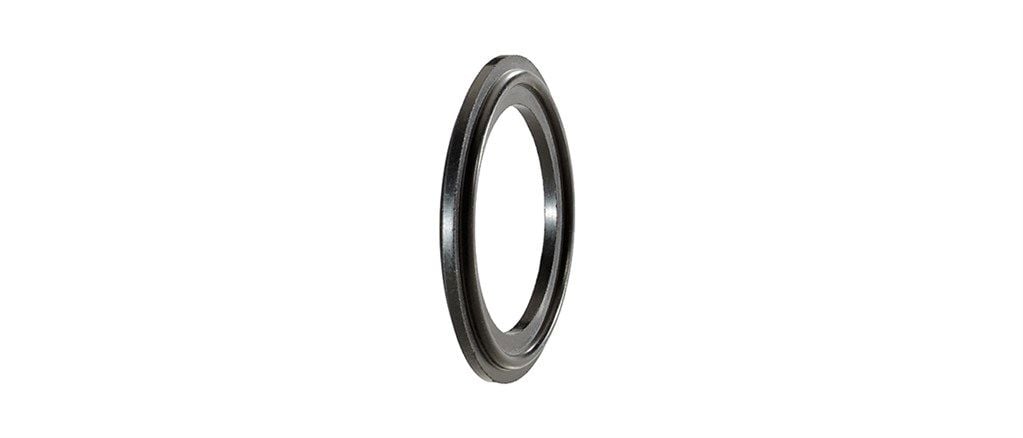

EPDM gaskets
(ethylene propylene diene monomer)
EPDM gaskets offer quality performances in sanitary applications with repetitive steam-in-place (SIP) cycles. These sanitary gaskets have been designed to achieve a smooth bore, contamination free fluid path under clamping compression, retaining their geometric stability after repeat SIP cycles. This ensures that your SIP validation is not compromised.
Additionally, EPDM gaskets do not deform to trap bacteria, or stick, causing the gasket to adhere to a ferrule face. The EPDM material maintains the important conditions of clean, intact removal with no trace of elastomer material finding its way into the fluid process.
Features and benefits
- Designed in accordance with ASME-BPE standards
- USP Class VI compliant and animal derived component free (ADCF)
- Compliant with FDA regulations CFR 21 177.2600
- Lot numbering enables product traceability
- Superior steam-in-place (SIP) stability with consequent clean ferrule and gasket separation
Technical summary
| Gasket type | Unflanged |
| Certification and compliance | ADCF, USP Class VI |
| Shelf life | 5 years |
Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.
Specifications
Technical specifications
| Small EPDM Gaskets | Standard EPDM Gaskets | |
|---|---|---|
| Gasket type | Unflanged | Unflanged |
| Internal diameter | 10.9 - 16 mm | 22.9 - 147.8 mm |
| Internal diameter | 0.43 - 0.63 in | 0.9 - 5.82 in |
| External diameter | 21.6 mm | 50.3 - 165.4 mm |
| External diameter | 0.85 in | 1.98 - 6.51 in |
| Size | 0.5, 0.75 in | 1, 1.5, 2, 2.5, 3, 4, 6 in |
| Quantity | 25 PCS | 25 PCS |
| Certification and compliance | ADCF, USP Class VI | ADCF, USP Class VI |
| Operating temperature range | 21 °C to 154 °C | 21 °C to 154 °C |
| Operating temperature range | -70 °F to 310 °F | -70 °F to 310 °F |
| Shelf life | 5 years | 5 years |
Materials of construction
| Material | EPDM |
Literature
Brochures
-
BioPure overview (EN).pdf
PDF - 863,8kb
Datasheet
-
Small EPDM Gaskets datasheet (EN).pdf
PDF - 522,8kb -
Standard EPDM Gaskets datasheet (EN).pdf
PDF - 529,1kb
Order Information
Product codes
Small EPDM Gaskets product codes
| Part number | Size inch | I.D (B) inch (mm) | O.D (A) inch (mm) | Quantity |
|---|---|---|---|---|
| 42MPE-050-25 | 1/2 | 0.43 (10.9) | 0.85 (21.6) | 25 |
| 42MPE-075-25 | 3/4 | 0.63 (16.0) | 0.85 (21.6) | 25 |
Standard EPDM Gaskets product codes
| Part number | Size inch | I.D (B) inch (mm) | O.D (A) inch (mm) | Quantity |
|---|---|---|---|---|
| 40MPE-100-25 | 1 | 0.90 (22.9) | 1.98 (50.3) | 25 |
| 40MPE-150-25 | 1 1/2 | 1.40 (35.6) | 1.98 (50.3) | 25 |
| 40MPE-200-25 | 2 | 1.90 (48.3) | 2.52 (64.0) | 25 |
| 40MPE-250-25 | 2 1/2 | 2.40 (61.0) | 3.05 (77.5) | 25 |
| 40MPE-300-25 | 3 | 2.90 (73.7) | 3.58 (90.9) | 25 |
| 40MPE-400-25 | 4 | 3.87 (98.3) | 4.68 (118.9) | 25 |
| 40MOE-600-25 | 6 | 5.82 (147.8) | 6.51 (165.4) | 25 |
