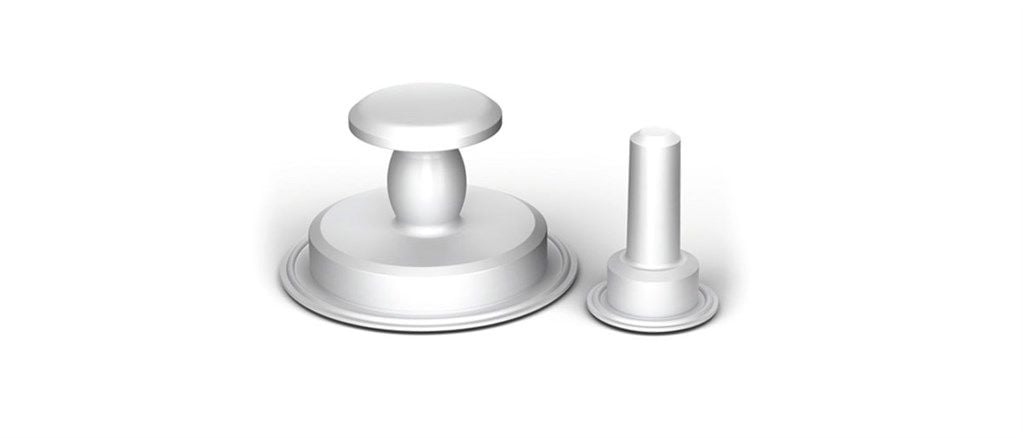

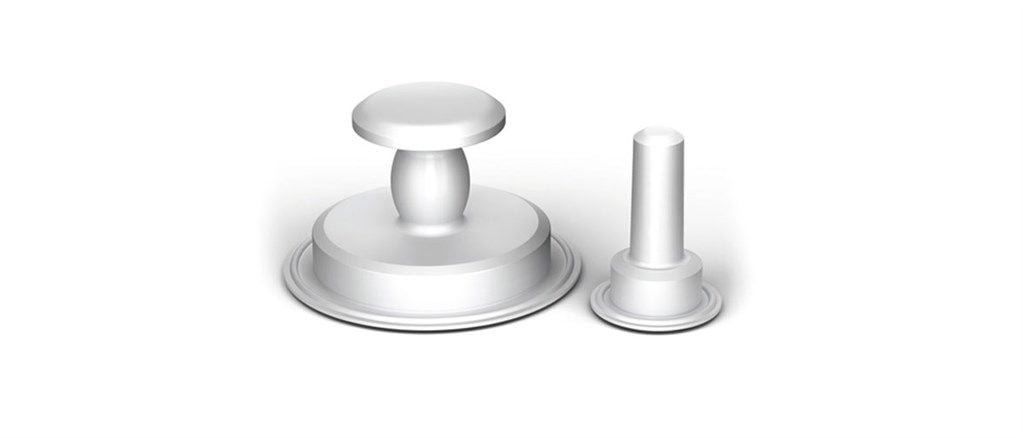

Viton® diaphragms

Viton® is a class of fluoropolymer elastomer (synthetic rubber) and is well known for its excellent heat, acid and chemical resistance. The performance of fluoroelastomers in aggressive chemicals depends on the grade of the elastomer.

There are three grades of Viton we currently use for our viton diaphragms:

  • Viton A the most commonly used version of Viton, but should not be used with most ketones, esters or extended steam exposure.
  • Viton A (SR) Steam resistant version of Viton A, performs well in conditions with extended steam
  • Viton GF is more chemically resistant than Viton A and offers good steam resistance. However, it should not be used with most ketones and esters.

Features and benefits

  • All Viton® diaphragms are laser-etched with cure dates and batch numbers, ensuring that they are completely traceable
  • Excellent chemical resistance
  • Not suitable for use with ketones and esters

Technical summary

Diaphragm variant(s)Bellows, Straight
Compatible actuatorsAJS, AKS
Compatible valvesRadial
Material specificationFluoropolymer elastomer, Peroxide cured F-type gum polymers, Steam resistant Viton A
StandardsASME BPE, RoHS

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

Performance

Flow Coefficient (under standard configuration)
Tank Valve Size CV KV
0.5" 4.3 5.0
1.0" 15.8 18.3
2.0" 72.0 83.2
3.0" 170.0 196.5

Performance

Flow Coefficient (under standard configuration)
Tank Valve Size CV KV
0.5" 4.3 5.0
1.0" 15.8 18.3
2.0" 72.0 83.2
3.0" 170.0 196.5

Performance

Flow Coefficient (under standard configuration)
Tank Valve Size CV KV
0.5" 4.3 5.0
1.0" 15.8 18.3
1.5" 48.0 55.5
2.0" 72.0 83.2
3.0" 170.0 196.5

Specifications

Technical specifications

Viton A diaphragmsViton A (SR) diaphragmsViton GF diaphragms
Tank valve sizes0.5", 0.5" Extended, 1.0", 2.0" 0.5", 1.0", 2.0", 3.0" 0.5" Extended, 1.0", 1.5" Extended, 2.0", 3.0", 3.0" Extended
ColourCream Black Black
Diaphragm variant(s)Bellows, Straight Bellows, Straight Straight
Parylene treatmentNo No No
Operating temperature range -20 °C to 177 °C-20 °C to 177 °C-20 °C to 177 °C
Operating temperature range -4 °F to 350 °F-4 °F to 350 °F-4 °F to 350 °F
Max. operating pressure4.8 barg4.8 barg4.8 barg
Max. operating pressure70 psig70 psig70 psig
Compatible actuatorsAJS, AKS AJS, AKS AJS, AKS
Compatible valvesRadial Radial Radial
Actuator typeManual, Pneumatic Manual, Pneumatic Manual, Pneumatic
Curing agentBPA BPA Peroxide
Steaming required prior to installationNo No No
ASME BPE appendix K SIP cycle rating200 200
Total actuations during SIP cycle testing2000 2000
Shelf life4 years4 years4 years
Material specificationFluoropolymer elastomer Steam resistant Viton A Peroxide cured F-type gum polymers
StandardsASME BPE, RoHS ASME BPE, RoHS ASME BPE, RoHS
Certification and complianceADCF, BSE/TSE free, FDA 21CFR177.2600, USP <87>, USP <88> Class VI ADCF, BSE/TSE free, FDA 21CFR177.2600, USP <87>, USP <88> Class VI ADCF, BSE/TSE free, FDA 21CFR177.2600, USP <87>, USP <88> Class VI

Materials of construction

DiaphragmSynthetic rubber compound, Viton® A Cream Fluoropolymer Elastimer, Viton® A Steam Grade 42563, Viton® GF 17340
Inserts304 SS

Literature

Brochures

  1. ASEPCO weirless radial diaphragm valves (EN).pdf
    PDF - 600,3kb

Datasheet

  1. Viton A Diaphragms datasheet (EN).pdf
    PDF - 207kb
  2. Viton A (SR) Diaphragms datasheet (EN).pdf
    PDF - 203,7kb
  3. Viton GF Diaphragms datasheet (EN).pdf
    PDF - 209,9kb

Order Information

Product codes

Viton A diaphragms product codes

Code Product

VG05

Radial diaphragm extended .5" Viton A Cream

VT05

Radial diaphragm .5" Viton A Cream Straight

VT10

Radial diaphragm 1" Viton A Cream Bellows

VT20

Radial diaphragm 2" Viton A Cream Bellows

VT30

Radial diaphragm 3" Viton A Cream Bellows

Viton A (SR) diaphragms product codes

Code Product

VA05

Radial diaphragm .5" Viton "A" - steam grade Black Straight

VA10

Radial diaphragm 1" Viton "A" - steam grade Black Straight

VA20

Radial diaphragm 2" Viton "A" - steam grade Black USP Straight

VA30

Radial diaphragm 3" Viton "A" - steam grade Black Straight

Viton GF diaphragms product codes

Code Product

VF10

Radial diaphragm 1" Viton "GF" Black Straight

VF20

Radial diaphragm 2" Viton "GF" Black Straight

VF30

Radial diaphragm 3" Viton "GF" Black Straight

VFE17

Radial diaphragm extended 1.5" Viton "GF" Black

VFE30

Radial diaphragm extended 3" Viton "GF" Black

VGF05

Radial diaphragm extended .5" Viton "GF" Black
