EPDM diaphragms

Order a sample
Order a sample

Overview

EPDM diaphragms

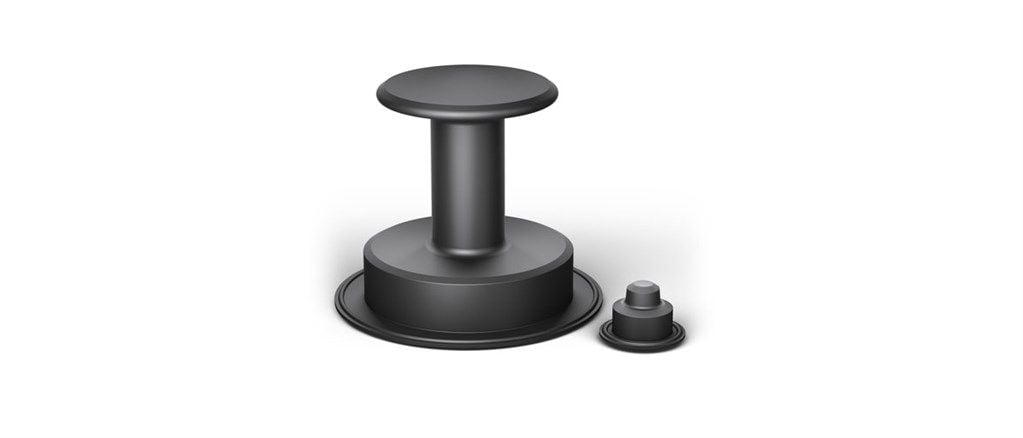

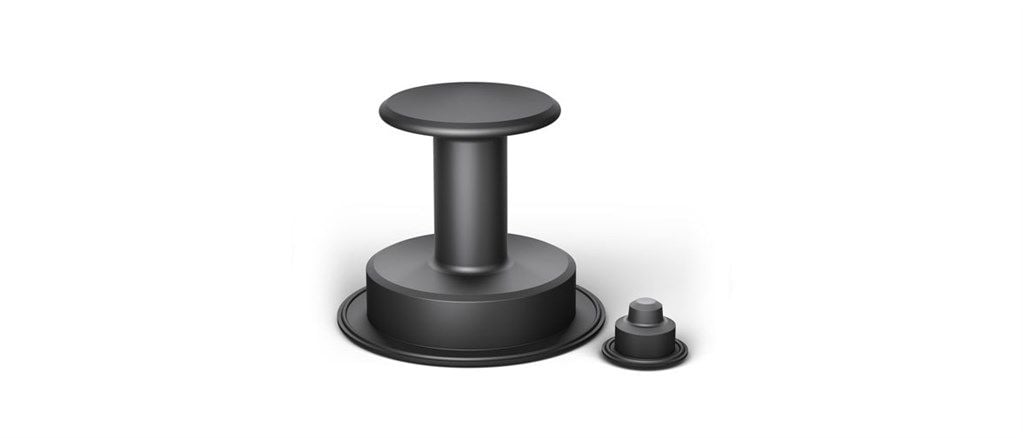

Ethylene propylene diene monomer (EPDM) is fairly chemical resistant and offers quality performances in applications with repetitive steam-in-place (SIP) cycles. EPDM a relatively low cost material widely used in pharmaceutical applications

Features and benefits

  • All EPDM diaphragms are laser-etched with cure dates and batch numbers, ensuring that they are completely traceable
  • Wide temperature range; good in steam applications
  • Not suitable for use with solvents or petroleum agents

Technical summary

Diaphragm variant(s)Bellows, Parylene surface, Straight
Compatible actuatorsAJS, AKS
Compatible valvesRadial, Weirless
Material specificationEPDM with Parylene surface treatment, Ethylene propylene diene monomer (peroxide cured)
StandardsASME BPE, RoHS, USP VI

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

Performance

Flow Coefficient (under standard configuration)
Tank Valve Size CV
0.5" 4.3
1.0" 15.8
1.5" 48.0
2.0" 72.0
3.0" 170.0
4.0" 302.0

Specifications

Technical specifications

EPDM diaphragms
Tank valve sizes0.5", 0.5" Extended, 0.75", 1.0", 1.5", 1.5" Extended, 2.0", 2.0" Extended, 3.0", 3.0" Extended, 4.0"
ColourBlack
Diaphragm variant(s)Bellows, Straight
Parylene treatmentNo
Operating temperature range -51 °C to 135 °C
Operating temperature range -60 °F to 275 °F
Max. operating pressure4.83 barg
Max. operating pressure70 psig
Compatible actuatorsAJS, AKS
Compatible valvesRadial, Weirless
Actuator typeManual, Pneumatic
Curing agentPeroxide
Steaming required prior to installationNo
ASME BPE appendix K SIP cycle rating300
Total actuations during SIP cycle testing3000
Shelf life5 years
Material specificationEthylene propylene diene monomer (peroxide cured)
StandardsASME BPE, RoHS
Certification and complianceADCF, BSE/TSE free, FDA 21CFR177.2600, USP <87>, USP <88> Class VI
Max. operating pressure varies by size up to maximum indicated

Materials of construction

DiaphragmRS60065B ethylene propylene diene monomer rubber
Inserts304 SS
