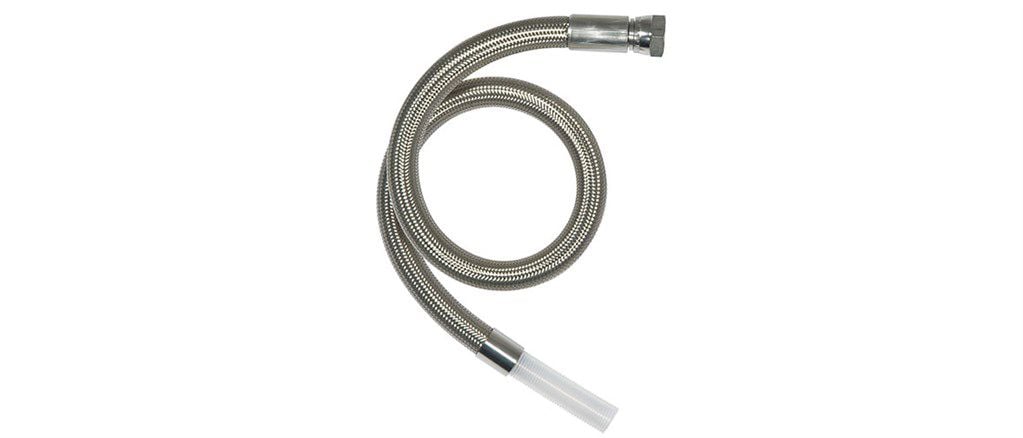

Hyperline FX

PTFE-lined hose for automotive and general purpose applications

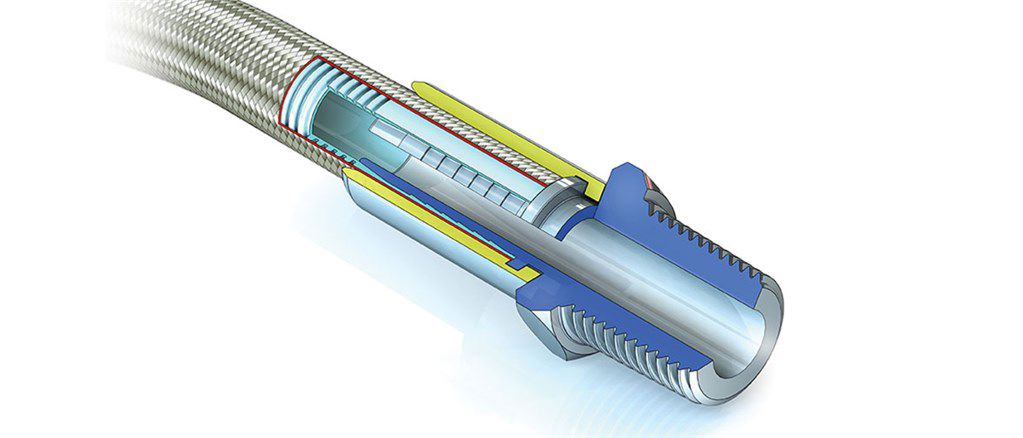

Hyperline FX hose is much more flexible than smoothbore hose, due to the patented design of the PTFE liner, and therefore represents a better alternative in applications where improved flexibility is required. Particularly applicable for the tight configurations increasingly necessary in automotive hose and aerospace hose applications, where space requirements are limited.

Features and benefits

Patented liner provides unequalled flexibility and kink resistance
Excellent chemical resistance
Smooth bore for fast flow and easy clean
Resistant to diffusion of liquids and gases

Technical summary

Nominal bore size	6 - 25 mm
Nominal bore size	0.25 - 1 in
Outside diameter	9 - 31.7 mm
Outside diameter	0.354 - 1.25 in
Max. operating pressure	88 bar
Max. operating pressure	1280 psi
Certification and compliance	3.1 Traceability, EN16643:2016, FDA (materials), SAE J1737, TS 16949:2016
Bend radius	19 - 150 mm
Bend radius	0.75 - 6 in
Braid type	None
Cover	None

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Hyperline FX Aramid fibre braid (AM) grade hoses performance

Hose Bore Size		Actual Hose Bore Size		Hose	Outside Diameter of Tube or Braid		Minimum Bend Radius		Maximum Working Pressure (MWP)		Burst Pressure		Weight per Unit Length		*Part Number
in	dash size	in	mm		in	mm	in	mm	Bar	Psi	Bar	Psi	Kg/mtr	Lbs/Ft	*
1/4	4	0.250 - 0.280	6.35 - 7.12	AM	0.360 - 0.400	9.14 - 10.16	1 1/2	38	77	1116	231	3350	0.056	0.038	92-100-04-01-55-01
5/16	5	0.290 - 0.320	7.36 - 8.13	AM	0.440 - 0.480	11.17 - 12.19	1 1/2	38	74	1073	222	3220	0.075	0.050	92-100-05-01-55-01
3/8	6	0.376 - 0.406	9.55 - 10.32	AM	0.515 - 0.555	13.08 - 14.10	2	50	70	1015	210	3046	0.100	0.094	92-100-06-01-55-01
1/2	8	0.515 - 0.545	13.08 - 13.85	AM	0.655 - 0.695	16.64 - 17.66	3	76	52	754	156	2263	0.140	0.094	92-100-08-01-55-01
5/8	10	0.635 - 0.665	16.13 - 16.89	AM	0.815 - 0.855	20.70 - 21.72	4	100	44	638	132	1915	0.204	0.137	92-100-10-01-55-01
3/4	12	0.760 - 0.790	19.30 - 20.07	AM	0.946 - 0.986	24.03 - 25.05	5	126	36	522	108	1566	0.236	0.158	92-100-12-01-55-01
1	16	1.005 - 1.035	25.52 - 26.29	AM	1.233 - 1.273	31.32 - 32.34	6	150	35	507	105	1523	0.354	0.237	92-100-16-01-55-01

*For anti-static grade, add 10 to the 3-digit part number e.g. 92-100- becomes 92-110.

The performance testing results stated in the above table have been carried out at ambient temperature, in a controlled laboratory environment, using water as the media. We recommend that the customer carries out stringent application performance testing on the hose, using the actual working conditions over a set period of time to validate the hose.

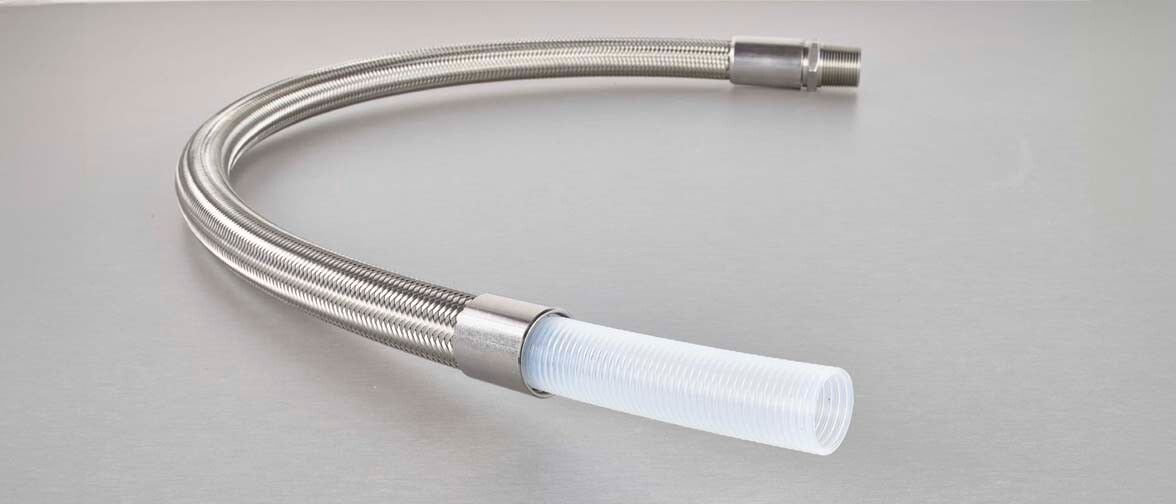

Hyperline FX Stainless steel braid (SS) grade hoses performance

Hose Bore Size		Actual Hose Bore Size		Hose	Outside Diameter of Tube or Braid		Minimum Bend Radius		Maximum Working Pressure (MWP)		Burst Pressure		Weight per Unit Length		*Part Number
in	dash size	in	mm		in	mm	in	mm	Bar	Psi	Bar	Psi	Kg/mtr	Lbs/Ft	*
1/4	4	0.250 - 0.280	6.34 - 7.12	SS	0.355 - 0.395	9.02 - 10.04	3/4	19	110	1595	330	4786	0.092	0.062	92-100-04-01-02
5/16	5	0.302 - 0.328	7.66 - 8.33	SS	0.424 - 0.458	10.77 - 11.63	3/4	19	105	1522	315	4569	0.126	0.084	92-100-05-01-02
3/8	6	0.376 - 0.406	9.54 - 10.32	SS	0.502 - 0.542	12.75 - 13.64	1	25	100	1450	300	4351	0.160	0.151	92-100-06-01-02
1/2	8	0.515 - 0.545	13.07 - 13.85	SS	0.655 - 0.695	16.64 - 17.66	1 1/2	38	75	1087	225	3263	0.225	0.151	92-100-08-01-02
5/8	10	0.635 - 0.665	16.12 - 16.89	SS	0.810 - 0.850	20.57 - 21.59	2	50	62	899	186	2698	0.336	0.226	92-100-10-01-02
3/4	12	0.760 - 0.790	19.30 - 20.07	SS	0.950 - 0.990	24.13 - 25.15	2 1/2	63	52	754	156	2263	0.383	0.257	92-100-12-01-02
1	16	1.005 - 1.035	25.52 - 26.29	SS	1.227 - 1.269	31.15 - 32.23	3	75	50	725	150	2176	0.540	0.362	92-100-16-01-02

*For anti-static grade, add 10 to the 3-digit part number e.g. 92-100- becomes 92-110.

Hyperline FX Tube only (TO) grade hoses performance

Hose Bore Size		Actual Hose Bore Size		Hose	Outside Diameter of Tube or Braid		Minimum Bend Radius		Maximum Working Pressure (MWP)		Burst Pressure		Weight per Unit Length		*Part Number
in	dash size	in	mm		in	mm	in	mm	Bar	Psi	Bar	Psi	Kg/mtr	Lbs/Ft	*
1/4	4	0.252 - 0.278	6.39 - 7.06	TO	0.326 - 0.368	8.28 - 9.35	1 1/2	38	6	87	18	261	0.041	0.027	92-100-04
5/16	5	0.308 - 0.333	7.84 - 8.46	TO	0.382 - 0.424	9.72 - 10.77	1 1/2	38	6	87	18	261	0.056	0.037	92-100-05
3/8	6	0.381 - 0.407	9.69 - 10.34	TO	0.475 - 0.511	12.06 - 12.98	2	50	6	87	18	261	0.070	0.047	92-100-06
1/2	8	0.525 - 0.550	13.33 - 13.97	TO	0.620 - 0.668	15.77 - 16.97	3	76	6	87	18	261	0.110	0.074	92-100-08
5/8	10	0.639 - 0.665	16.25 - 16.89	TO	0.770 - 0.811	19.55 - 20.60	4	100	6	87	18	261	0.161	0.108	92-100-10
3/4	12	0.765 - 0.795	19.42 - 20.20	TO	0.895 - 0.941	22.73 - 23.90	5	126	6	87	18	261	0.179	0.120	92-100-12
1	16	1.005 - 1.035	25.77 - 26.55	TO	1.165 - 1.215	29.58 - 30.86	6	150	6	87	18	261	0.268	0.180	92-100-16

*For anti-static grade, add 10 to the 3-digit part number e.g. 92-100- becomes 92-110.

Technical specifications

	Aramid fibre braid (AM) grade hoses	Stainless steel braid (SS) grade hoses	Tube only (TO) grade hoses
Nominal bore size	6 - 25 mm	6 - 25 mm	6 - 25 mm
Nominal bore size	0.25 - 1 in	0.25 - 1 in	0.25 - 1 in
Actual bore size	6.8 - 26 mm	6.8 - 26 mm	6.8 - 26 mm
Actual bore size	0.27 - 1.023 in	0.27 - 1.023 in	0.27 - 1.023 in
Length	18 m	18 m	18 m
Length	60 Ft	60 Ft	60 Ft
Outside diameter	9.6 - 31.7 mm	9.6 - 31.7 mm	9 - 30.3 mm
Outside diameter	0.378 - 1.25 in	0.378 - 1.25 in	0.354 - 1.193 in
Max. operating pressure	62 bar	88 bar	4 bar
Max. operating pressure	900 psi	1280 psi	60 psi
Burst pressure	84 - 186 bar	120 - 264 bar	6 - 12 bar
Burst pressure	1200 - 2,700 psi	1740 - 3,840 psi	87 - 180 psi
Certification and compliance	3.1 Traceability, EN16643:2016, FDA (materials), SAE J1737, TS 16949:2016	3.1 Traceability, EN16643:2016, FDA (materials), SAE J1737, TS 16949:2016	3.1 Traceability, EN16643:2016, FDA (materials), SAE J1737, TS 16949:2016
Operating temperature range	-73 °C to 180 °C	-73 °C to 260 °C	-73 °C to 260 °C
Bend radius	38 - 150 mm	19 - 75 mm	38 - 150 mm
Operating temperature range	-100 °F to 356 °F	-100 °F to 500 °F	-100 °F to 500 °F
Bend radius	1.5 - 6 in	0.75 - 3 in	1.5 - 6 in
Braid type			None
Cover	None	None	None
End fitting	BSP and NPT threaded fittings, CAM and groove fittings, DIN 11851 fittings, ENCAP end fittings, JIC fittings, PTFE dip pipe fittings, Sanitary triclamp fittings, Swivel flange fittings	BSP and NPT threaded fittings, CAM and groove fittings, DIN 11851 fittings, ENCAP end fittings, JIC fittings, PTFE dip pipe fittings, Sanitary triclamp fittings, Swivel flange fittings	BSP and NPT threaded fittings, CAM and groove fittings, DIN 11851 fittings, ENCAP end fittings, JIC fittings, PTFE dip pipe fittings, Sanitary triclamp fittings, Swivel flange fittings
Vacuum resistance		Vacuum resistant to -0.9 bar up to 150 °C (302 °F)

Materials of construction

Liner tube	Anti-static PTFE, Natural PTFE
Braid	Aramid fibre, Stainless steel
