Overview

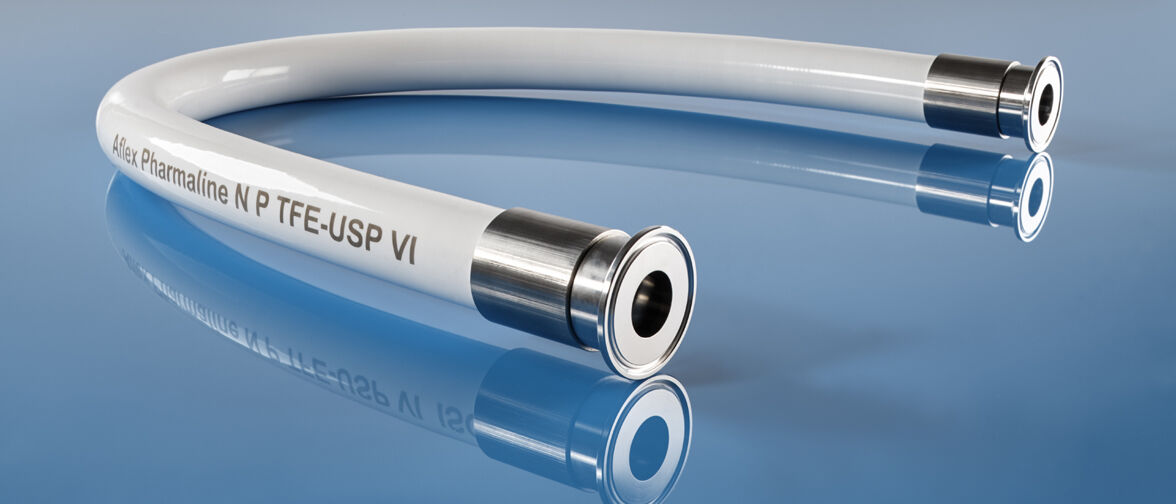

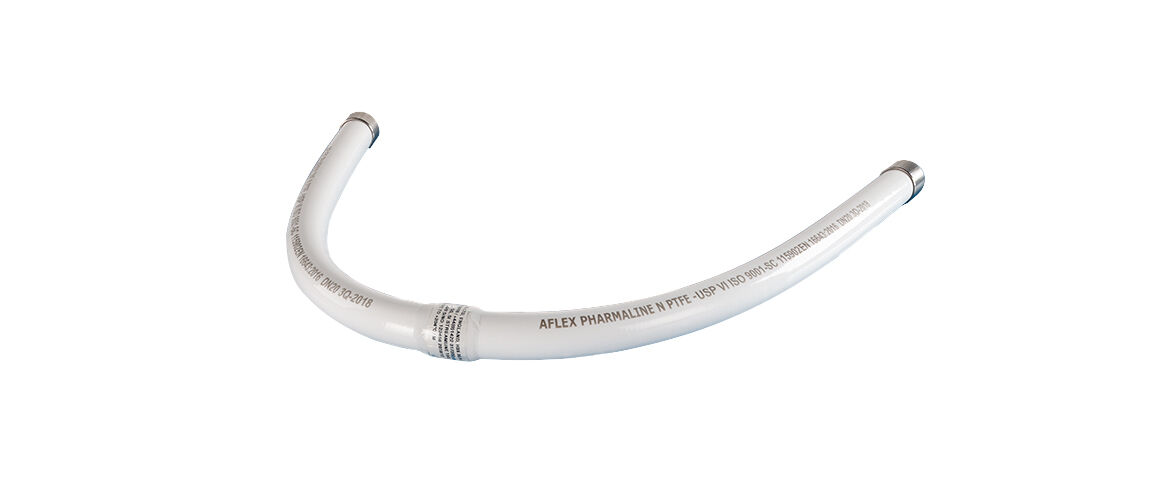

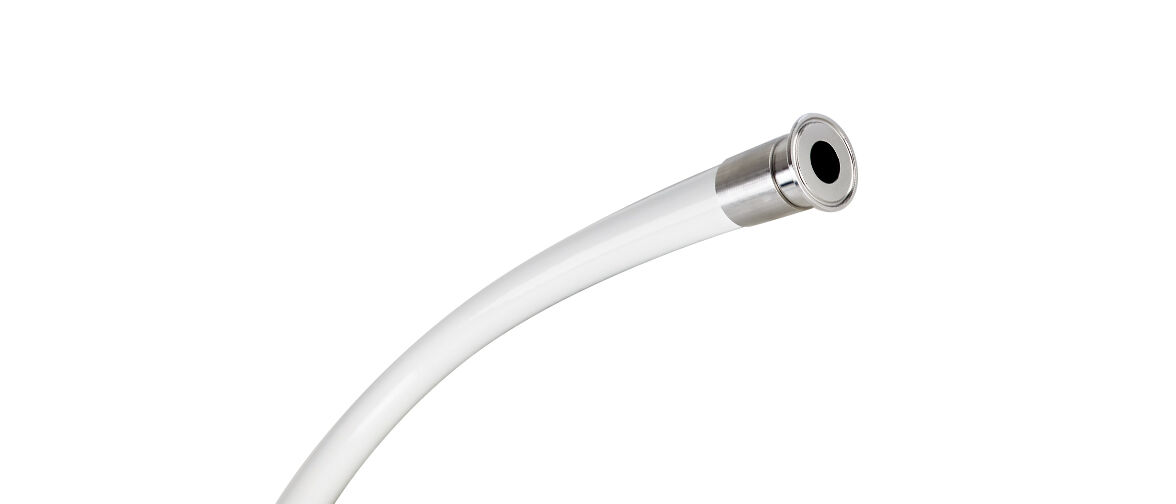

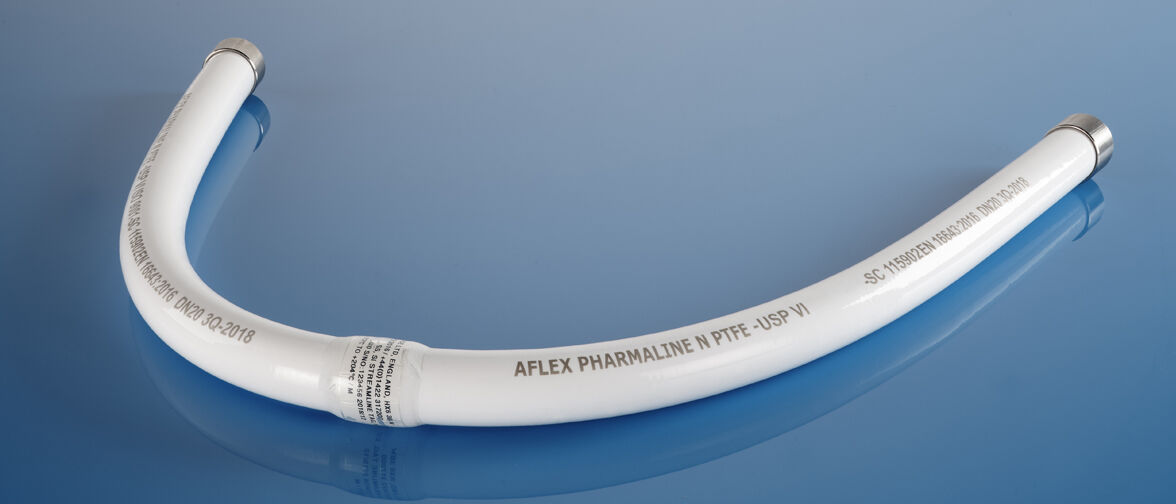

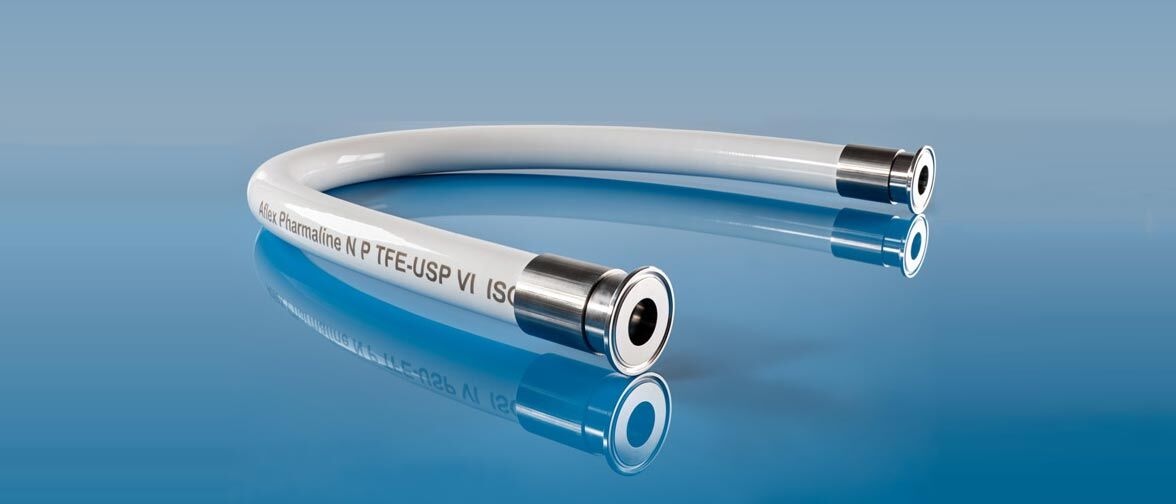

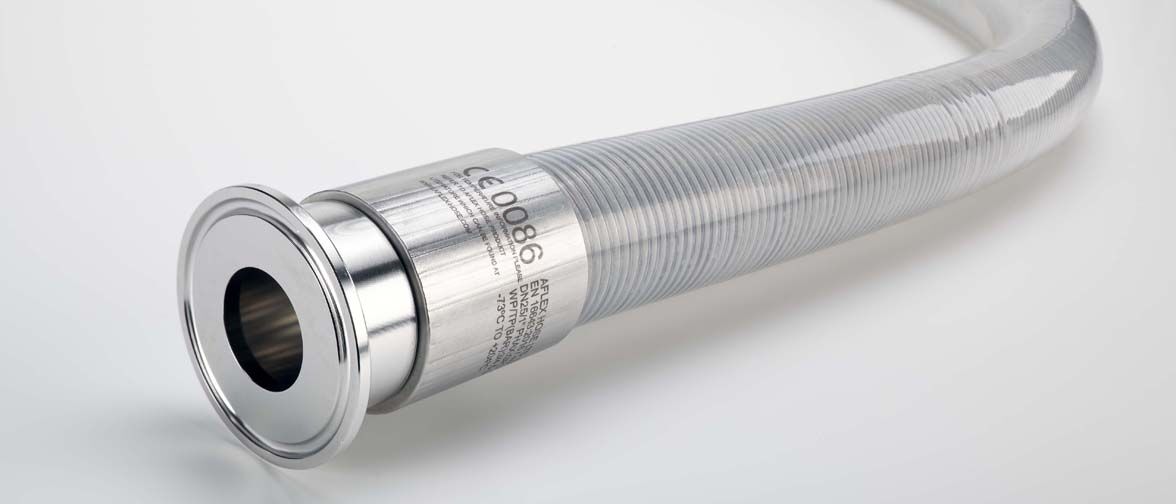

Pharmaline N and X

PTFE-lined hose for biotechnology and pharmaceutical fluid transfers

Designed to replace silicone rubber transfer hoses in pharmaceutical, chemical and food process fluid transfer applications, Pharmaline N and X hoses are smooth bore and withstand repeated autoclave cycles.

Features and benefits

  • Replaces silicone rubber hose in applications where total internal chemical resistance is required
  • Smooth bore for uninterrupted fluid flow and ease of cleaning
  • Very flexible, yet kink resistant with a natural or anti-static PTFE liner
  • Range of non-lined end fittings with laser etched ferrule for ultimate traceability
  • Fully encapsulated hygienic labeling system available
  • Assemblies suitable for COP soaking, CIP and SIP cleaning, and extensive autoclave sterilizing cycles

Technical summary

Nominal bore size6.4 - 80 mm
Nominal bore size0.25 - 3 in
Outside diameter11.6 - 92.8 mm
Outside diameter0.456 - 3.654 in
Max. operating pressure80 bar
Max. operating pressure1160 psi
Certification and compliance(EU) 10/2011, 3.1 Traceability, 3-A 62-02, ATEX, EN16643:2016, FDA (materials), USP Class VI
Bend radius19 - 350 mm
Bend radius0.75 - 13.78 in
BraidNone
CoverSilicone rubber

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Share

Performance

Pharmaline N performance

Nominal hose bore size Actual hose bore size Helix wire Outside diameter of cover Minimum bend radius *Maximum working pressure Burst pressure Weight per unit length
in mm in mm in mm in mm psi bar psi bar lb/ft kg/mtr
1/4 6.4 0.260 6.6 - 0.460 11.6 3/4 19 1,160 80 4,641 320 0.11 0.17
3/8 9.5 0.382 9.7 - 0.610 15.5 1 25 1,015 70 4,061 280 0.14 0.22
1/2 12.7 0.516 13.1 ✔ 0.845 21.4 1 1/2 38 870 60 3,480 240 0.25 0.37
5/8 16.0 0.638 16.2 ✔ 0.990 25.2 2 50 725 50 2,900 200 0.35 0.52
3/4 19.0 0.760 19.3 ✔ 1.120 28.5 2 1/2 63 655 45 2,610 180 0.42 0.65
1 25.4 1.012 25.7 ✔ 1.455 37.0 4 100 580 40 2,320 160 0.57 0.88
1 1/4 32.0 1.268 32.2 ✔ 1.755 44.6 5 1/4 130 510 35 2,030 140 0.85 1.30
1 1/2 38.0 1.516 38.5 ✔ 2.035 51.7 6.70 170 435 30 1,740 120 1.14 1.70
2 50.0 2.012 51.1 ✔ 2.580 65.6 8.27 210 405 28 1,624 112 1.58 2.36
2 1/2 65.0 2.508 63.7 ✔ 3.169 80.5 11.81 300 290 20 1,100 80 2.41 3.59
3 80.0 3.024 76.8 ✔ 3.654 92.8 13.78 350 218 15 870 60 2.96 4.40
* Maximum working pressures vary with temperature. The maximum working pressure (MWP) of a hose assembly is limited to the lowest of the MWP’s of either of the two end fittings, or of the hose itself as listed above. The MWP of the hose reduces as the operating temperature increases, consult Aflex Hose for guidance.

Pharmaline X performance

Nominal hose bore size Actual hose bore size Helix wire Outside diameter of cover Minimum bend radius † Maximum working pressure Burst pressure Weight per unit length
in mm in mm in mm in mm psi bar psi bar lb/ft kg/mtr
1/4 6.4 0.260 6.6 - 0.456 11.6 11/4 30 109 7.5 435 30 0.06 0.09
3/8 9.5 0.382 9.7 - 0.610 15.5 11/2 38 87 6.0 348 24 0.09 0.14
1/2 12.7 0.516 13.1 ✔ 0.845 21.4 23/8 60 84 5.8 334 23 0.21 0.32
5/8 16.0 0.638 16.2 ✔ 0.990 25.2 21/2 64 72 5.0 290 20 0.19 0.29
3/4 19.0 0.760 19.3 ✔ 1.120 28.5 3 75 72 5.0 290 20 0.37 0.55
1 25.4 1.012 25.7 ✔ 1.455 37.0 43/4 120 60 4.0 240 16 0.44 0.81
11/4 32.0 1.268 32.2 ✔ 1.755 44.6 5 1/2 140 43 3.0 175 12 0.50 0.75
11/2 38.0 1.516 38.5 ✔ 2.035 51.7 7 180 29 2.0 116 8 0.74 1.11
2 50.0 2.012 51.1 ✔ 2.580 65.6 12 300 29 2.0 116 8 1.28 1.91
† Maximum working pressures do not vary with temperature

Specifications

Technical specifications

Pharmaline NPharmaline X
Nominal bore size6.4 - 80 mm6.4 - 50 mm
Nominal bore size0.25 - 3 in0.25 - 2 in
Actual bore size6.8 - 76.8 mm6.8 - 51.6 mm
Actual bore size0.27 - 3.024 in0.27 - 2.031 in
Length15 - 30 m30 m
Length49 - 100 Ft100 Ft
Outside diameter11.6 - 92.8 mm11.6 - 65.6 mm
Outside diameter0.46 - 3.654 in0.456 - 2.58 in
Max. operating pressure80 bar7.5 bar
Max. operating pressure1160 psi109 psi
Burst pressure60 - 320 bar8 - 30 bar
Burst pressure870 - 4,641 psi116 - 435 psi
Certification and compliance(EU) 10/2011, 3.1 Traceability, 3-A 62-02, ATEX, EN16643:2016, FDA (materials), USP Class VI (EU) 10/2011, 3.1 Traceability, 3-A 62-02, ATEX, EN16643:2016, FDA (materials), USP Class VI
Operating temperature range -73 to 204 °C-73 to 204 °C
Bend radius19 - 350 mm30 - 300 mm
Operating temperature range -100 to 400 °F-100 to 400 °F
Bend radius0.75 - 13.78 in1.25 - 12 in
BraidNone
CoverSilicone rubber Silicone rubber
End fittingBSP 60° cone seat female fittings, CAM and groove fittings, Grooved standpipe fittings, JIC fittings, NPT and BSPT fittings, PTFE dip pipe fittings, Swivel flange fittings BSP 60° cone seat female fittings, CAM and groove fittings, Grooved standpipe fittings, JIC fittings, NPT and BSPT fittings, PTFE dip pipe fittings, Swivel flange fittings
Labelling optionsColor coding, Standard, Streamline tagging Color coding, Standard, Streamline tagging
Vacuum resistanceVacuum resistant to -0.9bar up to 150C (302F) Vacuum resistant to -0.9bar up to 150C (302F)

Materials of construction

Helical wireStainless steel 316
Liner tubeAntistatic PTFE, Natural PTFE
Stainless steel
Wire braidStainless steel

Literature

Brochures

  1. Pharmaline N and X technical brochure (US).pdf
    PDF - 2.1mb
  2. PTFE hoses for Biotech and Pharmaceutical (US).pdf
    PDF - 1.4mb

Datasheet

  1. Pharmaline N datasheet (US).pdf
    PDF - 259.9kb
  2. Pharmaline X datasheet (US).pdf
    PDF - 220.6kb

Other Resources

  1. special-usage-conditions-phan.pdf
    PDF - 140.4kb
  2. configure-for-abrasion.pdf
    PDF - 232.1kb
  3. configure-for-bend.pdf
    PDF - 164.2kb
  4. length-calculation.pdf
    PDF - 192.4kb

Options and accessories

Braids, Covers and External Protections

Hose
  Bioflex Ultra Pharmaline N Pharmaline X FaBLINE Corroflon Corroline+ Smoothbore Hyperline FX Visiflon
Tube only -TO ✔       ✔   ✔ ✔ ✔
Stainless Steel - SS ✔       ✔   ✔ ✔ ✔
Rubber Covered - RC ✔     ✔ ✔ ✔
Polypropylene Braid - PB ✔       ✔
Platinum Cured - SI ✔ ✔ ✔ ✔ ✔
Braids
  Bioflex Ultra Pharmaline N Pharmaline X FaBLINE Corroflon Corroline+ Smoothbore Hyperline FX Visiflon
Plastic Rubber option         ✔   ✔ ✔
Aramid               ✔
Kynar Braid         ✔
Hastelloy Braid         ✔
Blue EPDM ✔     ✔ ✔
Black EPDM ✔       ✔ ✔
External protections
  Bioflex Ultra Pharmaline N Pharmaline X FaBLINE Corroflon Corroline+ Smoothbore Hyperline FX Visiflon
Safeguard Protection Sleeve - SG ✔ ✔ ✔ ✔ ✔ ✔
Scuff Ring - SR ✔ ✔ ✔ ✔ ✔ ✔
Protection Coil - PC ✔ ✔ ✔ ✔ ✔ ✔
Double Rubber Cover End Protection - RC300 ✔   ✔ ✔ ✔ ✔
Double Rubber Cover End Protection - DBK300 ✔       ✔   ✔ ✔ ✔



End Fittings

  Bioflex Ultra Pharmaline N Pharmaline X FaBLINE Corroflon Corroline+ Smoothbore Hyperline FX Visiflon
Swivel Flange Fittings - Non-Lined ✔ ✔ ✔ ✔ ✔ ✔
Swivel Flange Fittings - Lined ✔     ✔ ✔ ✔
Cam & Groove Fittings Male Non-Lined ✔ ✔ ✔ ✔ ✔ ✔
Cam & Groove Fittings Male Lined ✔     ✔ ✔ ✔
Cam & Groove Fittings Female Non-lined ✔ ✔ ✔ ✔ ✔ ✔
Cam & Groove Fittings Female Lined ✔     ✔ ✔ ✔
Sanitary Triclamp Fittings PTFE Lined and Flared ✔     ✔ ✔
Sanitary Triclamp Fittings - Non-Lined ✔ ✔ ✔ ✔ ✔ ✔
Sanitary & Mini Sanitary ✔ ✔ ✔ ✔ ✔ ✔
Sanitary Triclamp Fittings - 90° Elbow Fitting ✔ ✔ ✔ ✔ ✔ ✔
DIN 11851 / SMS Fittings - PTFE Lined ✔     ✔ ✔
DIN 11851 Fittings - Non-Lined ✔ ✔ ✔ ✔ ✔ ✔
RJT Female Fittings - Non-lined ✔ ✔ ✔ ✔ ✔ ✔
BSP & NPT Threaded Fittings - NPT & BSPT Fittings ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
BSP & NPT Threaded Fitting - BSP 60° Cone seat female fittings ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
JIC Fittings ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
PTFE Dip Pipe Fittings ✔ ✔ ✔ ✔ ✔
3-A Sanitary Fittings ✔ ✔ ✔ ✔
90° Elbow Fitting ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Grooved Standpipe Fittings ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
IDF Female / Male - Non-lined ✔ ✔ ✔ ✔ ✔
ENCAP Fittings ✔ ✔ ✔ ✔ ✔
PTFE Tail or Hydraulic Fittings             ✔ ✔ ✔
PTFE Tail Fittings         ✔   ✔ ✔ ✔

How to order

Specify all requirements in order shown below:

  1. Quantity
  2. Hose size
  3. PTFE Liner
  4. Braid
  5. External Cover
  6. Protection system
  7. Length
  8. End fittings
Example
Written description 4 off x 1” bore Bioflex Ultra, AS, SS, RC, DRC-300 hose x 3.00 metres long.
Both ends non-lined ANSI 150# S/S Flanges
Part numbers 4 off Part No. 16-BFXU/AS-RC-00-3.00m-12-12, with DRC 300 at both ends.



Special requirements:

  • Hose construction
  • Tagging information
  • Certification
  • Special testing

Specify full written description on enquiry or purchase order:

Hose Grades:

PTFE liner Braids Rubber covers
Natural (GP) 316 stainless steel (SS) Platinum cured silicone
Antistatic (AS) Polypropylene (PB) Blue EPDM rubber cover (RC)
    Black EPDM rubber cover (BK)

External protections available – see braid, covers and end fittings page.  

Bioflex Ultra assembly length and limitations

LISTED MINIMUM LENGTHS DO NOT INCLUDE FITTINGS.

Hose length + end fittings = Total hose assembly length (sealing face to sealing face)

Lengths made to customer requirement. Tolerance +2 %/-0 %. Closer tolerances available to special order.

Nominal Size of Hose Minimum Hose Length Between Fittings Maximum Hose Assembly Length
Longer lengths may be available by special order
Used Straight Flexed Through 90°
All Grades TO, KYB Grades SS, PB RC Grades
inches (mm) inches (mm) inches (mm) inches (mm) Metres (ft)
3/8 (10) 3 (75) 3.00 (75) 3.00 (75) 100 (30)
1/2 (15) 3 (75) 3.00 (75) 3.00 (75) 100 (30)
5/8 (16) 3 (75) 4.00 (100) 3.00 (75) 100 (30)
3/4 (20) 3 (75) 4.72 (120) 4.00 (100) 100 (30)
7/8 (22) 3 (75) 5.71 (145) 4.00 (100) 100 (30)
1 (25) 3 (75) 6.89 (175) 4.33 (110) 100 (30)
11/4 (32) 4 (100) 8.66 (220) 6.30 (160) 100 (30)
13/8 (35) 4 (100) 10.04 (255) 7.48 (190) 100 (30)
11/2 (40) 4 (100) 11.22 (285) 8.66 (220) 100 (30)
17/8 (48) 4 (100) 17.32 (440) 11.81 (300) 100 (30)
2 (50) 4 (100) 18.70 (475) 12.40 (315) 100 (30)
21/2 (65) 4 (100) 27.95 (710) 18.70 (475) 60 (18)
3 (80) 4 (100) 32.48 (825) 21.65 (550) 50 (15)



End Fittings

Large range of ‘standard’ end fittings available.

Special order—non-standard grades of SS or materials such as Hastelloy or Monel.

Specification Equivalents
Grade BS
British Standard		 AISI
American Standard or
C = Casting Grade		 EN
European Norm
316L SS BS 316 S11 AISI 316 L EN1.4404
316C SS BS 316 C16 CF8M EN 1.4408
304 SS BS 304 S15 AISI 304 EN 1.4301
