Overview

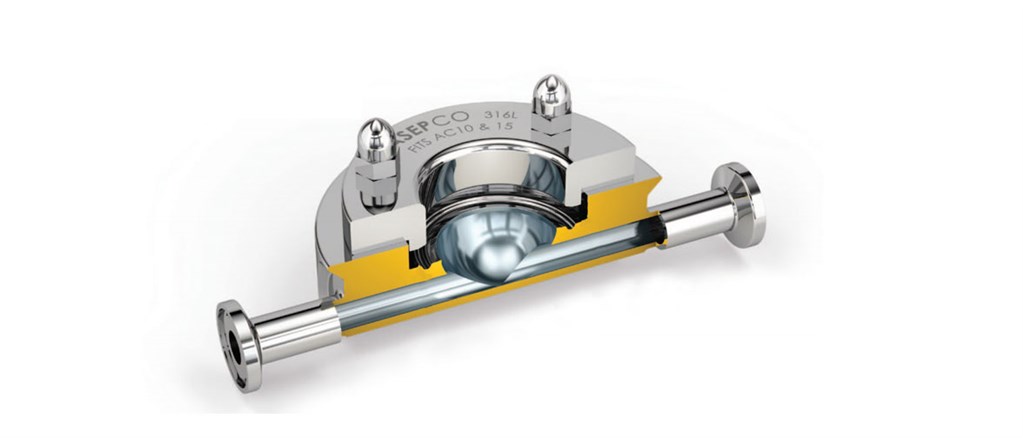

ASEPCONNECT™ inline connector

ASEPCO close couple connectors are for connecting flush-mounted probes and instruments to process lines. They are easier to install and clean than the alternatives, and have ASEPCO's patented aseptic seal, which is based on the same reliable seal that you find in our valves.

Features and benefits

Patented sealing face improves gasket sealing edge to eliminate leakage
Clean, aseptic design for use in critical aseptic processing applications
Easy to place, seal, and inspect, thereby lowering maintenance costs
Seamless design eliminates dead legs and joint leakage
Monel studs prevent galling during maintenance
Clearance slots for use with rupture disks
Optional integrated valve allows for easy sterilization

Technical summary

Mounting type	Flush
Connection	Tri-clamp component connection
Surface finish options	Electropolished, Max 10 micro-inch Ra (0.25 µm Ra), Max 15 micro-inch Ra (0.375 µm Ra), Max 20 micro-inch Ra (0.5 µm Ra)
Certification and compliance	ISO 9001
Standards	ASME BPE, CE-PED

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

	ASEPCONNECT inline
Mounting type	Flush
Sizes	1.0", 1.5", 2.0"
Connection	Tri-clamp component connection
Operating temperature range	-80 to 200 °C
Operating temperature range	-112 to 392 °F
Operating gauge pressure range	-14.5 to 101.5 psig
Surface finish options	Electropolished, Max 10 micro-inch Ra (0.25 µm Ra), Max 15 micro-inch Ra (0.375 µm Ra), Max 20 micro-inch Ra (0.5 µm Ra)
Certification and compliance	ISO 9001
Standards	ASME BPE, CE-PED
Weight	1.81 - 2.36 kg
Weight	4 - 5.2 lbs

ASEPCONNECT inline dimensions

Size	A	B	C	D
inches	in (mm)	in (mm)	in (mm)	in (mm)
1.50	1.64 (41.7)	6.15 (156.2)	0.50 (12.7)	1.37 (34.8)
2.00	2.13 (54.1)	6.65 (168.9)	0.50 (12.7)	1.87 (47.5)

Size	Weirless Size	A	B	C	D
inches	inches	in (mm)	in (mm)	in (mm)	in (mm)
1.50	0.50	1.64 (41.7)	6.15 (156.2)	0.50 (12.7)	1.37 (34.8)
2.00	0.50	2.13 (54.1)	6.65 (168.9)	0.50 (12.7)	1.87 (47.5)
1.50	0.75	1.64 (41.7)	6.15 (156.2)	0.75 (19.1)	1.37 (34.8)
2.00	0.75	2.13 (54.1)	6.65 (168.9)	0.75 (19.1)	1.87 (47.5)
