Hose pump elements

APEX F-NBR hose

Order a sample

Overview

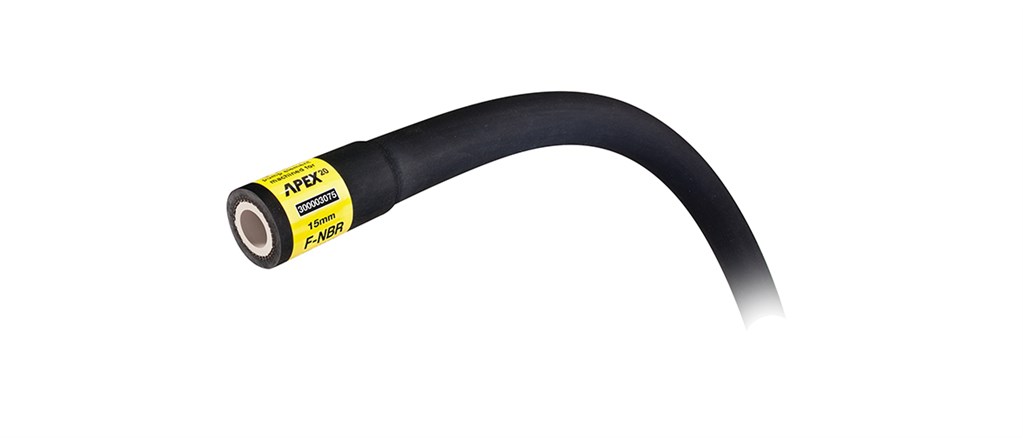

APEX F-NBR hose elements

The hose element is critical to ensure pump performance, durability and efficiency. Bredel composite reinforced hoses are constructed from high-quality compound rubbers reinforced with up to four individual layers of braided nylon, and finished by high-precision machining. White inner layer suitable for food contact. Outer layers are machined to ensure critical tolerances are maintained.

Suitable for all food products including oils and greases. Meets EC standards. Available for APEX 10/15/20 pumps only.

Perfect 100 % compression eliminates slippage which can destroy shear sensitive product and reduce metering accuracy.

Examples of compatible media:

Fruit and fruit concentrates
Yoghurt and dairy products
Yeast, sugar, food additives
Resistant to various cleaning chemicals

Chemical Compatibility Guide

Features and benefits

Tight tolerances for low stress on bearings
Perfect compression for long life
Excellent suction capability up to 9 mWC (354 inWC)
High pressure capability 8 bar (116 psi)
Repeatable volumetric accuracy to ± 1 %
Consistent capacity independent of varying suction and discharge conditions
Exceptional performance when handling high viscosity product
Max. fluid temperature: 80 ºC (176 ºF), Min. fluid temperature: -10 ºC (14 ºF)

Technical summary

Max. operating pressure	8 bar
Max. operating pressure	116 psi
Bore size	10 - 20 mm
Bore size	0.39 - 0.79 in
Wall thickness	8.5 mm
Wall thickness	0.335 in

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Specifications

Technical specifications

	APEX F-NBR Hose 10	APEX F-NBR Hose 15	APEX F-NBR Hose 20
Max. operating pressure	8 bar	8 bar	8 bar
Max. operating pressure	116 psi	116 psi	116 psi
Max. suction capability	9 mWC	9 mWC	9 mWC
Max. suction capability	354 inWC	354 inWC	354 inWC
Suction capability (80% Flow rate)	8 mWC	8 mWC	8 mWC
Suction capability (80% Flow rate)	315 inWC	315 inWC	315 inWC
Operating temperature range	-20 °C to 45 °C	-20 °C to 45 °C	-20 °C to 45 °C
Operating temperature range	-4 °F to 113 °F	-4 °F to 113 °F	-4 °F to 113 °F
Fluid temperature range	-10 °C to 80 °C	-10 °C to 80 °C	-10 °C to 80 °C
Fluid temperature range	14 °F to 176 °F	14 °F to 176 °F	14 °F to 176 °F
Bore size	10 mm	15 mm	20 mm
Bore size	0.39 in	0.59 in	0.79 in
Wall thickness	8.5 mm	8.5 mm	8.5 mm
Wall thickness	0.335 in	0.335 in	0.335 in
Length	700 mm	690 mm	690 mm
Length	27.5 in	27.2 in	27.2 in
Weight	0.4 kg	0.52 kg	0.61 kg
Weight	0.88 lbs	1.21 lbs	1.32 lbs

Your local Bredel sales office/distributor can advise the right hose for your application. For best pump performance use Bredel Genuine Hose Lubricant (NSF Non food Compound Program Listed, category H1)
