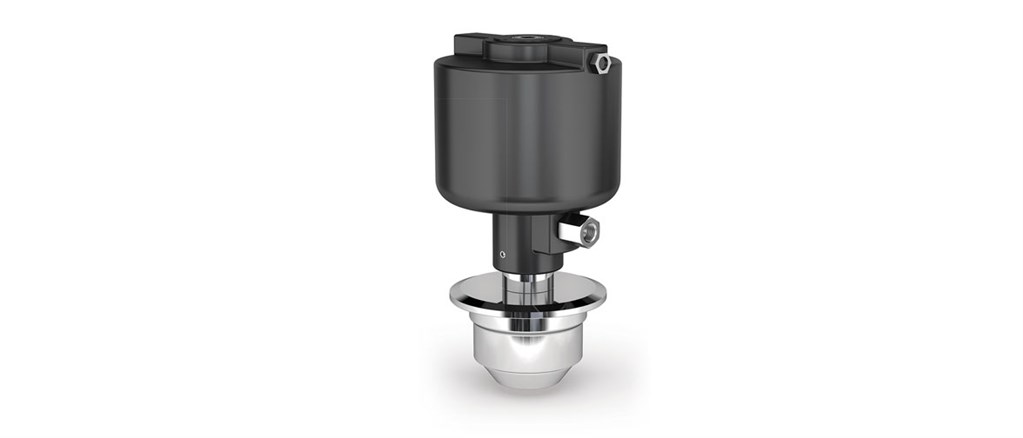

The AKS actuator series is a light weight actuator series reducing installation needs for in-line valve piping systems, reducing process and maintenance needs. Durable, easy to maintain actuator made of a plastic housing and stainless steel diaphragm interface. These actuators are available in 0.5" through 1.5" sizes.
Max. operating pressure | 10 bar |
Max. operating pressure | 150 psi |
Compatible valves | Standard (180 degree) Weirless Radial diaphragm tank valves |
Certification and compliance | ISO 9001 |
Standards | 3-A, ASME BPE, ATEX 2014/34/EU, CE Ex II2G Ex h II8 T3 Gb, CE-PED |
Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.
In-line valve pneumatic actuators | |
---|---|
Sizes | 0.5", 0.75", 1.0", 1.5" |
Position indication | Rising stem |
Pneumatic air connection fitting | 1/8 inch NPT |
Pneumatic tube connector size | 1/4 in |
Max. operating pressure | 10 bar |
Max. operating pressure | 150 psi |
Min. operating gauge pressure | 70 psig |
Max. operating gauge pressure | 100 psig |
Compatible valves | Standard (180 degree) Weirless Radial diaphragm tank valves |
Certification and compliance | ISO 9001 |
Standards | 3-A, ASME BPE, ATEX 2014/34/EU, CE Ex II2G Ex h II8 T3 Gb, CE-PED |
Size (inch) | A mm (inch) | B mm (inch) | Max travel mm (inch) | Weight kg (lb) | Clearance required for removal mm (inch) |
---|---|---|---|---|---|
0.50 | 143.3 (5.6) | 31.5 (1.2) | 4.4 (0.2) | 0.5 (1.0) | 193.0 (7.6) |
0.75 | 162.6 (6.4) | 50.8 (2.0) | 5.6 (0.2) | 1.0 (2.2) | 213.4 (8.4) |
1.00 | 177.8 (7.0) | 63.5 (2.5) | 5.3 (0.2) | 1.3 (2.9) | 254.0 (10.0) |
1.50 | 188.0 (7.4) | 91.4 (3.6) | 7.0 (0.3) | 2.4 (5.2) | 276.9 (10.9) |
Housing | Nylon, Stainless steel 304 |
Actuator shaft | Stainless steel 316 |
O-ring | EPDM |
Seals | EPDM |
Product number | Product description |
---|---|
FP05-01 | 0.5" Weirless Radial in-line valve AKS pneumatic actuator |
IP08-01 | 0.75" Weirless Radial in-line valve AKS pneumatic actuator |
IP10-01 | 1.0" Weirless Radial in-line valve AKS pneumatic actuator |
IP15-01 | 1.5" Weirless Radial in-line valve AKS pneumatic actuator |
