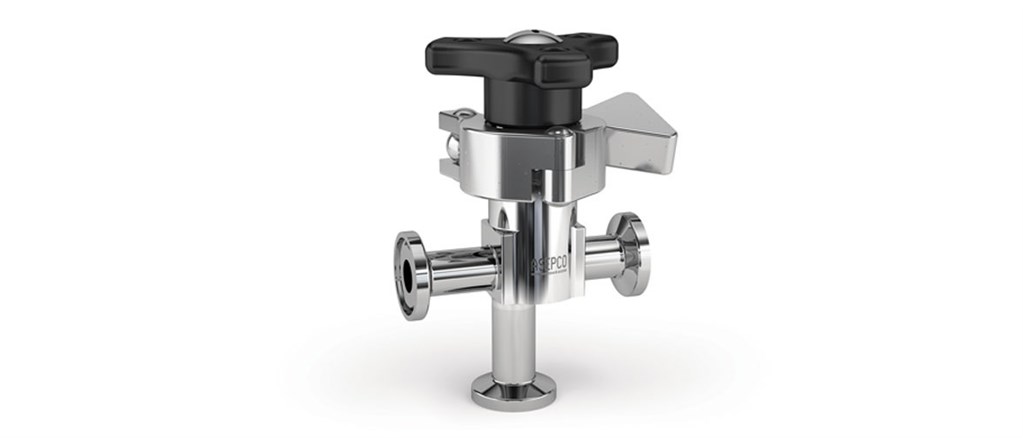

ASEPCO Weirless Radial diaphragm™ sterile access valve

Minimise hold-up volume, with two flow paths in one efficient valve.

Features and benefits

  • Patented radial diaphragm, eliminates entrapment for easy cleaning
  • Configured to suit with clamp-end or weld-end connections, or a secondary valve
  • Complete fluid isolation
  • Features 180 degree install angle with full drainability in multiple orientations
  • Simple Tri-Clamp assembly makes maintenance 80 % faster
  • No readjustment or retightening
  • Integrated travel stops

Technical summary

Mounting typeClamp, In-line
Max. operating pressure10 bar
Max. operating pressure150 psi
Compatible actuatorsFail closed, Fail open, Manual, Pneumatic
Compatible diaphragmsEPDM
Surface finish optionsElectropolished, Max 10 micro-inch Ra (0.25 µm Ra), Max 15 micro-inch Ra (0.375 µm Ra), Max 20 micro-inch Ra (0.5 µm Ra)
Certification and complianceISO 9001
StandardsASME BPE, CE-PED

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

Sterile access valve flow rates
Size (inches) Cv at 0.07 bar (1 psi)
LPM USGPM
0.50 Compact 17.8 4.70
0.75 36 9.51
1.00 70 18.49
1.50 104 27.47

Specifications

Technical specifications

Sterile access valves
Mounting typeClamp, In-line
Flow rate17.8 - 104 l/m
Flow rate4.7 - 27.5 USGPM
Mounting sizes0.5 in, 0.75 in, 1.0 in, 1.5 in
Inlet/outlet ConnectionsHygienic clamp, Tube end
Max. operating pressure10 bar
Max. operating pressure150 psi
Operating temperature range -35 °C to 200 °C
Operating temperature range -30 °F to 400 °F
Compatible actuatorsFail closed, Fail open, Manual, Pneumatic
Compatible diaphragmsEPDM
Surface finish optionsElectropolished, Max 10 micro-inch Ra (0.25 µm Ra), Max 15 micro-inch Ra (0.375 µm Ra), Max 20 micro-inch Ra (0.5 µm Ra)
Certification and complianceISO 9001
StandardsASME BPE, CE-PED
Weight0.44 - 6.47 kg
Weight0.96 - 14.24 lbs

Sterile access valves dimensions

Ported Sterile access valve dimensions
Size (inches) A - with Manual Actuator A - with Pneumatic Actuator B C D
mm in mm in mm in mm in mm in
0.50 Compact 104.1 4.10 160.5 6.32 40.1 1.58 37.6 1.48 63.5 2.50
0.75 111.3 4.38 219.2 8.63 47.2 1.86 49.0 1.93 76.2 3.00
1.00 153.2 6.03 282.2 11.11 50.3 1.98 75.4 2.97 114.3 4.50
1.50 160.8 6.33 384.8 15.15 56.9 2.24 98.6 3.88 139.7 5.50
Combination Sterile access valve dimensions
Size (inches) A - with Manual Actuator A - with Pneumatic Actuator B C D
mm in mm in mm in mm in mm in
0.50 Compact 139.2 5.48 195.6 7.70 74.9 2.95 37.6 1.48 63.5 2.50
0.75 157.5 6.20 265.4 10.45 94.7 3.73 49.0 1.93 76.2 3.00
1.00 239.0 9.41 368.0 14.49 136.1 5.36 75.4 2.97 114.3 4.50
1.50 272.0 10.71 495.8 19.52 168.1 6.62 98.6 3.88 139.7 5.50

Weights

Ported Sterile access valve weights
Size (inches) Valve Body Total Weight with Manual Actuator
kg lb kg lb
0.50 Compact 0.44 0.96 0.69 1.51
0.75 0.86 1.89 1.70 3.74
1.00 1.79 3.94 3.13 6.89
1.50 3.25 7.15 6.68 14.70
Combination Sterile access valve weights
Size inches Valve Body Total Weight with Manual Actuator
kg lb kg lb
0.50 Compact 0.84 1.84 1.34 2.94
0.75 1.62 3.56 3.30 7.26
1.00 3.38 7.43 6.06 13.33
1.50 6.47 14.24 13.32 29.30

Materials of construction

MaterialHastelloy, Stainless steel 316L, Stainless steel AL-6XN

Literature

Brochures

  1. ASEPCO weirless radial diaphragm valves (EN).pdf
    PDF - 600.3kb

Datasheet

  1. Sterile Access Valves datasheet (EN).pdf
    PDF - 365.8kb

Manuals

  1. Inline valve manual (EN).pdf
    PDF - 1.5mb

Actuators

AKS actuator series

  • Hygienic design with laser-etched serial numbers for full product traceability
  • Lightweight plastic construction with 304 SS sleeve and Nylon handle
  • Visual indication of open/closed status
  • 150 psig maximum sealing force

Diaphragms

Diaphragms

Available in silicone and EPDM. Extensively tested to ensure long service life Patented, leak-free static shoulder seal High performance with minimal maintenance

Order Information

Product codes

Sterile access valves product codes

Ported Sterile access valve
Model Code Part Description
FC05-110-1 Weirless valve 0.5” Compact EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 2.5” Face-to-Face & 0.5” clamp-end port 1.58” from centerline 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
IC08-110-1 Weirless valve 0.75” EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 3” Face-to-Face & 0.75” clamp-end port 1.86” from centerline 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
IC10-110-1 Weirless valve 1” EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 4.5” Face-to-Face & 1” clamp-end port 2” from centerline 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
IC15-110-1 Weirless valve 1.5” EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 5.5” Face-to-Face & 1.5” clamp-end port 1.82” from centerline 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
Combination Sterile access valve
Model Code Part Description
FC05-112-1 Weirless valve 0.5” Compact Block & Bleed EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 2.5” Face-to-Face & 0.5” bleed valve with clamp-end outlet 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
IC08-112-1 Weirless valve 0.75” Block & Bleed EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 3” Face-to-Face & 0.75” bleed valve with clamp-end outlet 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
IC10-112-1 Weirless valve 1” Block & Bleed EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 4.5” Face-to-Face & 1” bleed valve with clamp-end outlet 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
IC15-112-1 Weirless valve 1.5” Block & Bleed EN 1.4435 body/EN1.4404 fittings Clamp-end inlet Clamp-end outlet 5.5” Face-to-Face & 1.5” bleed valve with clamp-end outlet 20 micro-inch Ra surface finish electropolished and passivated includes body/actuator clamp
