400/RXMD series panel mount pumps

Overview

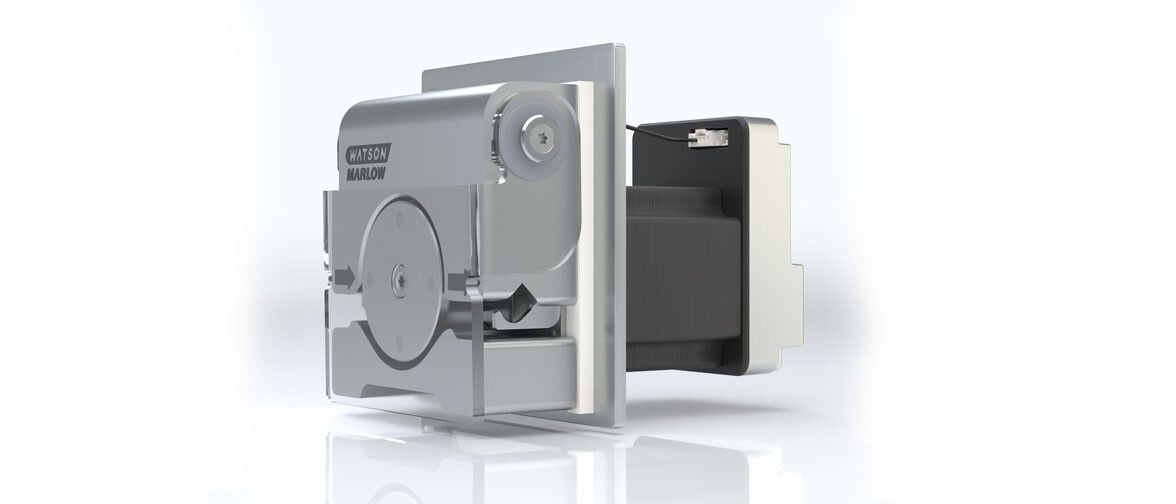

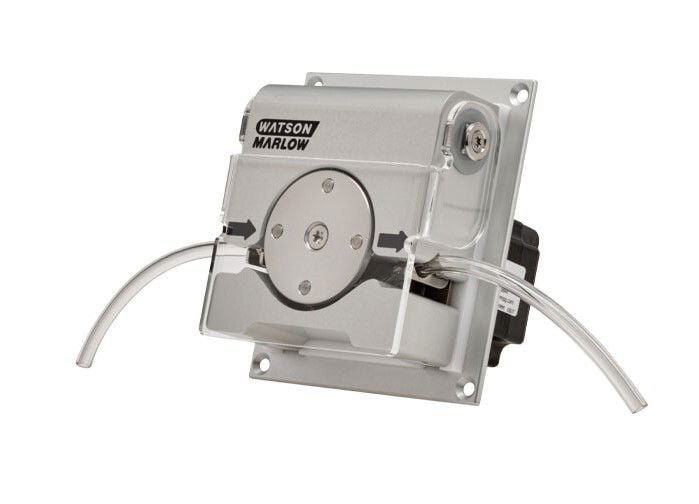

400RXMD pressure controlled pump

Purpose-designed for surgical cooling applications such as RF and microwave ablation.

400RXMD series pumps meets the demands of medical devices applications where flow and pressure control are critical, such as surgical ablation. In medical applications, the control accuracy of the 400RXMD enables precise fluid delivery to enhance effective treatment. Minimising the risk of human error, 400RXMD safeguards your process by design. The ability to factory-set the pump means that the pressure-flow profile can be fine-tuned to the requirements of each application. We therefore test every pump to each customer's specific test protocol.

Drives

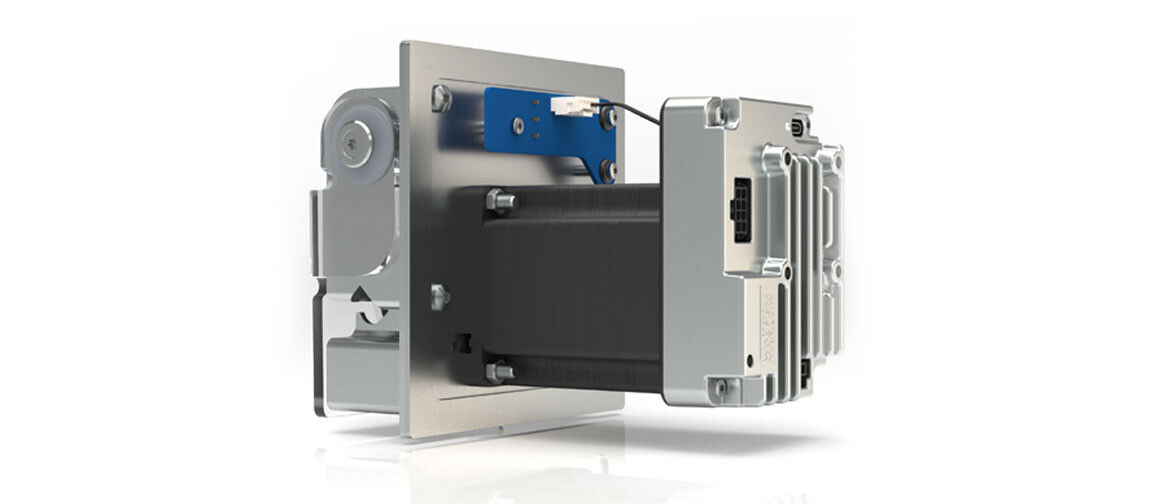

400RXMD DriveSure: 12 V to 48 V DC integrated stepper motor with Industrial Ethernet and analogue control options, sealed mounting plate and PC software (WM Connect)
400ST/RXMD: Stepper motor only for customer control integration
400VDL/RXMD: Brushless DC motor with integrated control

Features

Flows up to 500 ml/min and a pressure of up to 8 bar

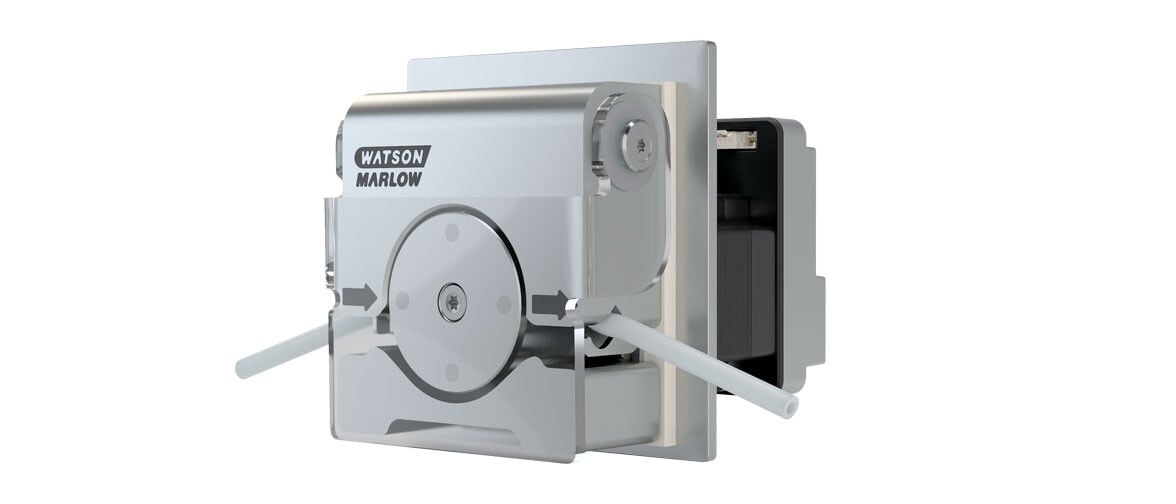

Simple tube-set replacement with automated tube clamps and quick lever loading
Accurate and consistent fluid delivery through an innovative pump setting mechanism
Precision-machined for high performance and long service life
Customised end of line performance testing
Quiet running
Easy to clean

Technical summary

Motor types	DriveSure brushless DC motor, NEMA 24 stepper motor, Stepper motor, Variable speed brushless DC motor
Pumphead options	RX, RXMD
Standards	BS EN 55011-2016+A2-2021, BS EN 61010-1, BS EN IEC 61326-1-2021, CAN/CSA C22.2 No 61010-1, CE, CSA C22.2 No. 61010-1-12/AMD1:2018, EN 61010-1:2010/A1:2019, FCC 47CFR (Part 15), IEC 61010-1, IEC 61010-1:2010/AMD1:2016, RoHS, UL 61010-1, UL 61010-1:2012/R:2

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Performance

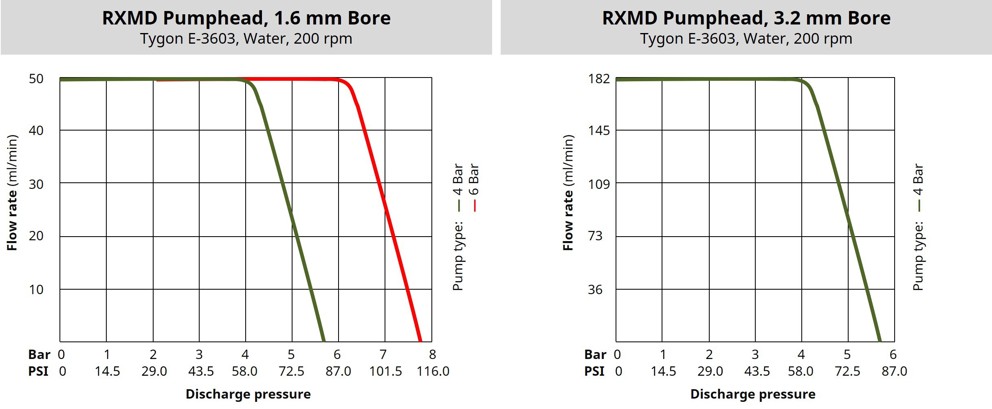

400 RXMD DriveSure ADC/En/Pn performance

Flow Rate (mL/min) by tube bore based on 0.1 rpm (Min) to 550 rpm (Max)
Tube bore (mm)	0.1 RPM	550 RPM
1.6	0.025 (mL/min)	137 (mL/min)
3.2	0.091 (mL/min)	500 (mL/min)

Performance data is based on a 48 V DC power supply, pumping water, with 0 bar inlet and discharge pressure. Actual performance is dependent on power supply voltage (DriveSure range 12 V to 48 V DC). For further information contact your local Watson-Marlow representative.

400 ST/RXMD pump performance

Electrical parameters
Standard Motor	Min. power (W)	Max. power (W)	Current consumption
Stepper 24 V	60 W @ 2 bar ID 1.6 mm	60 W @ 4 bar ID 3.2 mm	Max. 2500 mA

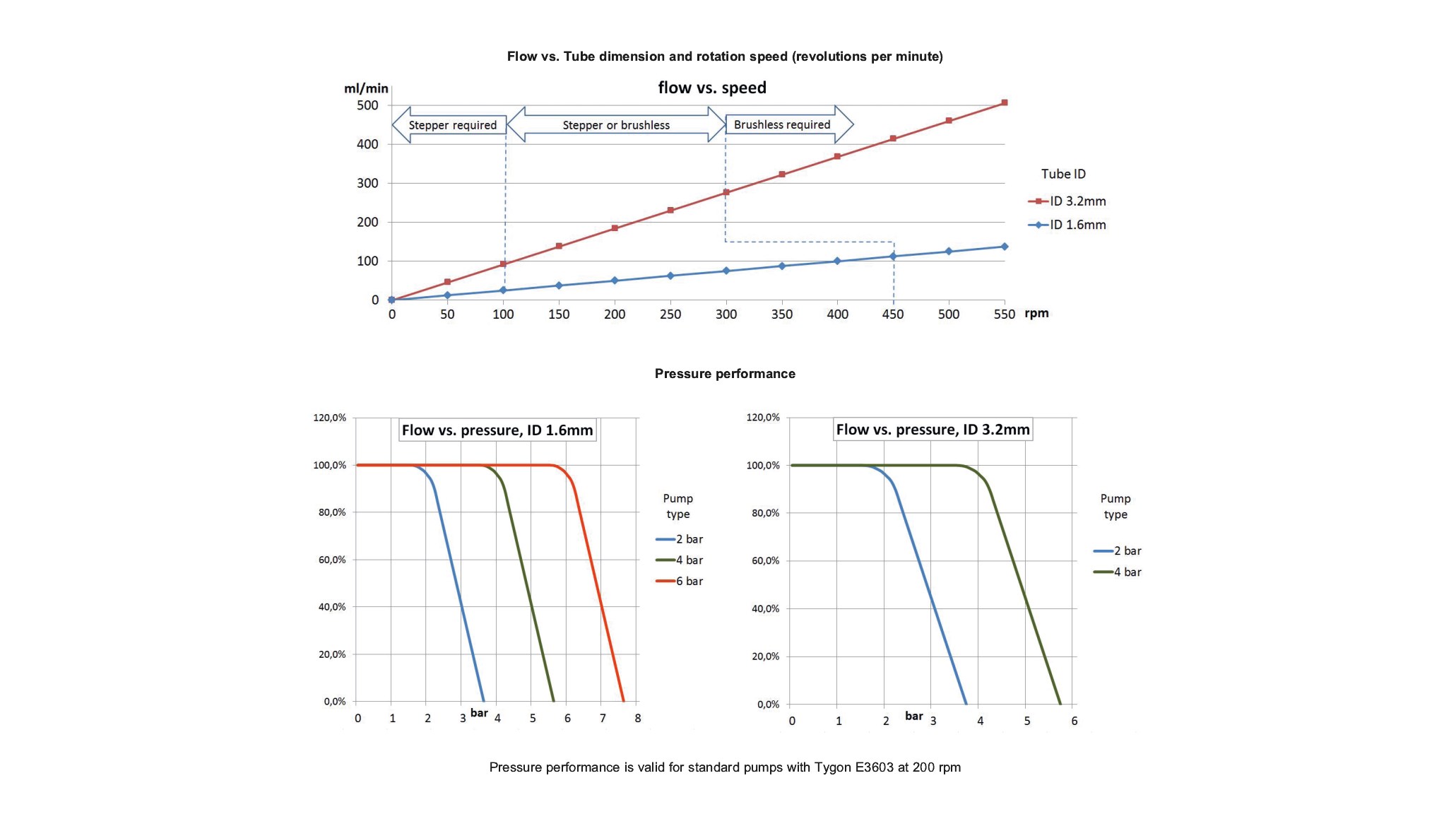

400 VDL/RXMD pump performance

Electrical parameters
Standard Motor	Min. power (W)	Max. power (W)	Current consumption
Brushless 24V	10 W @ 2 bar ID 1.6 mm	30 W @ 4 bar ID 3.2 mm	Max. 1250 mA

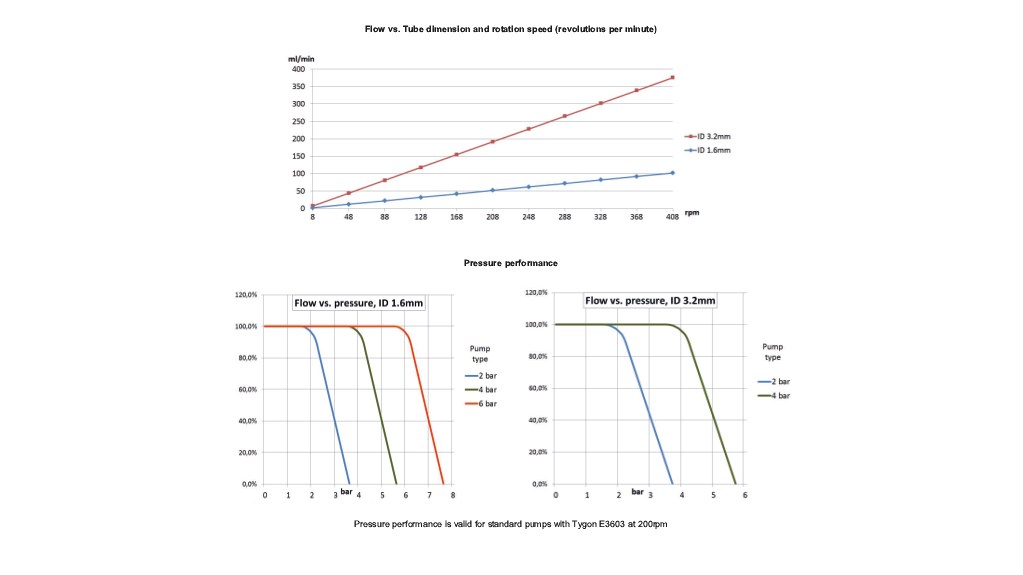

400DriveSure/RXMD performance

Electrical parameters
Standard Motor	Min. power (W)	Max. power (W)	Current consumption
DriveSure	15 W @ 2 bar ID 1.6 mm	25 W @ 4 bar ID 3.2 mm	Continuous 1 A, peak 3.1 A

Specifications

Technical specifications

	400 RXMD DriveSure ADC/En/Pn	400 ST/RXMD pump	400 VDL/RXMD pump
Motor types	NEMA 24 stepper motor	Stepper motor	Variable speed brushless DC motor
Pumphead options	RXMD	RX, RXMD	RX, RXMD
Flow rate range	0.025 ml/min to 500 ml/min	0 ml/min to 500 ml/min	0 ml/min to 500 ml/min
Operating speed range	0.1 rpm to 550 rpm	1 rpm to 450 rpm	100 rpm to 550 rpm
Speed Resolution	0.1 rpm
Supply voltage	12 V to 48 V DC	24 V DC	24 V DC
Operating temperature range	5 °C to 40 °C	5 °C to 40 °C	5 °C to 40 °C
Operating temperature range	41 °F to 104 °F	41 °F to 104 °F	41 °F to 104 °F
Rated Power	75 W	60 W	30 W
Control options	0–10 V, 2–2000 Hz, 4–20 mA, EtherNet/IP™, Fixed speed, Prime speed, PROFINET®		Fixed speed, 0–10 V, 4–20 mA, Potentiometer
Alarms	Cover-open, Hardware fault, Over current, Over temperature, Software fault, Speed, Stall, Under/over voltage
Outputs	Fault, Tacho		Tacho
External Inputs	Prime switch
Weight	1.8 - 1.9 kg	1.37 kg	1.25 kg
Weight	3.968 - 4.189 lbs
Location	Indoor, Enclosure
Humidity	80 % up to 31 °C (88 °F), decreasing linearly to 50 % at 40 °C (104 °F)
Max. altitude	2000 m
Max. altitude	6561 ft
Standards	BS EN 55011-2016+A2-2021, BS EN IEC 61326-1-2021, CSA C22.2 No. 61010-1-12/AMD1:2018, EN 61010-1:2010/A1:2019, FCC 47CFR (Part 15), IEC 61010-1:2010/AMD1:2016, UL 61010-1:2012/R:2019-07
Certification and compliance	CB Certificate, EMC, NRTL certification
Compatible tubing bore size	1.6, 3.2 mm	1.6, 3.2 mm	1.6, 3.2 mm
Compatible tubing wall thickness	1.6 mm	1.6 mm	1.6 mm

For detailed specifications of individual models refer to product reference manual or contact WMFTS representative.

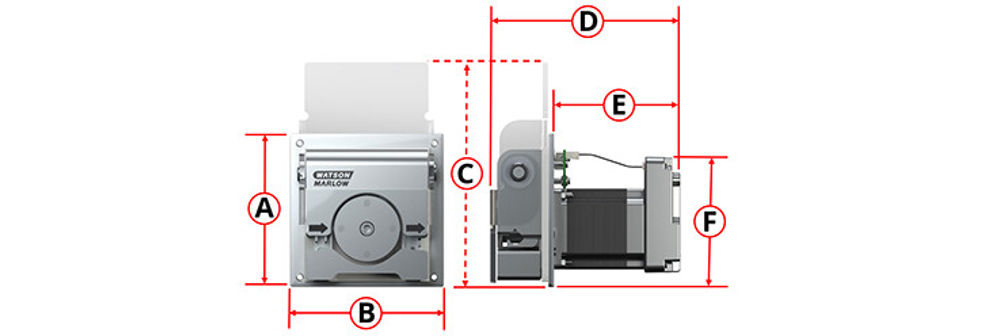

400 RXMD DriveSure ADC/En/Pn dimensions

A		B		C		D		E		F
mm	in	mm	in	mm	in	mm	in	mm	in	mm	in
114	4.49	114	4.49	167	6.57	142	5.39	96	3.78	97	3.82

400 ST/RXMD pump dimensions

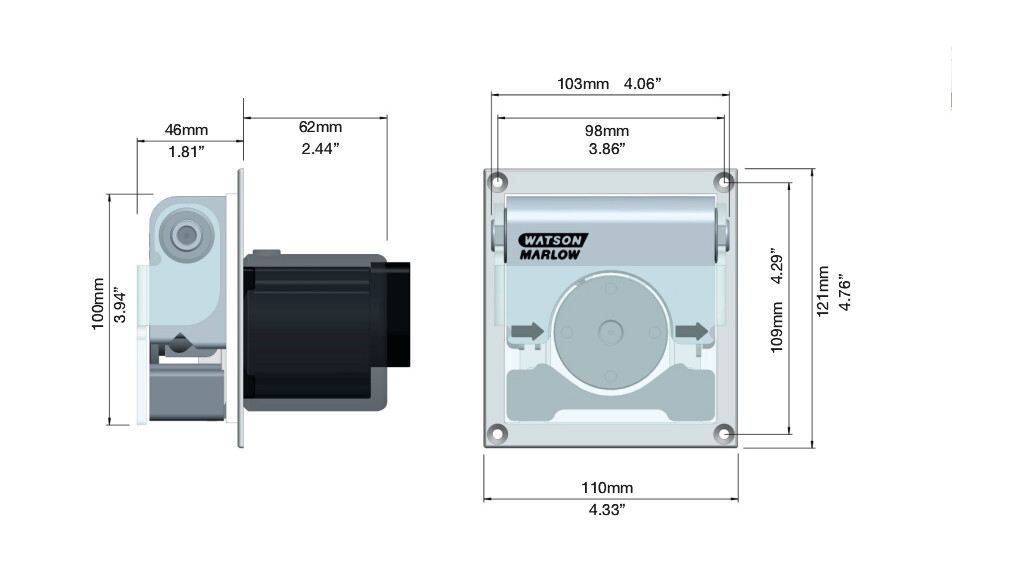

400 VDL/RXMD pump dimensions

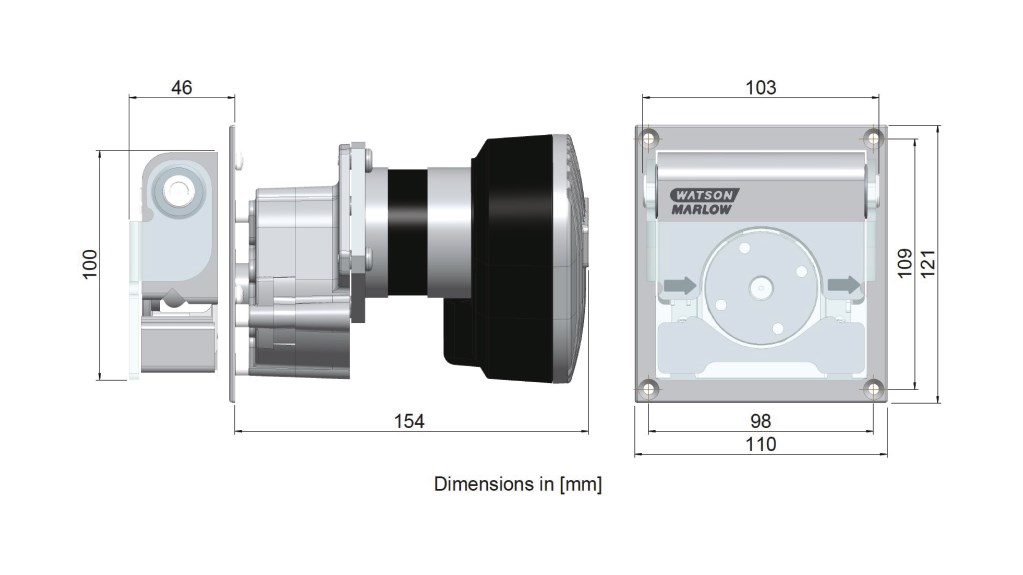

400DriveSure/RXMD dimensions

Materials of construction

Pumphead body assembly	Acrylic glass, Anodised aluminium
Pumphead rotor assembly	Anodised aluminium, Stainless steel
Pumphead roller assembly	Stainless steel
Bearings	Acetal
Driveshaft	Stainless steel
Springs	Stainless steel
Motor	Aluminium, Stainless steel
Controller Housing	ABS/PC, Aluminium
Mounting plate assembly	Anodised aluminium, EPDM, Stainless steel

Information listed covers the complete range. For detailed specifications of individual models/components refer to product reference manual or contact WMFTS representative.

Literature

Brochures

Medical devices and diagnostics brochure (EN).pdf
PDF - 1.5mb

Datasheet

400 ST RXMD datasheet (EN).pdf
PDF - 907.4kb
400 VDL RXMD datasheet (EN).pdf
PDF - 906.8kb
400 RXMD DriveSure ADCEnPn datasheet (EN).pdf
PDF - 912.6kb

Manuals

400RXMD manual (EN).pdf
PDF - 802kb
DriveSure ADC En Pn manual (EN).pdf
PDF - 4.7mb

Other Resources

GSDML-V2.42-Watson Marlow-WM DrivesurePn-20230427.zip
ZIP - 3.9kb
WatsonMarlowConnectInstaller-1.16.1.zip
ZIP - 67mb
WatsonMarlowConnectInstaller-1.17.0.zip
ZIP - 67mb

drivesure-firmware-1.17.0.bundle
BUNDLE - 598.2kb
drivesure-firmware-1.16.1.bundle
BUNDLE - 596.8kb

400RXMD DriveSure Pn.stp
STP - 9.2mb
400RXMD DriveSure En.stp
STP - 9.2mb
400RXMD DriveSure ADC.stp
STP - 8.7mb

WM-DrivesureEn-v1-6.eds
EDS - 84.4kb
WM-DrivesureEn-rev-1-5.eds
EDS - 84.7kb

Videos

Order Information

Product codes

400 RXMD DriveSure ADC/En/Pn product codes

A	B	C	D	E
Control	Cable length	Direction	Max Pressure	Tube bore size
4 = ADC	1 = 1 m (3.28 ft) cable	1 = Clockwise (CW)	4 = 4 bar	3 = 1.6 mm
8 = En (EtherNet/IP)	3 = 3 m (9.84 ft) cable	2 = Counter clockwise (CCW)	6 = 6 bar	4 = 3.2 mm
9 = Pn (PROFINET)

Accessories and Spares
Product	Product code
DriveSure cable pack - 24 V power supply/USB-C - trials only*	009.24CP.DVS
DriveSure cable pack - 48 V power supply/USB-C - trials only*	009.48CP.DVS
1 m Power Cable DriveSure ADC/En/Pn	009.1PW.DVS
3 m Power Cable DriveSure ADC/En/Pn	009.3PW.DVS
1 m Control Cable DriveSure ADC	009.1CC.DVS
3 m Control Cable DriveSure ADC	009.3CC.DVS
Ethernet Cable, RJ45 to RJ45, CAT 5e SHIELDED, 3m	059.9123.000
PROFINET^® Cable, RJ45 to RJ45, CAT 5e SHIELDED, 3m	059.9128.000

*Cable packs do not include mains power lead. If required, order power leads suitable for your region.

400 ST/RXMD pump product codes

Pump product codes
Part number	Product description
040.RW27.031	400ST/RXMD CW 1.6 mm 2 bar
040.RW27.032	400ST/RXMD CW 1.6 mm 4 bar
040.RW27.033	400ST/RXMD CW 1.6 mm 6 bar
040.RW27.011	400ST/RXMD CCW 1.6 mm 2 bar
040.RW27.012	400ST/RXMD CCW 1.6 mm 4 bar
040.RW27.013	400ST/RXMD CCW 1.6 mm 6 bar
040.RW27.034	400ST/RXMD CW 3.2 mm 2 bar
040.RW27.035	400ST/RXMD CW 3.2 mm 4 bar
040.RW27.014	400ST/RXMD CCW 3.2 mm 2 bar
040.RW27.015	400ST/RXMD CCW 3.2 mm 4 bar

Tubing product codes
Bore/wall	Tygon E-LFL	E3603 (PVC)
1.6 mm/1.6 mm	E-LFL.0016.016	E3603.016.16
3.2 mm/1.6 mm		E3603.032.16

400 VDL/RXMD pump product codes

Pump product codes
Part number	Product description
040.QW27.031	400VDL/RXMD CW 1.6 mm 2 bar
040.QW27.032	400VDL/RXMD CW 1.6 mm 4 bar
040.QW27.033	400VDL/RXMD CW 1.6 mm 6 bar
040.QW27.011	400VDL/RXMD CCW 1.6 mm 2 bar
040.QW27.012	400VDL/RXMD CCW 1.6 mm 4 bar
040.QW27.013	400VDL/RXMD CCW 1.6 mm 6 bar
040.QW27.034	400VDL/RXMD CW 3.2 mm 2 bar
040.QW27.035	400VDL/RXMD CW 3.2 mm 4 bar
040.QW27.014	400VDL/RXMD CCW 3.2 mm 2 bar
040.QW27.015	400VDL/RXMD CCW 3.2 mm 4 bar

Tubing product codes
Bore/wall	Tygon E-LFL	E3603 (PVC)
1.6 mm/1.6 mm	E-LFL.0016.016	E3603.016.16
3.2 mm/1.6 mm		E3603.032.16

400DriveSure/RXMD product codes

Pump product codes
Part number	Product description
040.TW27.031	400DS/RXMD CW 1.6 mm 2 bar
040.TW27.032	400DS/RXMD CW 1.6 mm 4 bar
040.TW27.033	400DS/RXMD CW 1.6 mm 6 bar
040.TW27.011	400DS/RXMD CCW 1.6 mm 2 bar
040.TW27.012	400DS/RXMD CCW 1.6 mm 4 bar
040.TW27.013	400DS/RXMD CCW 1.6 mm 6 bar
040.TW27.034	400DS/RXMD CW 3.2 mm 2 bar
040.TW27.035	400DS/RXMD CW 3.2 mm 4 bar
040.TW27.014	400DS/RXMD CCW 3.2 mm 2 bar
040.TW27.015	400DS/RXMD CCW 3.2 mm 4 bar
