Overview

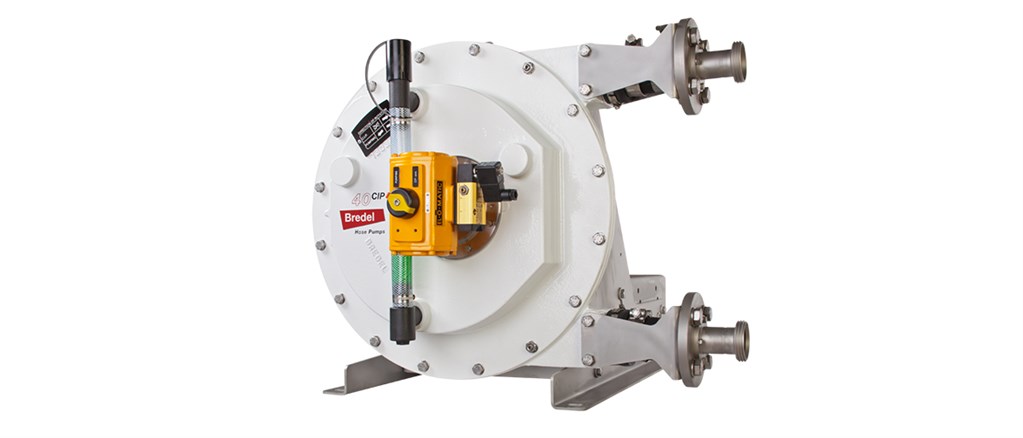

Bredel CIP hose pumps

The Bredel CIP 40 and CIP 50 pumps are designed for food manufacture and other processes that require regular clean in place, with all the advantages of low shear, hygienic pumping. Recommended for sanitary processes, or other applications requiring regular cleaning of the process lines.

Chemical Compatibility Guide

Features and benefits

  • 3A and FDA certified
  • Food approved NBR pump hose, with NSF® registered food grade lubricant
  • Stainless steel sanitary connectors range includes DIN, ASA or JIS
  • Shoes on the rotor retract automatically for cleaning of pump element inside
  • Cam actuated electrically, pneumatically or manually
  • Maximum sterilization temperature 120 ºC
  • Bredel CIP 40 flow rates up to 4,800 L/h (42 GPM), pressures up to 16 bar (232 psi)
  • Bredel CIP 50 flow rates up to 8,500 L/h (77 GPM), pressures up to 16 bar (232 psi)

Technical summary

Max. flow rate continuous8760 L/h
Max. flow rate continuous2311 USGPH
Volume per revolution1.33 - 2.92 L
Max. continuous operating speed50 - 60 rpm
Max. operating pressure16 bar
Max. operating pressure232 psi
Min. starting torque320 - 620 N m
Min. starting torque2832 - 5,487 in.lbs
Weight175 - 265 kg

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

Share

Performance

CIP 40 performance

CIP 50 performance

Specifications

Technical specifications

CIP 40CIP 50
Max. flow rate continuous4788 L/h8760 L/h
Max. flow rate continuous1263 USGPH2311 USGPH
Max. flow rate intermittent4788 L/h8760 L/h
Max. flow rate intermittent 1263 USGPH2311 USGPH
Volume per revolution1.33 L2.92 L
Volume per revolution0.35 USG0.77 USG
Max. continuous operating speed60 rpm50 rpm
Max. intermittent operating speed60 rpm50 rpm
Max. operating pressure16 bar16 bar
Max. operating pressure232 psi232 psi
Max. suction capability9.5 mWC9.5 mWC
Max. suction capability 374 inWC374 inWC
Suction capability (80% Flow rate)9 mWC8 mWC
Suction capability (80% Flow rate)354 inWC315 inWC
Operating temperature range -20 °C to 45 °C-20 °C to 45 °C
Operating temperature range -4 °F to 113 °F-4 °F to 113 °F
Fluid temperature range -20 °C to 80 °C-20 °C to 80 °C
Fluid temperature range -4 °F to 176 °F-4 °F to 176 °F
Min. starting torque320 N m620 N m
Min. starting torque2832 in.lbs5487 in.lbs
Weight175 kg265 kg
Weight386 lbs584 lbs
Pumphead weight 139 kg195 kg
Pumphead weight 306 lbs430 lbs
Hose lubricant required10 L20 L
Hose lubricant required2.6 USG5.3 USG
Port configurationsDown, Left, Right, Up Down, Left, Right, Up
Compatible hose materialsCSM, EPDM, F-NBR, NBR, NR, NR-Metering, NR-Transfer CSM, EPDM, F-NBR, NBR, NR, NR-Metering, NR-Transfer
Compatible tube materialsBioprene Bioprene
Flange assembly typeANSI, DIN, JIS ANSI, DIN, JIS
Sanitary connector optionsDIN 11851, DIN 11864, IDF, RJT, SMS, Tri-clamp DIN 11851, DIN 11864, IDF, RJT, SMS, Tri-clamp
Please consult your Bredel representative for lower or higher temperature operation. Allowable ambient temperature is based on pump capabilities and may be further limited by gearbox ambient capabilities.

CIP 40 dimensions

Type A B C C D Ød E F G H H1 Jmax K L L1 L2 M N O Q R
Bredel CIP 40 (mm) 702 412 2.5 10 430 40 110 454 508 615 325 414 64 * 260 80 25 700 25 18 110
Bredel CIP 40 (inches) 27.6 16.2 0.1 0.4 16.9 1.57 4.3 17.9 20.0 24.2 12.8 16.3 2.5 * 10.2 3.1 1.0 27.6 1.0 0.7 4.3

CIP 50 dimensions

Type A B C C D Ød E F G H H1 Jmax K L L1 L2 M N O Q R
Bredel CIP 50 (mm) 835 475 3 10 554 50 123 444 496 760 400 433 78 * 325 100 25 870 25 18 125
Bredel CIP 50 (inches) 32.9 18.7 0.1 0.4 21.8 1.97 4.8 17.5 19.5 29.9 15.7 17.0 3.1 * 12.8 3.6 1.0 34.3 1.0 0.7 4.9

Materials of construction

Hose materialBioprene (tube), CSM, EPDM, F-NBR, Natural rubber (NR), NBR, NBR for food, NR-Metering
HousingCast iron
Rotor assemblyCast iron
Cover assemblyCast iron
Brackets and fastenersStainless steel 316
Support frameGalvanised steel, Stainless steel 316
Hose clampsStainless steel 316
SealsNBR
