The diaphragm seal moves independently of the shoulder seal (the seal between the inside and outside of the valve). Using a manual or pneumatic actuator, you can easily open and close the seal. The cylindrical shape of the diaphragm, when squeezed into the sealing position, holds the seal—tested to an internal water pressure of up to 20 bar (varies depending on diaphragm material and actuator type) without leakage.
When the valve is closed, the unique CIP/SIP “behind-the-seat flow path” can be created if you add a CIP or SIP port. This flow path makes it easy to steam or clean the valve while the valve is closed. This allows for validated aseptic and sterile system connections and transfers to be performed. Combined these features save time and money by reducing maintenance time, improving performance with a less restrictive flow path.
- Fully traceable materials – Valves are made from fully traceable materials, regardless of the type of alloy you choose, ensuring they meet your local standards and codes.
- Long-lasting surface finish – They are fully machined, electropolished and passivated as standard, giving you a consistent, long-lasting surface finish.
- Saves you time and money – Our valves are designed to save you time and money. Changing a diaphragm only takes seconds, making your valves simple to inspect, clean and use
- Quality you can rely on – We inspect every valve - not just a representative sample. Each valve has passed stringent quality tests at every stage of production.
Challenging conventional design
The design of the basic weir-style diaphragm valve seal presents a number of issues for process engineers working in the biotechnology and pharmaceutical industry. In typical configurations, a weir in the valve body rises in a fluid path and when the valve is closed, the diaphragm meets the weir to shut off the flow. While a simple technology intended to reduce turbulence and shear, weir-style valves present a number of issues, for example in upstream processing applications they can be difficult to install, prone to leaks, and increase the potential of product contamination.
In traditional weir valves, a seal is made by placing a diaphragm between the mating faces of the valve body and actuator. This assembly is then held together with a set of nuts and bolts. The valve bodies are made from stainless steel due to its outstanding chemical compatibility outstanding corrosion resistance when exposed to repeated clean-in-place (CIP) and steam-in-place (SIP) cycles.
Product range
-

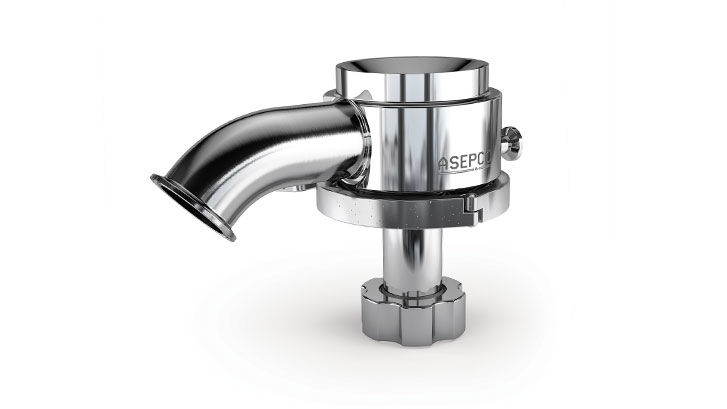

Diaphragm tank valves
Our family of tank diaphragm valves
-

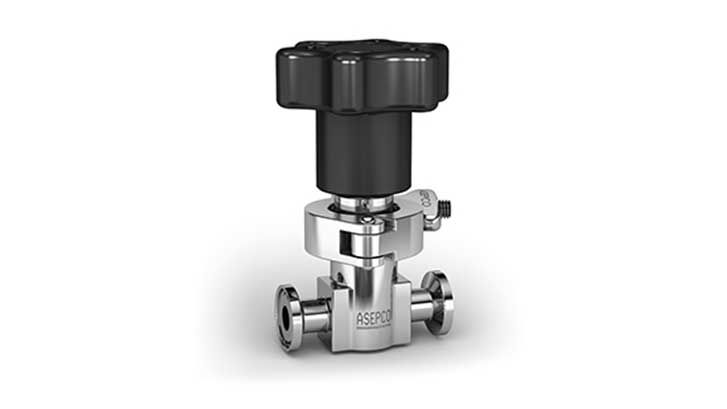

Diaphragm inline valves
Our family of inline diaphragm valves
-
Sample valves
Tank sampling valves that allow truly representative sampling of your process fluid.
-
Diaphragms for aseptic valves used in biotechnology
A range of diaphragms that all meet Class VI standards and are FDA CFR 177.2600 compliant.
-

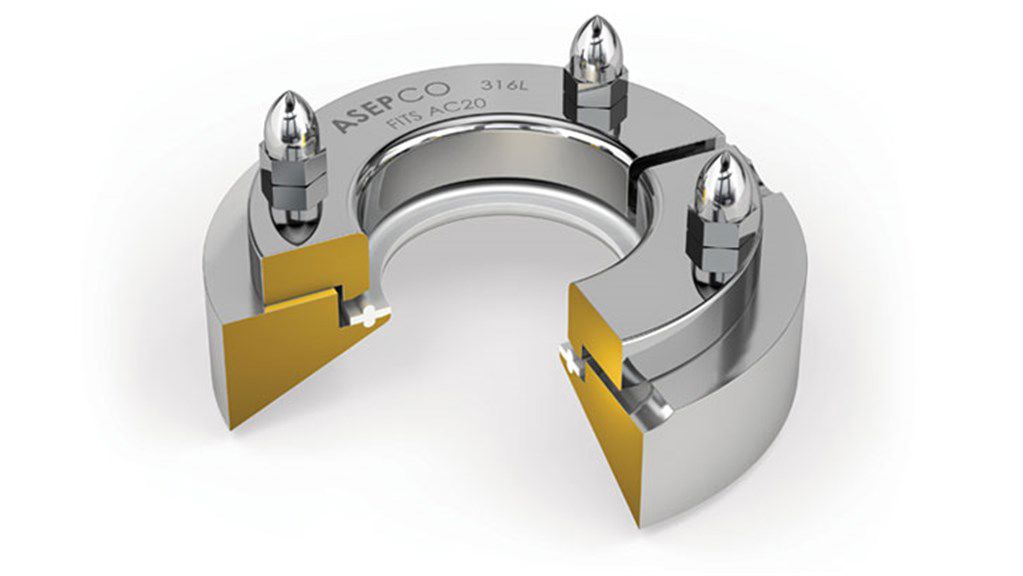

Aseptic connectors
ASEPCO's range of aseptic connectors used in biotechnology
-
Valve actuators
Choose the actuator to suit your application.
