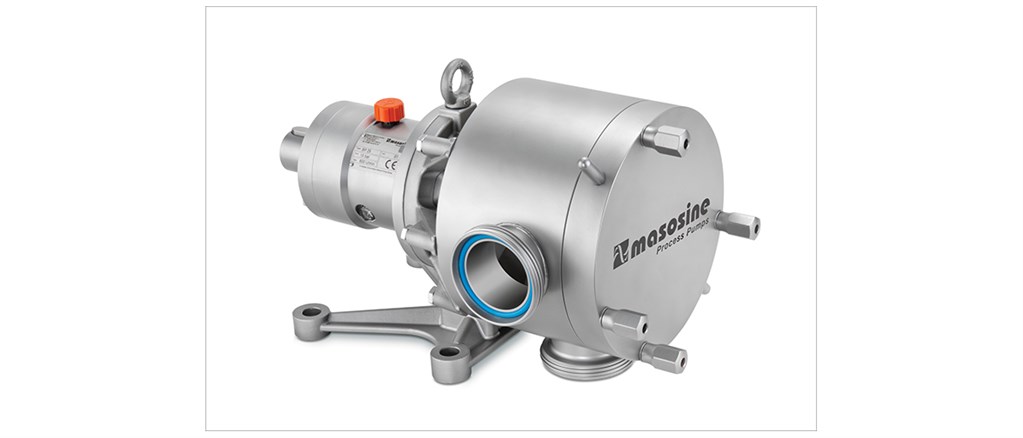

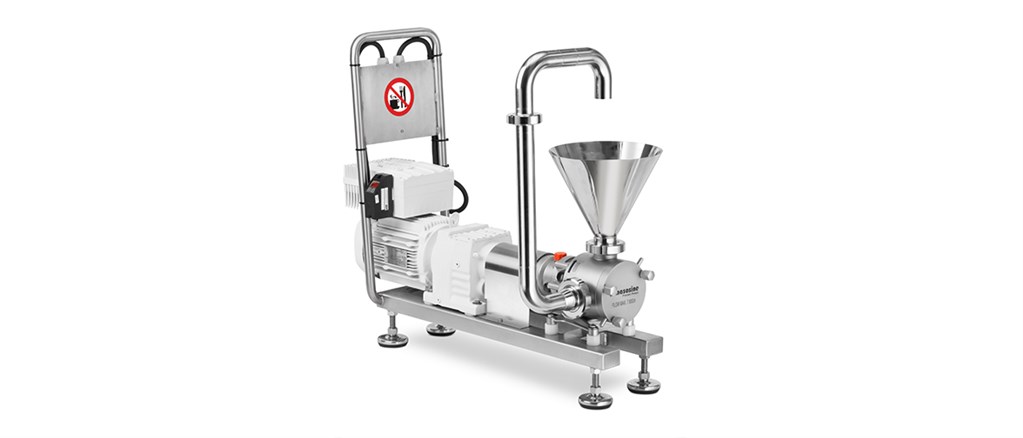

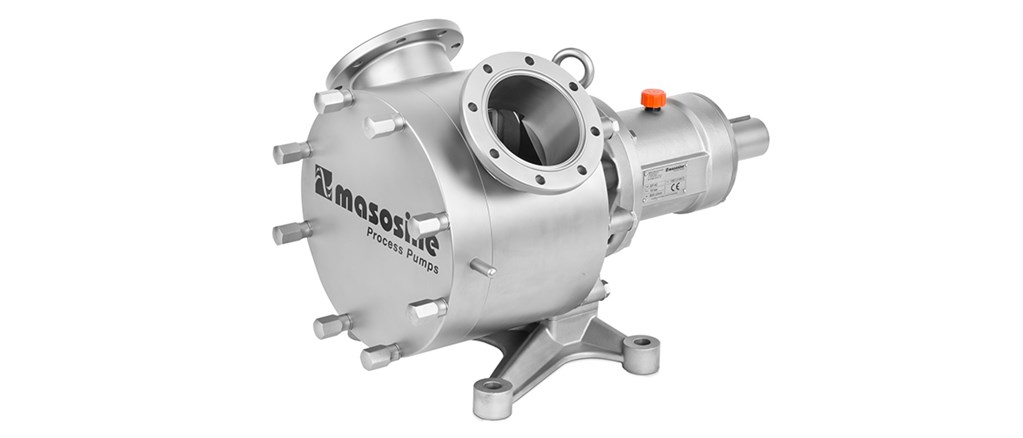

SPS process pumps

SPS pumps delivers a low shear, gentle pumping action that safely transfers delicate products without risk of degradation.

Suitable for industrial applications up to 15 bar pressure at flows up to 99,000 L/h SPS is able to transfer products with viscosities from 1 cP to 8 million cP with powerful suction up to 0.85 bar.

Capable of handling soft solids safely up to 60 mm, maintaining end product quality and delivering high yield rates.

Maintenance takes minutes and can be performed in-place by a line operative. SPS series pumps have 20 years warranty on housing and front cover.

Features and benefits

Low shear transfer pump, with flow up to 99000 L/h at pressures up to 15 bar
Superior viscous handling
Consistent flow with high suction capability up to 0.85 bar
Flexible configuration of housing, nozzle type, size orientation, drive and baseplate
Hygienic CIP and SIP capability
FDA and EC 1935/2004 compliance
Operating temperatures up to 180 °C
20-year guarantee on front cover and pump housing

Technical summary

Max. flow rate	99000 L/h
Max. flow rate	434.2 USGPM
Volume per revolution	0.08 - 2.75 L
Volume per revolution	0.021 - 0.724 USG
Max. particle size	10 - 60 mm
Max. particle size	0.39 - 2.36 in
Standards	ATEX
Certification and compliance	EC 1935/2004, FDA

Technical Summary table lists features available within the range. See ‘Specifications’ tab for model specific information.

SPS 100 performance

SPS 200 performance

SPS 250 performance

SPS 300 performance

SPS 400 performance

SPS 500 performance

SPS 600 performance

SPS 600L performance

Technical specifications

	SPS 100	SPS 200	SPS 250	SPS 300	SPS 400	SPS 500	SPS 600	SPS 600L
Max. flow rate	4800 L/h	7800 L/h	11520 L/h	18000 L/h	41760 L/h	69120 L/h	99000 L/h	99000 L/h
Max. flow rate	21.1 USGPM	34.2 USGPM	50.5 USGPM	78.9 USGPM	183.2 USGPM	303.2 USGPM	434.2 USGPM	434.2 USGPM
Volume per revolution	0.08 L	0.13 L	0.24 L	0.5 L	1.16 L	1.92 L	2.75 L	2.75 L
Volume per revolution	0.021 USG	0.034 USG	0.063 USG	0.132 USG	0.305 USG	0.505 USG	0.724 USG	0.724 USG
Max. particle size	10 mm	20 mm	22 mm	30 mm	48 mm	50 mm	60 mm	60 mm
Max. particle size	0.39 in	0.79 in	0.87 in	1.18 in	1.89 in	1.97 in	2.36 in	2.36 in
Suction pressure	85% of a vacuum	85% of a vacuum	85% of a vacuum	85% of a vacuum	85% of a vacuum	85% of a vacuum	85% of a vacuum	85% of a vacuum
Max. operating speed	1000 rpm	1000 rpm	800 rpm	600 rpm	600 rpm	600 rpm	600 rpm	600 rpm
Max. operating pressure	10 bar	10 bar	15 bar	15 bar	15 bar	15 bar	15 bar	10 bar
Max. operating pressure	145 psi	145 psi	217 psi	217 psi	217 psi	217 psi	217 psi	145 psi
Operating temperature range	-20 °C to 180 °C	-20 °C to 180 °C	-20 °C to 180 °C	-20 °C to 180 °C	-20 °C to 180 °C	-20 °C to 180 °C	-20 °C to 180 °C	-20 °C to 180 °C
Operating temperature range	-4 °F to 356 °F	-4 °F to 356 °F	-4 °F to 356 °F	-4 °F to 356 °F	-4 °F to 356 °F	-4 °F to 356 °F	-4 °F to 356 °F	-4 °F to 356 °F
Standards	ATEX	ATEX	ATEX	ATEX	ATEX	ATEX	ATEX	ATEX
Certification and compliance	EC 1935/2004, FDA	EC 1935/2004, FDA	EC 1935/2004, FDA	EC 1935/2004, FDA	EC 1935/2004, FDA	EC 1935/2004, FDA	EC 1935/2004, FDA	EC 1935/2004, FDA
Port orientation	Various options to meet your requirements	Various options to meet your requirements	Various options to meet your requirements	Various options to meet your requirements	Various options to meet your requirements	Various options to meet your requirements	Various options to meet your requirements	Various options to meet your requirements
Port type	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC	Flange, Milk fitting, RJT, SMS, TC
Shaft diameter	18 mm	28 mm	28 mm	45 mm	50 mm	50 mm	65 mm	65 mm
Shaft diameter	0.71 inch	1.1 inch	1.1 inch	1.77 inch	1.97 inch	1.97 inch	2.56 inch	2.56 inch
Shaft height	2.83 inch	3.74 inch	5.75 inch	5.91 inch	7.68 inch	9.25 inch	9.25 inch	9.25 inch
Shaft height	72 mm	95 mm	146 mm	150 mm	195 mm	235 mm	235 mm	235 mm

SPS 100 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 100	735	28.9	860	33.9	292	11.5	800	31.5	89	3.5	210	8.3	97	3.8	121	4.8	300	11.8	330	13.0	202	8.0	232	9.1

SPS 200 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 200	740	29.1	960	37.8	345	13.6	800	31.5	95	3.7	210	8.3	106	4.2	137	5.4	314	12.4	344	13.5	208	8.2	238	9.4

SPS 250 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 250	872	34.3	1091	43	428	16.9	800	31.5	114	4.5	210	8.3	126	4.96	156	6.14	375	14.8	445	17.5	250	9.84	290	11.4

SPS 300 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 300	985	38.8	1382	54.4	492	19.4	1100	43.3	128	5.0	280	11.0	156	6.1	182	7.2	426	16.8	490	19.3	270	10.6	310	12.2

SPS 400 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 400	1235	48.6	1805	71.1	619	24.4	1300	51.2	169	6.7	380	15.0	192	7.6	208	8.2	505	19.9	567	22.3	318	12.5	358	14.1

SPS 500 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 500	1300	51.2	1640	64.6	659	25.9	1300	51.2	131	5.16	380	15	212	8.35	235	9.25	560	22	623	24.5	348	13.7	388	15.3

SPS 600 dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 600	1755	69.1	2200	86.6	771	30.4	1400	55.1	319	12.6	400	15.8	274	10.8	274	10.8	630	24.8	700	27.6	353	13.9	433	17.1

SPS 600L dimensions

Model	L				L1		L2		S1		B		B1				H1				H2
	min.		max.										min.		max.		min.		max.		min.		max.
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
SPS 600L	1302	51.3	2100	82.7	686	27.0	1400	55.1	234	9.2	400	15.8	270	10.6	274	10.8	675	26.2	757	29.8	390	13.4	487	19.2

Materials of construction

Housing	Stainless steel 1.4404, Stainless steel 316L
Bearing frame	Stainless steel 1.4301, Stainless steel 304
Rotor	Stainless steel 1.4404, Stainless steel 316L
Gate and liners	Polyamide
Seals/gaskets	EPDM, FFKM, FKM, NBR, PTFE
